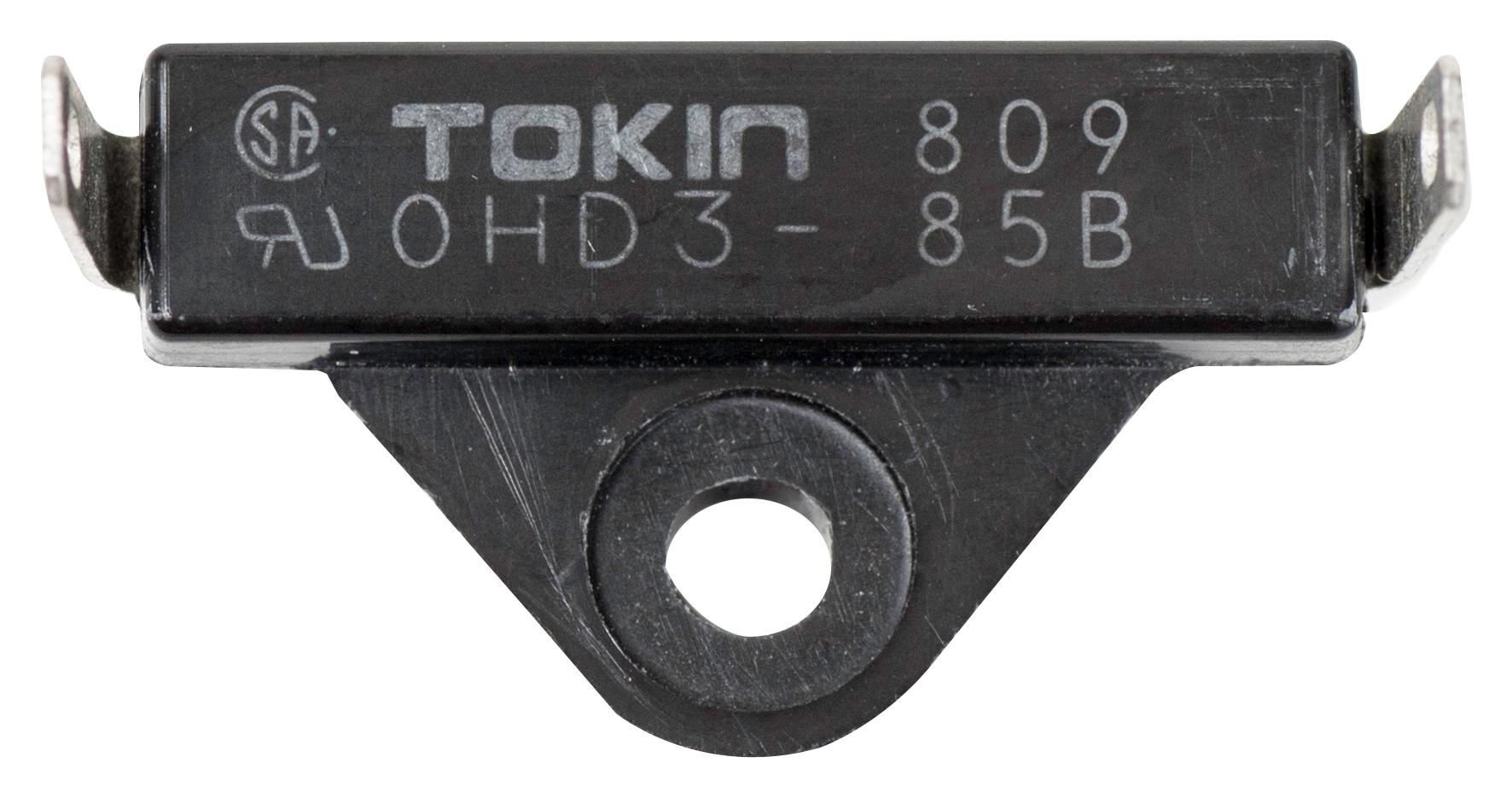

KEMET OHD390M Thermal Reed Switch
The KEMET OHD thermal reed switch features radial tab leads, high reliability, and fast response, with a 90°C switching temperature. Designed for durability and environmental resilience, it operates within a temperature range of -20°C to +150°C and offers a contact resistance of 150 milliohms. With UL, CSA, and TUV certifications, this switch supports voltages up to 2500V DC and 110V AC, making it suitable for industrial applications requiring precise thermal switching, long operational life, and high environmental durability.
KEMET OHD390M Thermal Reed Switch Specifications:
- Switching Temperature: 90°C ±5°C
- Temperature Range: -20°C to +150°C
- Dimensions: Length 27mm max, Height 6mm
- Contacts: Make type, 0.3 Amps AC/DC max
- Voltage DC: 2500 VAC/1 min, 3000 VAC/1 sec
- Voltage AC: 110 VAC max
- Contact Resistance: 150 mOhms max
- Max Power: 6 W (AC/DC)
- Max Voltage: 110 V (AC/DC)
- Differential Temperature: 10°C max
- Lead Type: Radial tab
- Certifications: UL, CSA, TUV, RoHS, REACH
- Packaging: Tray or box, 1000-3000 units
- Weight: 28g
Buy the KEMET OHD – Reliable Thermal Switch for Industrial Applications
Purchase the KEMET OHD thermal reed switch online now to ensure reliable thermal switching for industrial environments. Designed with radial tab leads, it offers high temperature accuracy at 90°C, excellent environmental durability, and fast response times. Certifications including UL, CSA, and TUV guarantee quality and safety. With a voltage capacity of up to 2500V DC and 110V AC, it's perfect for applications demanding long operational life and stability. Order now for fast delivery and consistent performance in your sensors or control systems.
Get KEMET OHD thermal reed switch today—built for precision, durability, and high-temperature reliability.
Frequently Asked Questions
Where can I buy KEMET OHD390M?
You can click on the BUY or RFQ button to purchase OHD390M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part OHD390M?
You can download the OHD390M datasheet or visit the KEMET website for support.
Who is the manufacturer of OHD390M?
KEMET
