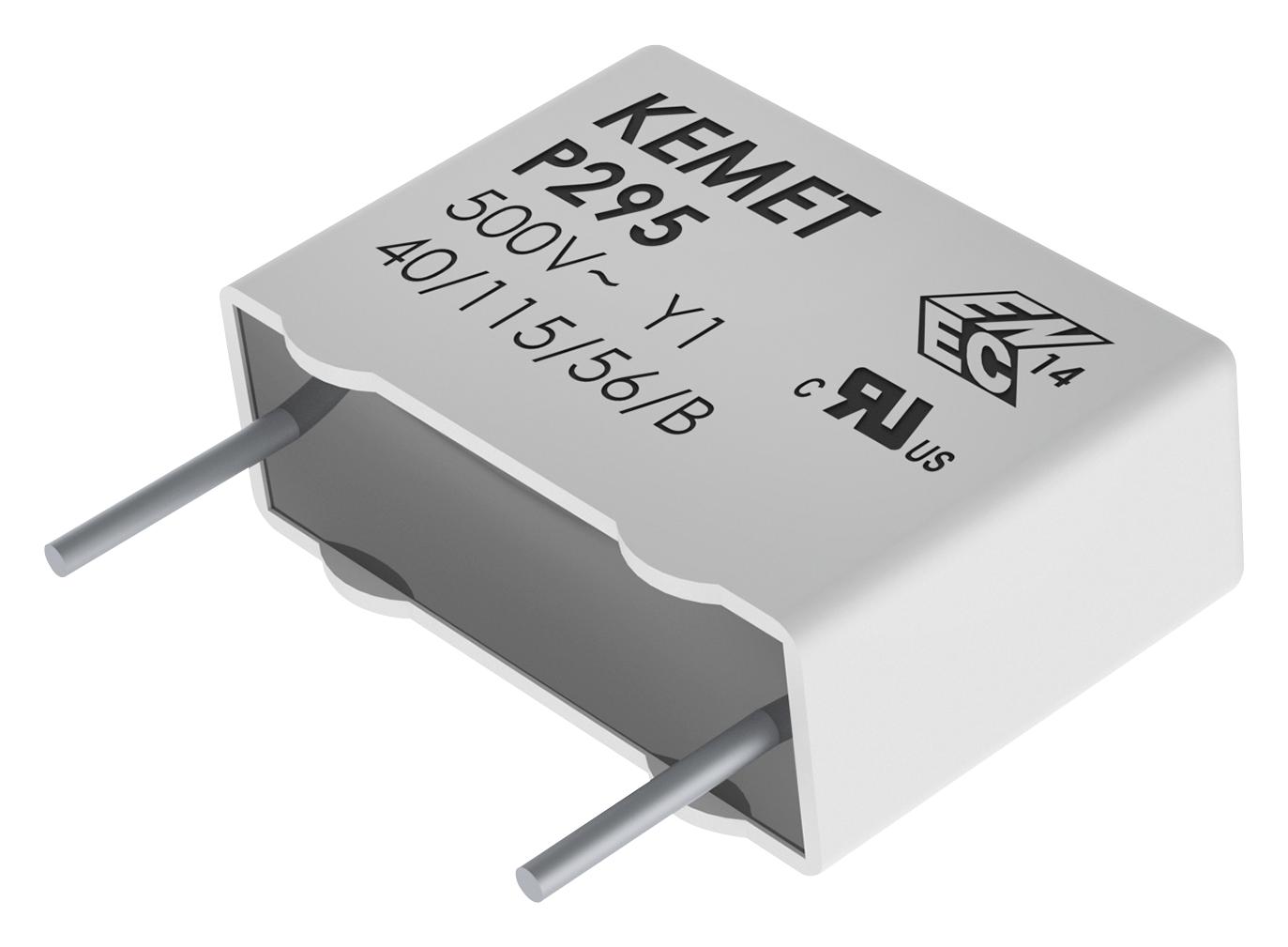

KEMET P295BE561M500A Safety Capacitor
The P295 Series comprises multilayer metallized paper safety capacitors encapsulated in UL 94 V-0 flame-retardant material, suitable for bridging, insulation, and high-voltage applications. They withstand voltage testing up to 4,000 VAC for 60 seconds, are approved by ENEC, UL, cUL, and CQC, and operate at a rated voltage of 500 VAC with Capacitance of 560 pF, tolerances of ±20%. Designed for reliable operation from -40°C to +115°C in various climatic conditions, these capacitors feature high dV/dt, excellent self-healing, stability, and resistance to ionization, making them ideal for electrical safety and filtering roles.
KEMET P295BE561M500A Safety Capacitor Specifications:
- Capacitance: 560 pF
- Capacitance Tolerance: ±20%
- Rated Voltage AC: 500 VAC
- Rated Voltage DC: 1500 VDC
- Temperature Range: -40°C to +115°C
- Dimensions: Length 18mm MAX, Height 12.5mm MAX, Thickness 5.5mm MAX
- Lead Spacing: 15.0mm
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- DV/dt Capability: High
- Construction: Multilayer metallized paper, impregnated for stability
- Safety Standards: UL 94 V-0, ENEC, UL, cUL, CQC approved
- Voltage withstand: 4000 VAC, 60 seconds
Buy the KEMET Series P295 Safety Capacitor: P295BE561M500A
Purchase the KEMET P295BE561M500A safety capacitor online now to ensure reliable insulation and filtering for high-voltage applications. These multilayer metallized paper capacitors are designed to withstand voltage testing up to 4,000 VAC for 60 seconds, making them suitable for bridging and insulation. With a capacitance of 560 pF and a tolerance of ±20%, they operate reliably from -40°C to +115°C under various climatic conditions. Compliant with RoHS standards and approved by major safety agencies, these capacitors feature high dV/dt, excellent self-healing properties, and stability, ensuring long-lasting safety and performance in demanding electrical environments.
Get KEMET P295BE561M500A today—built for safety, high-voltage tolerance, and long-lasting reliability in electrical insulation applications.
Frequently Asked Questions
Where can I buy KEMET P295BE561M500A?
You can click on the BUY or RFQ button to purchase P295BE561M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BE561M500A?
You can download the P295BE561M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BE561M500A?
KEMET
