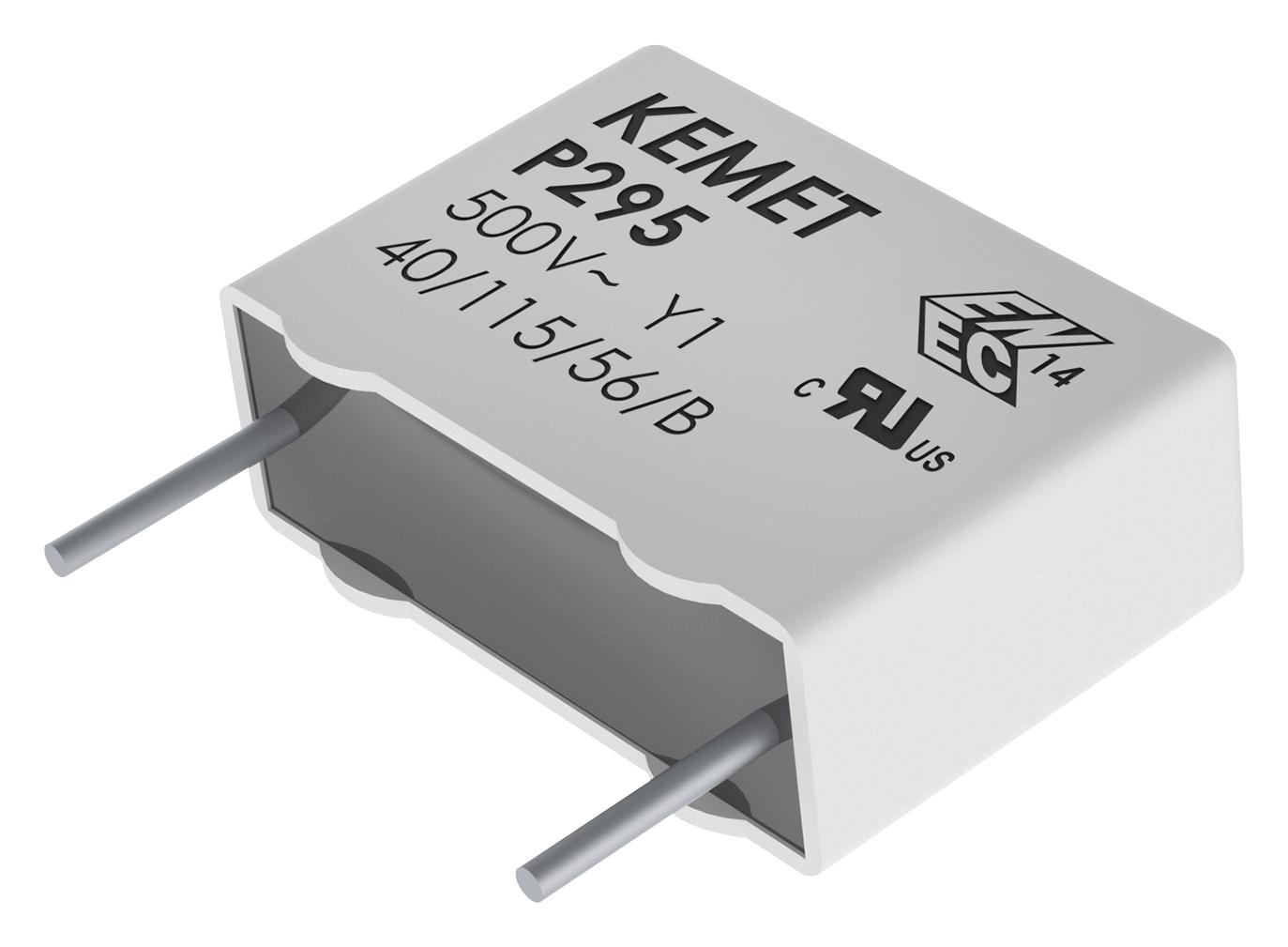

KEMET P295BL252M500A Safety Capacitor
The P295 Series features metallized paper multilayer capacitors designed for automotive safety and industrial applications. Encapsulated in self-extinguishing materials compliant with UL 94 V-0 standards, these capacitors withstand voltage tests up to 4,000 VAC for 60 seconds. Rated at 500 VAC (50/60 Hz) and operating within -40°C to +115°C, they offer excellent reliability, high dV/dt capabilities, and RoHS compliance. Suitable for bridging double insulation and safety circuits, they have lead spacing of 15 mm, a capacitance of 2500 pF with ±20% tolerance, and are UL, ENEC, cUL, and CQC approved, ensuring safety and durability.
KEMET P295BL252M500A Safety Capacitor Specifications:
- Capacitance: 2500 pF
- Capacitance Tolerance: ±20%
- Rated Voltage AC: 500 VAC (50/60 Hz)
- Rated Voltage DC: 1500 VDC
- Temperature Range: -40°C to +115°C
- Maximum Dimensions: Length 18mm, Height 14.5mm, Thickness 7mm
- Lead Spacing: 15mm
- Encapsulation: Self-extinguishing, UL 94 V-0 compliant
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Operating Frequency: SRF 31 MHz
- RoHS Compliant: Yes
- Safety Class: Y1
- Qualification: AEC-Q200
- Weight: 2.34g
Buy the KEMET Series P295 Safety Capacitor: P295BL252M500A
Purchase the KEMET P295 Series safety capacitor online and benefit from premium quality, reliable performance, and compliance with safety standards. This high-performance safety capacitor rated at 500 VAC and 2500 pF with a ±20% tolerance ensures durability in demanding industrial and automotive applications. Its UL 94 V-0 compliant self-extinguishing encapsulation offers protection against electrical faults while providing excellent high-voltage endurance and stability across a wide temperature range from -40°C to +115°C. Secure your supply chain today with fast online ordering and dependable delivery of this proven safety device.
Order your KEMET Series P295 safety capacitor today and ensure the highest reliability and safety standards in your automotive or industrial projects.
Frequently Asked Questions
Where can I buy KEMET P295BL252M500A?
You can click on the BUY or RFQ button to purchase P295BL252M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BL252M500A?
You can download the P295BL252M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BL252M500A?
KEMET
