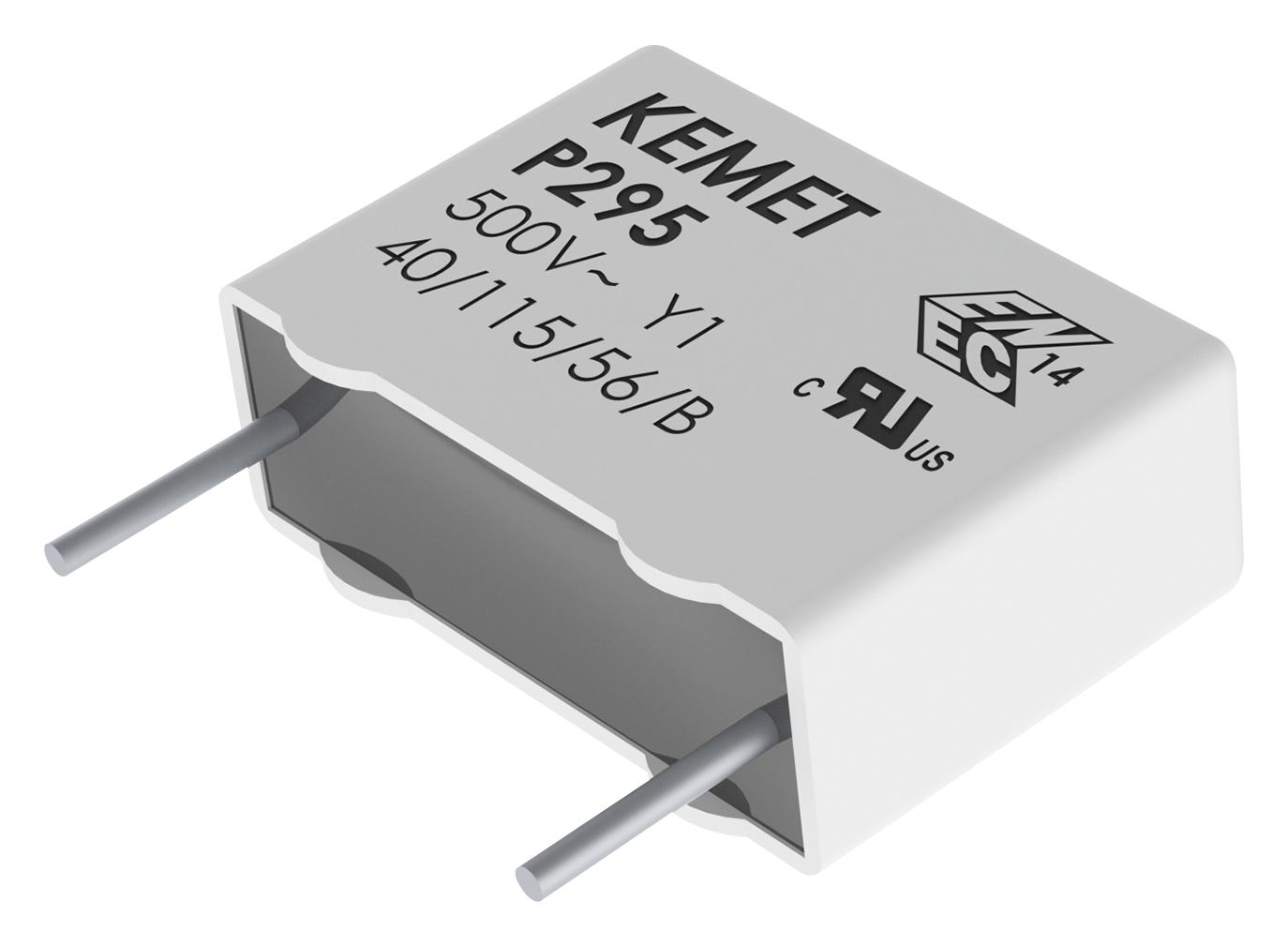

KEMET P295BQ472M500A Automotive capacitor
The P295BQ472M500A is a high-performance metallized paper film capacitor designed for automotive safety applications. With a capacitance of 4700 pF ±20%, it features a rated voltage of 500 VAC (Y1) and 1500 VDC, operating within a temperature range of -40°C to +115°C. Its radial style with wire leads ensures easy installation, and it complies with RoHS, AEC-Q200, and EMI safety standards. The capacitor has a low dissipation factor of 1.3% at 1kHz, dimensions of up to 18mm in length, 16mm in height, and 8.5mm in thickness, weighing 3.24 grams.
KEMET P295BQ472M500A Automotive capacitor Specifications:
- Capacitance: 4700 pF ±20%
- Voltage Rating: 500 VAC (Y1), 1500 VDC
- Temperature Range: -40°C to +115°C
- Dimensions: Max Length 18mm, Max Height 16mm, Max Thickness 8.5mm
- Dielectric: Metallized Paper
- Style: Radial with Wire Leads
- RoHS Compliant: Yes
- Safety Class: Y1
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Weight: 3.24 grams
- Lead Spacing: 15mm
- Packaging: Bulk, Bag
- Rated Temperature: 115°C
- Frequency: SRF= 22 MHz
Buy the Buy KEMET Capacitor Part Number P295BQ472M500A Online
Purchase the KEMET P295BQ472M500A capacitor online for automotive safety and EMI suppression. This high-voltage metallized paper capacitor offers 4700 pF capacitance, 500 VAC ratings, and excellent temperature stability. Easy to install with wire leads and compliant with RoHS and AEC-Q200 standards, it’s suitable for demanding automotive environments. With a dissipation factor of 1.3%, it provides reliable performance at -40°C to +115°C, making it an ideal choice for safety-critical electronic systems in vehicles.
Order your KEMET P295BQ472M500A high-voltage capacitor today and ensure your automotive safety and EMI performance with reliable quality.
Frequently Asked Questions
Where can I buy KEMET P295BQ472M500A?
You can click on the BUY or RFQ button to purchase P295BQ472M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BQ472M500A?
You can download the P295BQ472M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BQ472M500A?
KEMET
