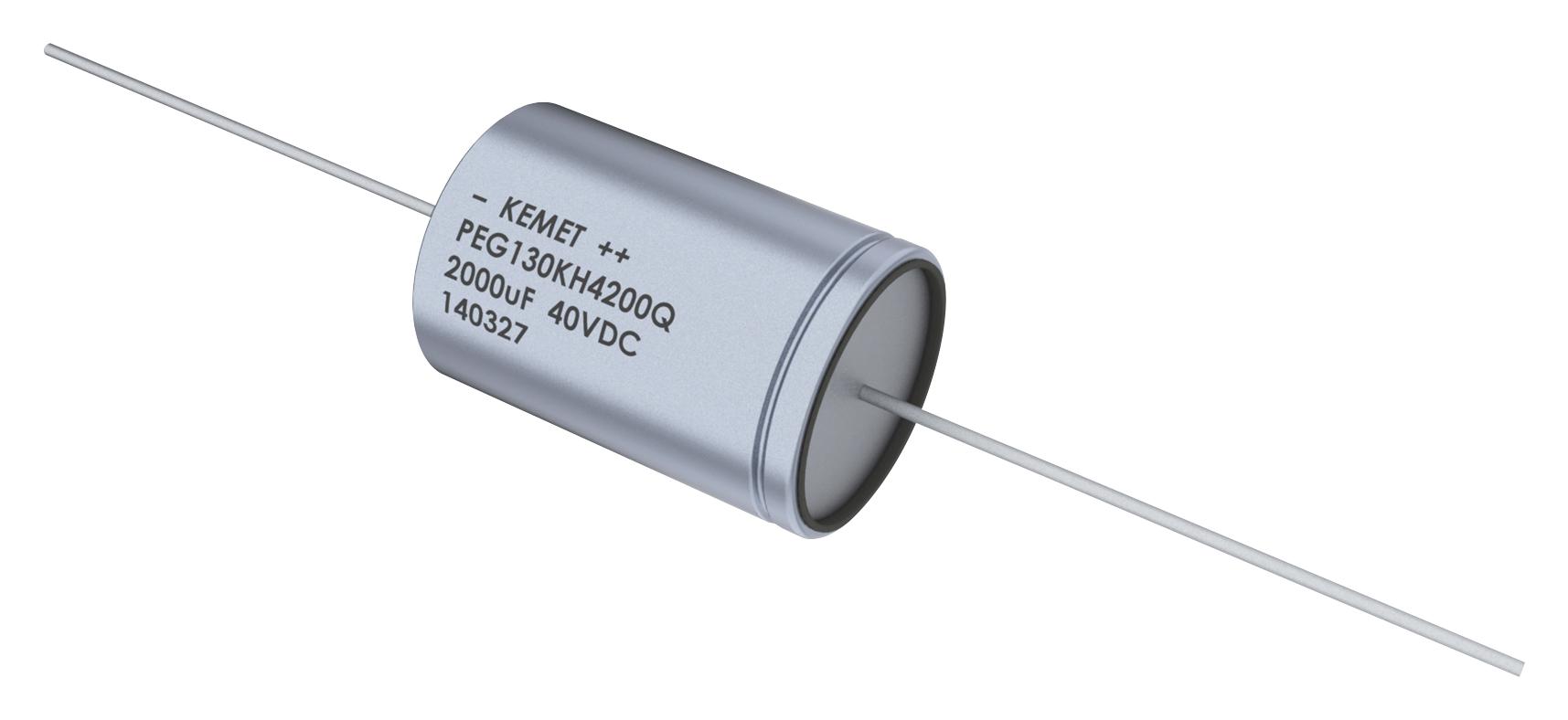

KEMET PEG130ML4180QL1 electrolytic capacitor
The PEG130 Series axial aluminum electrolytic capacitors from KEMET are high-performance components designed for long-lasting power electronic applications. Operating at 105°C, they feature a polarized welded construction with tinned copper leads, housed in a cylindrical aluminum can with a high purity aluminum lid and rubber gasket. Capacitances range from 900 to 6,300 microfarads with voltage ratings up to 63VDC. They offer a long operational life of up to 160,000 hours at 80°C, low ESR, minimal heat generation, and are suitable for LED power supplies, automotive, and low-voltage applications, ensuring reliability and efficiency.
KEMET PEG130ML4180QL1 electrolytic capacitor Specifications:
- Capacitance Range: 900 - 6,300 pF
- Rated Voltage: 25-63 VDC
- Operating Temperature: -40°C to +105°C
- Capacitance Tolerance: -10/+30% at 100 Hz / +20°C
- Operational Life: Up to 160,000 hours at 80°C
- Shelf Life: 5,000 hours at +105°C or 10 years at +40°C
- Leakage Current: 0.003 CV + 4.0 yA
- Vibration Resistance: 0.75mm displacement or 10g acceleration over 10-2000Hz
- ESR: Does not exceed 200% of initial value
- Maximum ESR at 100Hz: 1.72 - 2.18 ohms depending on capacitance and voltage
- Dimensions: Diameter varies 20-46mm, length 29-52mm, lead length 40mm (standard)
- Construction: Aluminum can, formed electrolytic oxide layer, impregnated with electrolyte, sealed with rubber gasket
Buy the KEMET Series PEG130 Electrolytic Capacitors: 900 to 6300UF, 25-63VDC
Purchase KEMET PEG130ML4180QL1 electrolytic capacitor online today and enjoy high electrical performance, extended operational life up to 160,000 hours, and low ESR. Designed for power supplies, automotive, and long-term electronics, this capacitor guarantees reliability and efficiency. With voltage ratings up to 63VDC and capacitance of 1,800 microfarads, it offers excellent stability, minimal heat generation, and durability in various demanding environments. Order now and ensure your electronic project benefits from top-tier quality and superior performance.
Buy KEMET PEG130ML4180QL1 now and experience unmatched reliability and performance with long lifespan and low ESR for demanding power applications.
