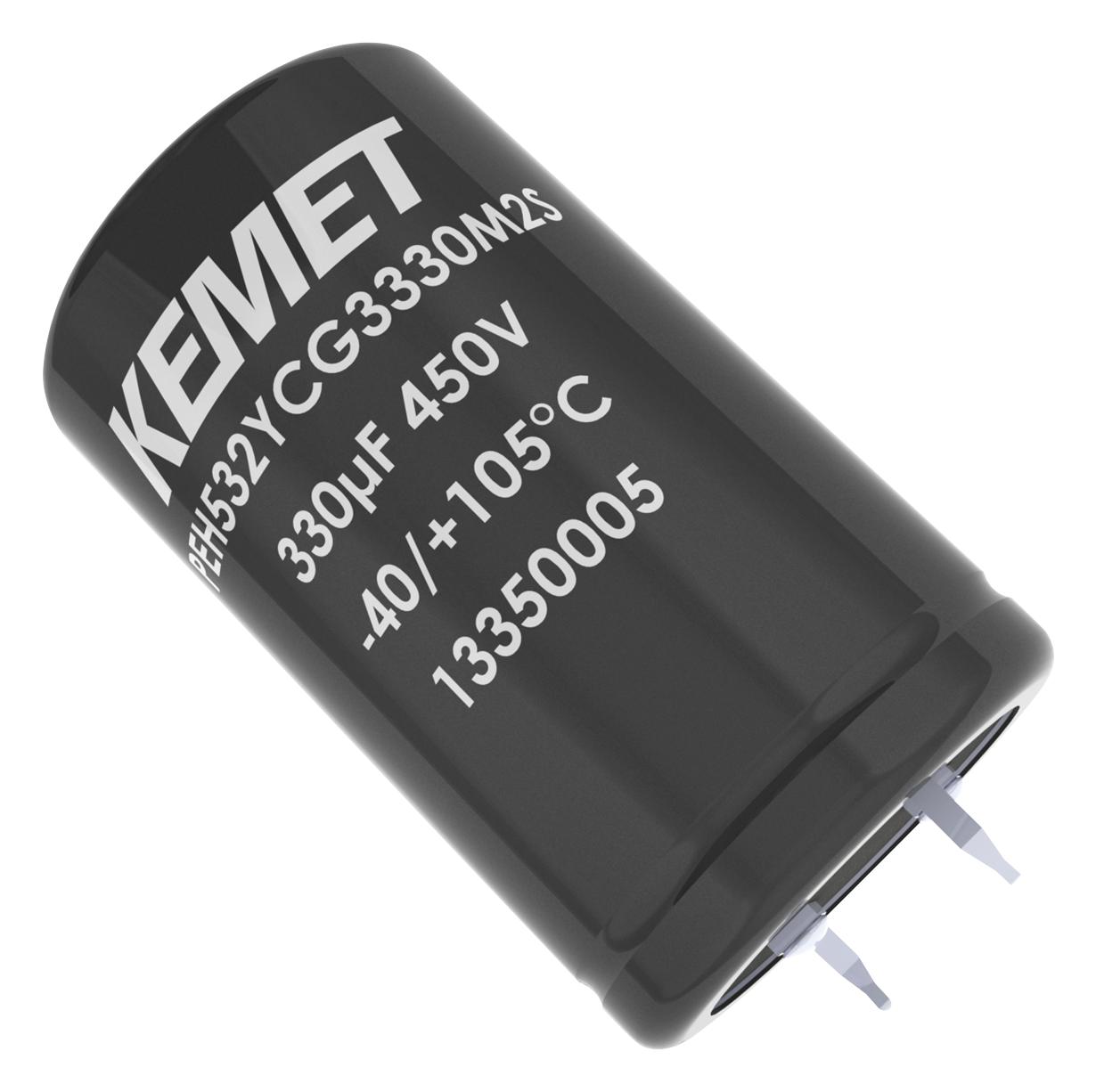

KEMET PEH532VDG3680M2 Aluminum Capacitor
The PEH532 series are reliable snap-in aluminum electrolytic capacitors rated for operation at +105°C, designed for high ripple current and low ESR. Suitable for power supply, drive, welding, and UPS applications, these capacitors feature robust construction, excellent stability, and long life. They are manufactured with etched anode foils, impregnated with electrolyte, and housed in aluminum cans with safety vents and insulation sleeves. Their design ensures minimal leakage current, stability under vibration, and extended shelf life, making them ideal for demanding industrial electronics requiring compact, durable components.
KEMET PEH532VDG3680M2 Aluminum Capacitor Specifications:
- Capacitance Range: 68 - 27,000 pF
- Rated Voltage: 35 ~ 450 VDC
- Operating Temperature: -40°C to +105°C
- Leakage Current: ≤ 0.003 CV (μA)
- Shelf Life: Over 3 years at 40°C, 0V
- Ripple Current at +105°C varies with capacitance, up to 1500A for large values
- ESR: Max 110 mΩ at 100Hz, 93 mΩ at 100kHz
- Charge Endurance: 2000 hours at +105°C
- Vibration: 0.75 mm displacement or 10 g max acceleration
- Mechanical Mounting: Any position, with insulation sleeve, voltage proof 2.5 kVDC
- Construction: Etched aluminum foil, impregnated electrolyte, sealed in aluminum can
Buy the KEMET PEH532 – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Experience superior reliability with KEMET aluminum capacitors designed for demanding industrial electronic applications. Rated at +105°C, these capacitors support high ripple currents and feature low ESR for optimal performance in power supplies, UPS systems, and motor drives. Their robust construction ensures extended lifespan, excellent stability, and resistance to vibration. With a compact snap-in design, they are easy to mount and suited for any orientation. Purchase KEMET PEH532 capacitors online today for dependable, high-performance power electronic solutions that meet your industrial needs efficiently.
Get KEMET PEH532 capacitors today—built for high ripple current and long-lasting durability in demanding power electronics.
Frequently Asked Questions
Where can I buy KEMET PEH532VDG3680M2?
You can click on the BUY or RFQ button to purchase PEH532VDG3680M2 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PEH532VDG3680M2?
You can download the PEH532VDG3680M2 datasheet or visit the KEMET website for support.
Who is the manufacturer of PEH532VDG3680M2?
KEMET
