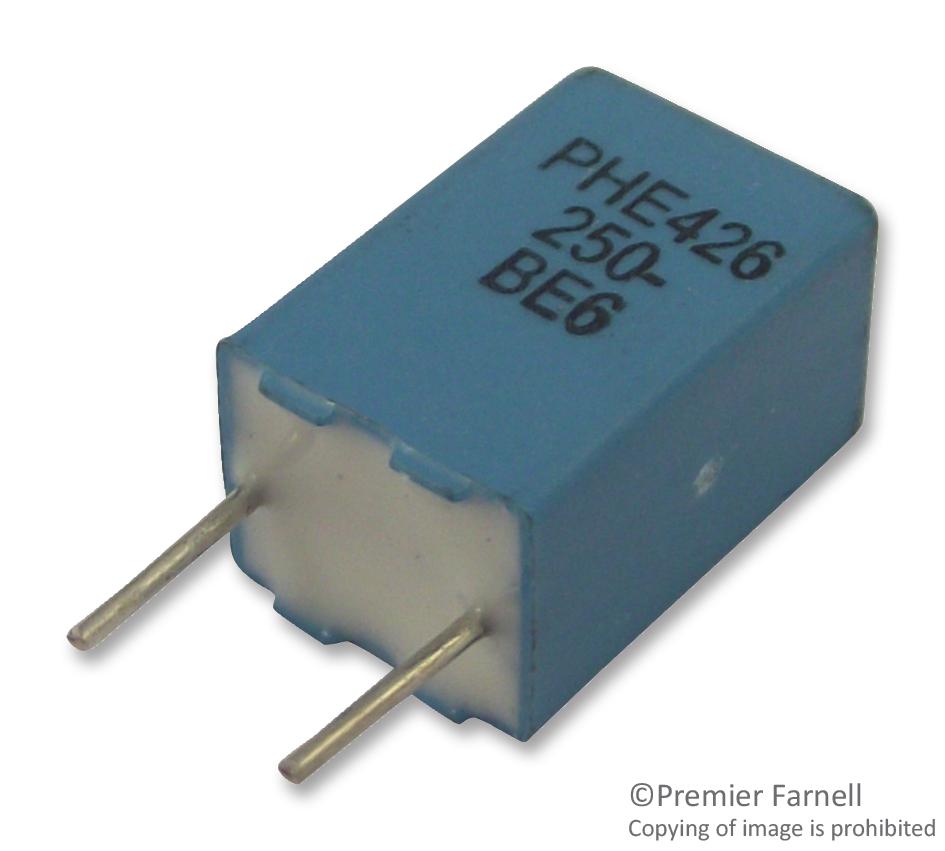

KEMET PHE426HJ6100JR05 Film Capacitor
The PHE426HJ6100JRO5 is a metallized polypropylene film capacitor designed for general purpose applications with pulse handling capabilities. It features a capacitance of 0.1 uF, 5% tolerance, and a voltage rating of 250 VDC, suitable for various electronic circuits. With a maximum size of 11mm in height and 7.2mm in diameter, it ensures reliable performance in temperature ranges from -55°C to +105°C. The capacitor's lead configuration is wire leads, and it is RoHS compliant, offering insulation resistance of 100 GOhms and a dissipation factor of 0.05% at 1kHz.
KEMET PHE426HJ6100JR05 Film Capacitor Specifications:
- Capacitance: 0.1 uF
- Capacitance Tolerance: 5%
- Voltage DC: 250 VDC
- Voltage AC: 160 VAC
- Size: Diameter 7.2mm MAX, Height 11mm MAX
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.05% at 1kHz
- Insulation Resistance: 100 GOhms
- Max dVidt: 40 Vius
- Inductance: 6 nH
- Lead: Wire Leads
- RoHS Compliant: Yes
- Package: Bulk, Bag
- Quantity: 1000 units
Buy the YAGEO Series PHE426 Film Capacitor: PHE426HJ6100JRO5
Purchase the YAGEO Series PHE426HJ6100JRO5 film capacitor online today for your electronic applications. This high-quality, metallized polypropylene capacitor offers 0.1uF capacitance, 250VDC voltage rating, and a temperature range from -55°C to +105°C. Compact and RoHS compliant, it features wire leads for easy installation and provides excellent insulation resistance of 100 GOhms. Ideal for pulse and general purpose use in various electronic devices, ensuring durable and reliable operation in demanding environments. Buy now for fast delivery and competitive pricing.
Order your YAGEO Series PHE426HJ6100JRO5 film capacitor today and ensure reliable performance for your electronic project with efficient energy handling.
Frequently Asked Questions
Where can I buy KEMET PHE426HJ6100JR05?
You can click on the BUY or RFQ button to purchase PHE426HJ6100JR05 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE426HJ6100JR05?
You can download the PHE426HJ6100JR05 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE426HJ6100JR05?
KEMET
