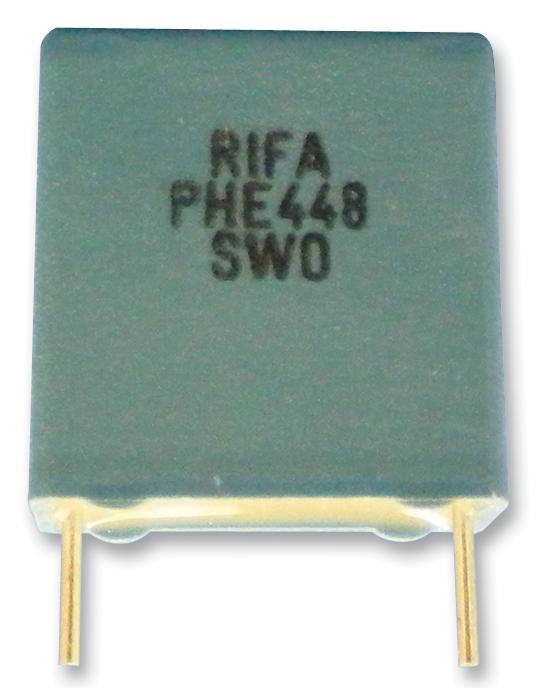

KEMET PHE448SB4100JR06 Film Capacitor
The PHE448SB4100JR06 is a versatile film, film/foil polypropylene capacitor suitable for general-purpose applications. It features a capacitance of 1000 pF with a 5% tolerance, and a voltage rating of 2000 VDC, making it ideal for pulse and high-voltage environments. Designed with wire leads and radial style, it operates within a temperature range of -55°C to +105°C. Its compact dimensions and RoHS compliance ensure reliable performance in demanding electronic circuits, especially where high insulation resistance and low inductance are required.
KEMET PHE448SB4100JR06 Film Capacitor Specifications:
- Capacitance: 1000 pF
- Capacitance Tolerance: 5%
- Voltage DC: 2000 VDC, 1480 VDC at 105°C
- Operating Temperature Range: -55°C to +105°C
- Insulation Resistance: 30 GOhms
- Dimensions: Length 18mm ±0.5mm, Height 10.5mm ±0.5mm, Width 5.5mm ±0.5mm, Lead Spacing 15mm ±0.4mm
- RoHS Compliant: Yes
- Features: Pulse, Wire Leads, Radial Style
- Dissipation Factor: 0.03% at 1kHz
- Max dVidt: 25000 V/us
- Inductance: 6 nH
- Material: Film/Foil Polypropylene
- Packaging: Bulk, Bag, 1000 pieces
Buy the KEMET Series PHE448 Film Capacitor: PHE448SB4100JR06
Experience the reliability and high performance of the KEMET PHE448SB4100JR06 film capacitor, designed for high-voltage pulse applications. With a 1000 pF capacitance and 2000 VDC rating, it offers exceptional insulation resistance and low inductance, making it ideal for demanding electronic systems. Its compact radial design with wire leads ensures easy installation and long-lasting durability. Suitable for a wide range of industrial electronics, this capacitor guarantees optimal performance in high-temperature environments and complies with RoHS standards. Buy online today to enhance your electronic project's efficiency and reliability.
Get KEMET PHE448SB4100JR06 today—built for high-voltage applications and reliable pulse performance.
Frequently Asked Questions
Where can I buy KEMET PHE448SB4100JR06?
You can click on the BUY or RFQ button to purchase PHE448SB4100JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE448SB4100JR06?
You can download the PHE448SB4100JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE448SB4100JR06?
KEMET
