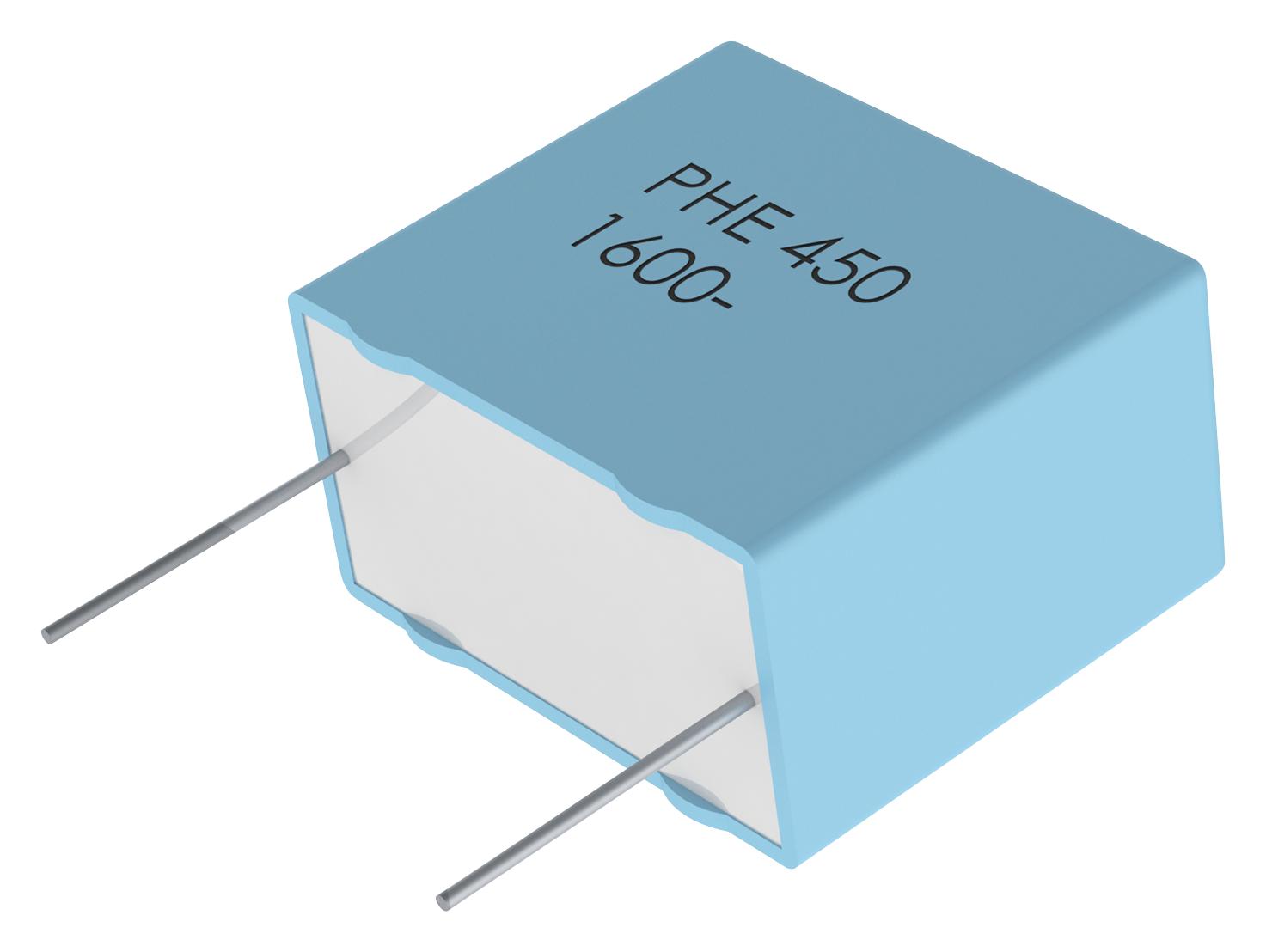

KEMET PHE450KB5330JR17 Polypropylene Film Capacitor
The PHE450KB5330JR17 is a double metallized polypropylene film capacitor designed for general purpose use. It features a radial style with wire leads, 0.033 uF capacitance, 5% tolerance, and a 400 VDC voltage rating at 85°C. The capacitor is RoHS compliant and suitable for pulse applications, offering a dissipation factor of 0.03% at 1kHz and an insulation resistance of 100 GOhms. Its compact dimensions include 18mm length, 10.5mm height, and 5.5mm thickness, making it ideal for various electronic circuits requiring reliable film capacitance.
KEMET PHE450KB5330JR17 Polypropylene Film Capacitor Specifications:
- Capacitance: 0.033 uF
- Capacitance Tolerance: 5%
- Voltage DC: 400 VDC at 85°C, 296 VDC at 105°C
- Rated Voltage: 400 VDC
- Temperature Range: -55°C to +105°C
- Dimensions: Length 18mm ±0.5mm, Height 10.5mm ±0.5mm, Thickness 5.5mm ±0.5mm
- Dielectric: Double Metallized Polypropylene
- Style: Radial with wire leads
- Dissipation Factor: 0.03% at 1kHz
- Insulation Resistance: 100 GOhms
- RoHS Compliant: Yes
- Packaging: Bulk, 800 units per bag
- Maximum Voltage: 250 VAC
- Inductance: 6nH
- Package Length: 17mm -imm
- Lead Spacing: 15mm
Buy the Buy KEMET Capacitors Part Number PHE450KB5330JR17 Online
Purchase the KEMET polypropylene film capacitor PHE450KB5330JR17 online and enjoy reliable performance for your electronic projects. This high-quality capacitor features 0.033 uF capacitance, 400 VDC voltage rating at 85°C, and is suitable for pulse applications and general circuit use. Its radial design with wire leads ensures easy installation, while the compact dimensions make it versatile for various applications. With RoHS compliance, durable construction, and excellent insulation resistance, this capacitor is ideal for engineers seeking dependable components for demanding electronic systems.
Get KEMET PHE450KB5330JR17 today—built for pulse resistance and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy KEMET PHE450KB5330JR17?
You can click on the BUY or RFQ button to purchase PHE450KB5330JR17 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450KB5330JR17?
You can download the PHE450KB5330JR17 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450KB5330JR17?
KEMET
