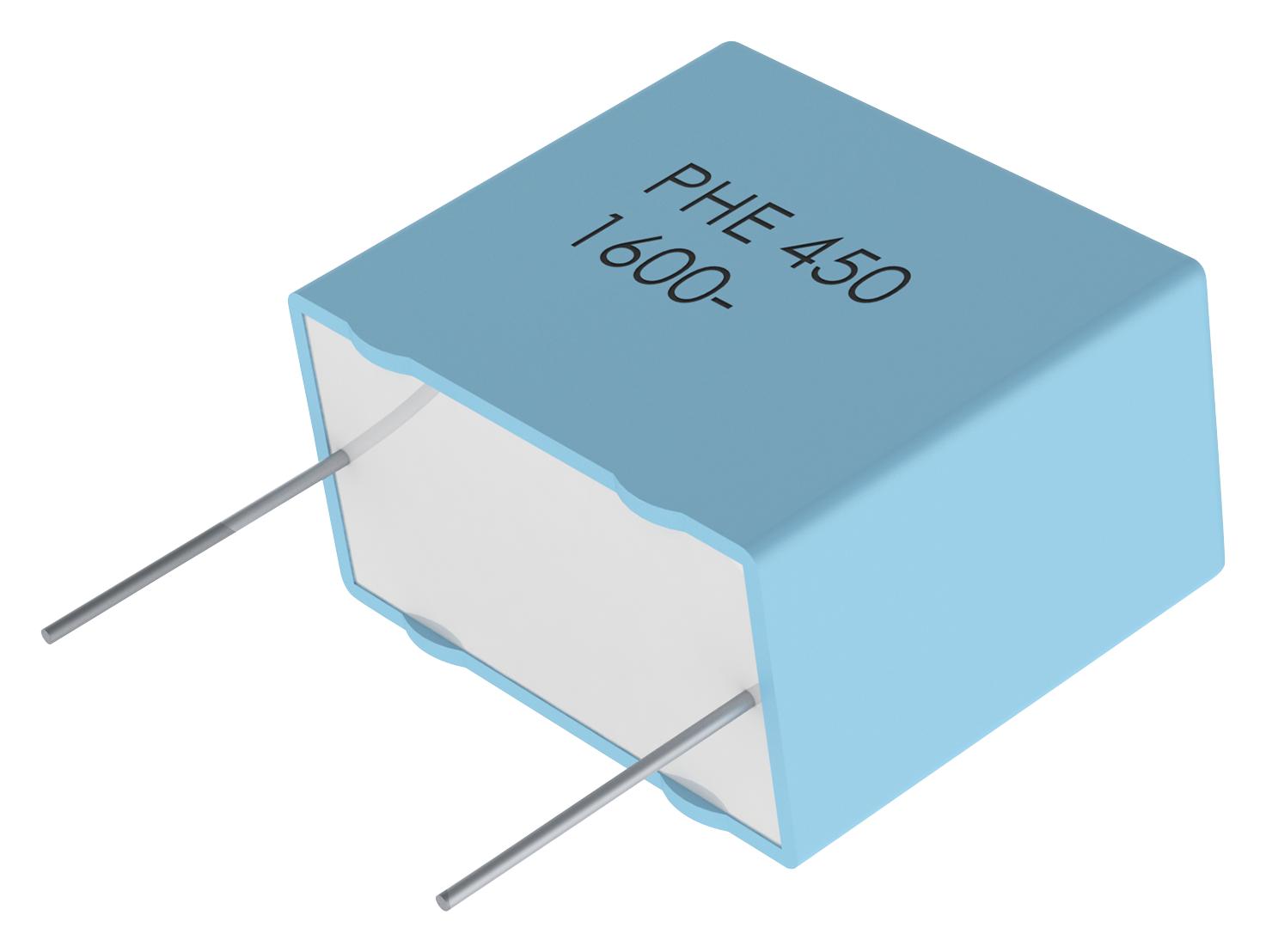

KEMET PHE450KB6100JR06 Film Capacitor
The PHE450KB6100JR06 is a general-purpose film capacitor featuring double metallized polypropylene dielectric with a capacitance of 0.1 uF, 5% tolerance, and rated voltage of 400 VDC at 85°C. It is designed for pulse applications with radial wire leads, RoHS compliance, and a compact size with dimensions of approximately 18mm in length, 6.5mm in thickness, and 15mm lead spacing. Suitable for electronic circuits requiring high insulation resistance and moderate temperature stability, it offers reliable performance in various industrial and consumer electronics. The capacitor's low dissipation factor ensures minimal energy loss, making it ideal for filter and bypass applications.
KEMET PHE450KB6100JR06 Film Capacitor Specifications:
- Capacitance: 0.1 uF
- Capacitance Tolerance: 5%
- Rated Voltage DC: 400 VDC at 85°C, 296 VDC at 105°C
- Voltage AC: 250 VAC
- Temperature Range: -55°C to +105°C
- Dimensions: Length 18mm ±0.5mm, Thickness 6.5mm ±0.5mm, Lead Spacing 15mm +0.4/-0.4mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz
- Lead Type: Wire Leads
- RoHS Compliant
- Application: Pulse, Filtering
- Package: Bulk, Bag, Max Divt: 1000 units
- Inductance: 6nH
- Weight: 1.89g
- Operating Temperature: -55°C to +105°C
Buy the Buy KEMET Film Capacitor Part Number PHE450KB6100JR06 Online
Purchase the KEMET PHE450KB6100JR06 film capacitor today for reliable performance in electronic circuits. This 0.1 uF, 400 VDC rated capacitor features a compact radial design, ideal for pulse and filtering applications. Its high insulation resistance, low dissipation factor, and broad temperature range ensure consistent operation in industrial and consumer electronics. Perfect for engineers seeking quality components, this capacitor provides excellent stability and durability, and is available in bulk quantities for cost-effective sourcing. Order now to enhance your electronic projects with trusted KEMET performance.
Get KEMET PHE450KB6100JR06 today—built for precision and long-lasting durability in electronic filtering and pulse applications.
Frequently Asked Questions
Where can I buy KEMET PHE450KB6100JR06?
You can click on the BUY or RFQ button to purchase PHE450KB6100JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450KB6100JR06?
You can download the PHE450KB6100JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450KB6100JR06?
KEMET
