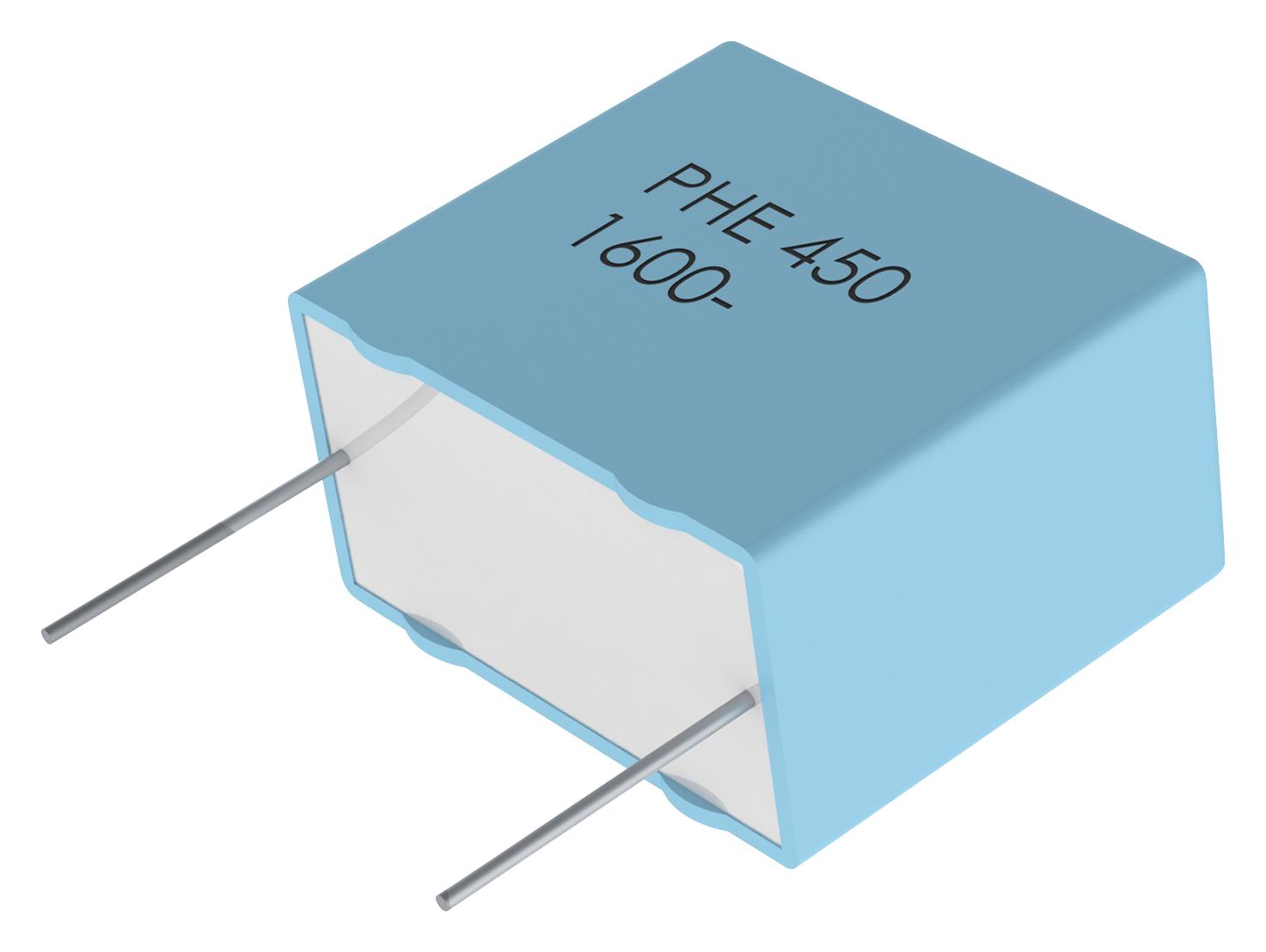

KEMET PHE450KK3330JR17 Film Capacitor
The PHE450KK3330JR17 is a general-purpose film capacitor made with double metallized polypropylene dielectric, featuring a capacitance of 330 pF with a 5% tolerance. Designed for reliable performance in various applications, it operates at 400 VDC and is rated for -55°C to +105°C. Its radial style with wire leads makes installation straightforward, and it offers high insulation resistance of 100 GOhms. Suitable for pulse applications, this capacitor complies with RoHS standards and offers a compact size with dimensions of 10mm length, 8mm height, and 4mm thickness.
KEMET PHE450KK3330JR17 Film Capacitor Specifications:
- Capacitance: 330 pF
- Capacitance Tolerance: 5%
- Voltage DC: 400 VDC at 85°C, 296 VDC at 105°C
- Rated Voltage AC: 250 VAC
- Temperature Range: -55°C to +105°C
- Dimensions: Length 10mm ±0.5mm, Height 8mm ±0.5mm, Thickness 4mm ±0.5mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz
- Packaging: Bulk, Bag, 1000 pcs
- RoHS Compliant: Yes
- Lead Style: Wire Leads
- Style: Radial
- Dielectric: Double Metallized Polypropylene
- Features: Pulse, General Purpose
- Inductance: 6nH
Buy the KEMET PHE450KK3330JR17 – Reliable Film Capacitance for Industrial Applications
Discover the reliable PHE450KK3330JR17 film capacitor, ideal for industrial and electronic applications. Featuring 330 pF capacitance with 5% tolerance, it operates at 400 VDC and -55°C to +105°C. Its radial style with wire leads ensures easy installation, while high insulation resistance of 100 GOhms guarantees safety and durability. This RoHS-compliant component is suitable for pulse and general-purpose applications, offering compact size and robustness. Purchase online now for fast delivery and trusted performance in your engineering projects.
Order your KEMET Series PHE450KK3330JR17 today and give your projects the dependable quality they deserve with this high-performance film capacitor.
Frequently Asked Questions
Where can I buy KEMET PHE450KK3330JR17?
You can click on the BUY or RFQ button to purchase PHE450KK3330JR17 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450KK3330JR17?
You can download the PHE450KK3330JR17 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450KK3330JR17?
KEMET
