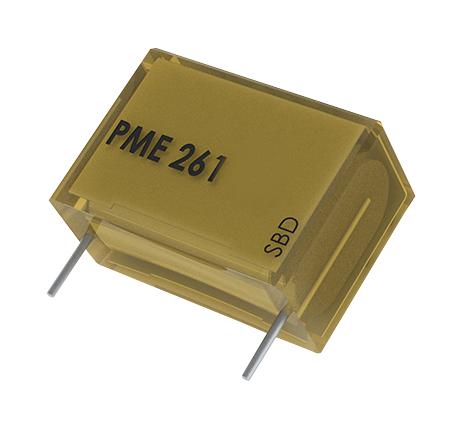

KEMET PME261JA4470KR19T0 Metallized Paper Film Capacitor
The PME261JA4470KR19T0 is a metallized paper film capacitor suitable for general purpose applications. It has a capacitance of 4700 pF with a 10% tolerance, rated for 1000 VDC and operates within a temperature range of -40°C to +100°C, with a maximum rated temperature of 85°C. The capacitor features a radial lead type with a lead spacing of 10.2mm, molded construction, and is designed for low pulse DC and low frequency applications. It is RoHS compliant and suitable for AC operation up to 70°C, with an insulation resistance of 12 GOhms.
KEMET PME261JA4470KR19T0 Metallized Paper Film Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 10%
- Voltage DC: 1000 VDC
- Voltage AC: 500 VAC
- Lead Spacing: 10.2mm
- Dimensions: Length 13.5mm -0.5mm, Height 18.5mm +/-0.5mm
- Temperature Range: -40°C to +100°C
- Rated Temperature: 85°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Construction: Molded
- Lead Type: Wire Leads
- RoHS Compliant
- Maximum Voltage: 2000 V
- Maximum Operating Temperature for AC: 70°C
Buy the KEMET Series PME261 Capacitor: General Purpose Metallized Paper Film - 4700 pF 10% 1000 VDC
Purchase the KEMET PME261JA4470KR19T0 metallized paper film capacitor online today. Designed for reliable general purpose use, it features 4700 pF capacitance, 1000 VDC rated voltage, and operates efficiently within -40°C to +100°C. This Molded construction component with radial wire leads offers high insulation resistance of 12 GOhms and is RoHS compliant. Perfect for low pulse DC and AC applications, ensuring durability and consistent performance in your electronic projects. Order now for fast delivery and excellent quality.
Get KEMET PME261JA4470KR19T0 today—built for precision and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy KEMET PME261JA4470KR19T0?
You can click on the BUY or RFQ button to purchase PME261JA4470KR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261JA4470KR19T0?
You can download the PME261JA4470KR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261JA4470KR19T0?
KEMET
