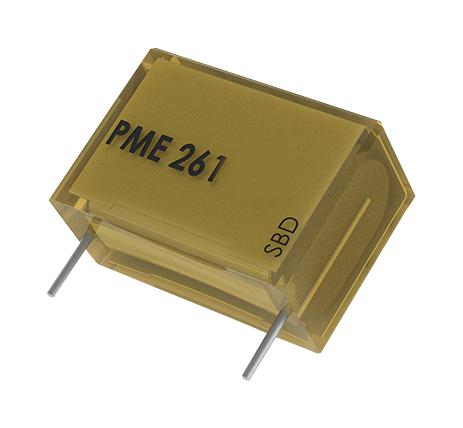

KEMET PME261KA5220KR19T0 Film Capacitor
The PME261KA5220KR19T0 is a general-purpose film capacitor with metallized paper dielectric, suitable for AC and DC applications. It features a capacitance of 0.022 uF with a 10% tolerance, rated for 400 VDC and operational up to 85°C. Designed with wire leads and molded construction, it has a lead spacing of 10.2mm, dimensions of approximately 13.5mm in length and 18.5mm in height. Its insulation resistance is 12 GOhms, with a dissipation factor of 1.3% at 1kHz, making it ideal for low-frequency pulse and filter applications.
KEMET PME261KA5220KR19T0 Film Capacitor Specifications:
- Capacitance: 0.022 uF
- Capacitance Tolerance: 10%
- Voltage DC: 400 VDC
- Voltage AC: 220 VAC
- Rated Temperature: 85°C
- Operation Temperature Range: -40°C to +100°C
- Dimensions: Length 13.5mm ±0.5mm, Height 18.5mm ±0.5mm, Lead Spacing 10.2mm
- Dielectric: Metallized Paper
- Construction: Molded
- Lead Type: Wire Leads
- Insulation Resistance: 12 GOhms
- Dissipation Factor: 1.3% at 1kHz
- Packaging: T&R, Quantity: 600
- RoHS Compliant: Yes
Buy the KEMET PME261KA5220KR19T0 – Reliable Film Capacitor for Industrial Applications
Secure your industrial needs with the KEMET PME261KA5220KR19T0 film capacitor. Rated for 400VDC and 0.022uF capacitance, it provides reliable performance in AC and DC circuits. Its metallized paper dielectric ensures stability and longevity in low-frequency pulse applications, while the molded design guarantees durability. With a lead spacing of 10.2mm, it is suitable for various electrical installations. Purchase online today to ensure your equipment operates efficiently and reliably in demanding industrial environments.
Buy KEMET PME261KA5220KR19T0 now and experience unmatched reliability and high-performance filtering for your industrial projects.
Frequently Asked Questions
Where can I buy KEMET PME261KA5220KR19T0?
You can click on the BUY or RFQ button to purchase PME261KA5220KR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261KA5220KR19T0?
You can download the PME261KA5220KR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261KA5220KR19T0?
KEMET
