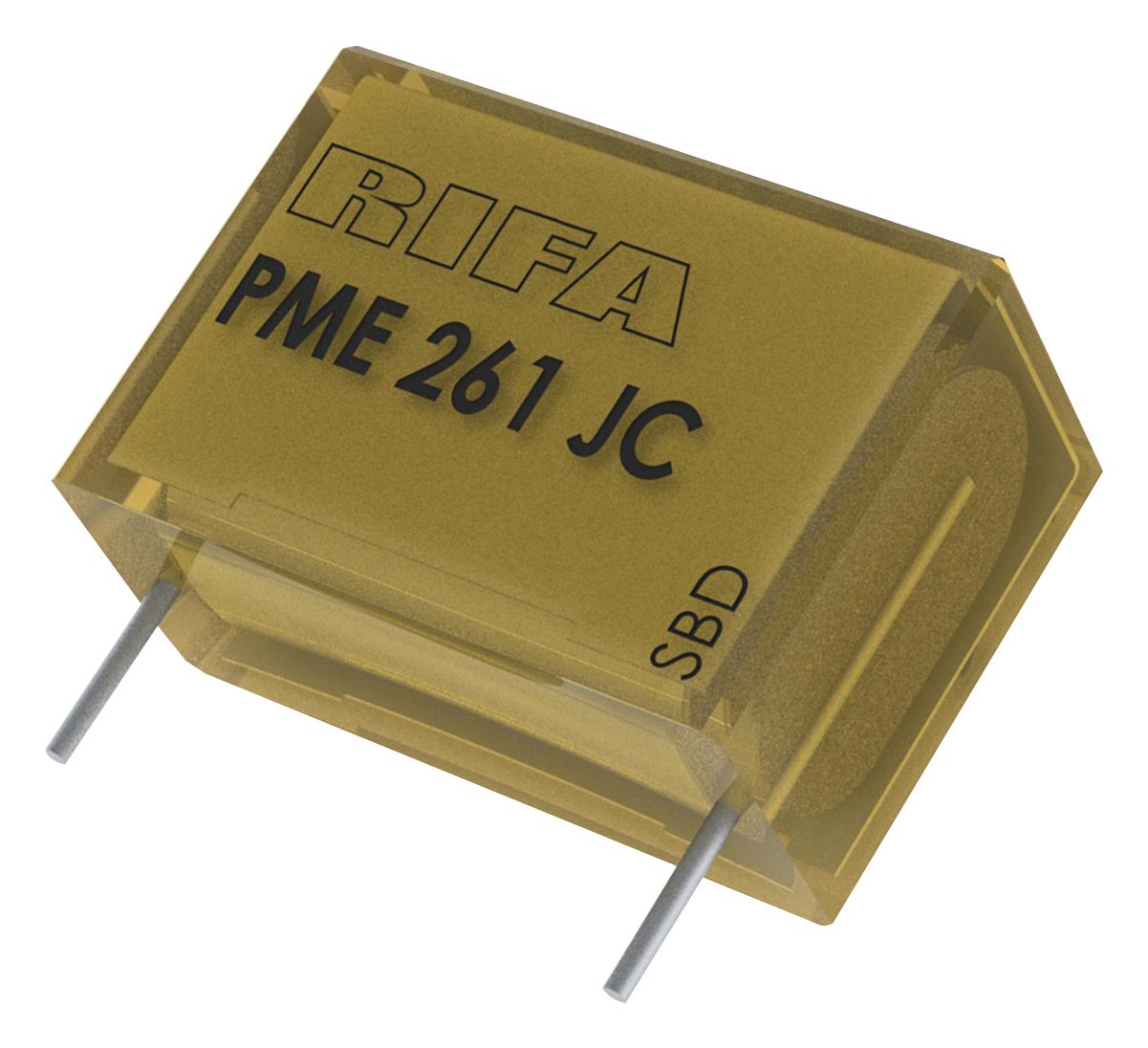

KEMET PME261KB6100KR30 Power Film Capacitor
The PME261KB6100KR30 is a general-purpose metallized paper film capacitor designed for a wide range of electronic applications. With a capacitance of 0.1 uF and a voltage rating of 400 VDC, it operates reliably within a temperature range of -40°C to +100°C. This molded, radial lead component weighs approximately 2.7 grams and features RoHS compliance and wire leads for easy installation. Suitable for AC operation, it offers low dissipation factors and high insulation resistance, making it ideal for filtering, coupling, and bypassing in power supply circuits.
KEMET PME261KB6100KR30 Power Film Capacitor Specifications:
- Capacitance: 0.1 uF
- Tolerance: 10%
- Voltage DC: 400 VDC
- Voltage AC: 220 VAC
- Operating Temperature Range: -40°C to +100°C
- Rated Temperature: 85°C
- Dimensions: Length 18.5mm -0.5mm, Height 7.3mm -0.6mm, Lead Spacing 15.2mm +/-0.4mm, Max Diameter 30mm +5mm
- Material: Metallized paper dielectric
- Construction: Molded, radial lead
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Maximum dV/dt: 850 V/us
- RoHS Compliant, Lead: Wire leads
- Weight: 2.7 grams
- Packaging: Bulk, Bag with 400 units
Buy the KEMET Series PME261 Capacitor: PME261KB6100KR30
Purchase the KEMET Series PME261KB6100KR30 power film capacitor online today to ensure your projects benefit from high-quality, reliable components. This 0.1 uF, 400 VDC capacitor features radial leads, RoHS compliance, and excellent stability across temperatures from -40°C to +100°C. Designed for filtering, bypassing, and coupling applications, it offers a low dissipation factor of 1.3% at 1kHz and an insulation resistance of 12 GOhms. Secure your supply with this robust film capacitor for consistent performance in demanding electronic environments.
Order your KEMET Series PME261KB6100KR30 today and enhance your power filtering and coupling circuits with reliable metallized paper film capacitors.
Frequently Asked Questions
Where can I buy KEMET PME261KB6100KR30?
You can click on the BUY or RFQ button to purchase PME261KB6100KR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261KB6100KR30?
You can download the PME261KB6100KR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261KB6100KR30?
KEMET
