KEMET PZB300MC11R30 Safety Film Capacitor
The PZB300 series safety film capacitors are designed with metallized paper dielectric for EMI safety applications. These radial style components offer 0.1 µF capacitance with a 20% tolerance, rated for AC voltages up to 275 VAC and a maximum temperature of 100°C. They feature mold construction, three leads, and meet RoHS and safety standards including UL and ENEC. With dimensions up to 24mm in length, 16mm in height, and lead spacing of 20mm, these capacitors are suitable for EMI suppression and filter circuits in industrial and electronic equipment.
KEMET PZB300MC11R30 Safety Film Capacitor Specifications:
- Capacitance: 0.1 µF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC
- Temperature Range: -40/+100°C
- Rated Temperature: 100°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dVidt: 600 V/us
- Dimensions: Length 24mm MAX, Height 16mm MAX, Thickness 12.5mm MAX, Lead Spacing 20mm ±0.5mm, Sleeve Length 30mm +5mm, F 0.8mm ±0.05mm
- Construction: Molded, radial style
- Features: EMI safety, RoHS compliant
- Safety Class: Delta EMI X2+Y2+Y2
- Certification: UL, ENEC, cUL

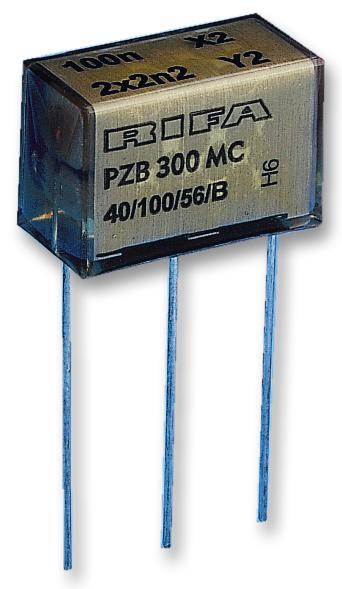

Buy the KEMET Series PZB300 Safety Capacitor: PZB300MC11R30
Enhance your electronic projects with the KEMET Series PZB300 safety film capacitor, featuring 0.1 µF capacitance, 275 VAC voltage rating, and operating from -40°C to 100°C. Crafted for EMI safety and compliance with UL and ENEC standards, these molded radial capacitors have a lead spacing of 20mm and dimensions up to 24mm x 16mm. Ideal for EMI suppression, filtering, and industrial applications, they ensure high performance, reliability, and safety in demanding environments.
Order your KEMET Series PZB300 safety film capacitor today and ensure reliable EMI safety for your circuit and industrial applications.
Frequently Asked Questions
Where can I buy KEMET PZB300MC11R30?
You can click on the BUY or RFQ button to purchase PZB300MC11R30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PZB300MC11R30?
You can download the PZB300MC11R30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PZB300MC11R30?
KEMET
