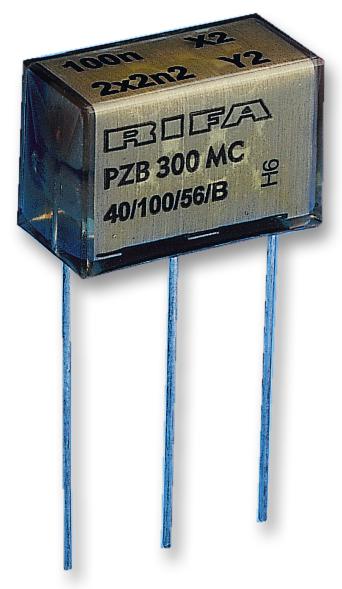

KEMET PZB300MC21R30 Safety Film Capacitor
This PZB300/P300 series safety film capacitor is designed with metallized paper dielectric for EMI safety applications. It features a capacitance of 0.15 uF with a 20% tolerance, rated for 275 VAC voltage and operational temperature from -40°C to +100°C. The component has a compact radial mold construction with lead spacing of 20mm, maximum dimensions of 24mm length, 16mm height, and 12.5mm thickness. Suitable for safety-critical uses, it is RoHS compliant and certified under UL, cUL, and ENEC standards, ensuring reliable performance in various electrical systems.
KEMET PZB300MC21R30 Safety Film Capacitor Specifications:
- Capacitance: 0.15 uF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC
- Temperature Range: -40°C to +100°C
- Rated Temperature: 100°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dv/dt: 600 V/us
- Dimensions: Length 24mm MAX, Height 16mm MAX, Thickness 12.5mm MAX, Lead Spacing 20mm +/-0.5mm
- Packaging: Bulk, Bag; Quantity: 150
- Features: EMI Safety, Molded Construction, RoHS Compliant
- Certifications: UL, cUL, ENEC
- Style: Radial, Metallized Paper Dielectric
- Safety Class: Delta EMI X2+Y2+Y2
Buy the Buy YAGEO PZB300MC21R30 Part Number PZB300MC21R30 Online
Purchase the YAGEO PZB300MC21R30 safety film capacitor online today for high-voltage EMI protection. Featuring 0.15 uF capacitance, 275 VAC voltage rating, and a temperature range of -40°C to +100°C, this molded radial capacitor is ideal for safety applications. With RoHS compliance, UL and ENEC certifications, and a lead spacing of 20mm, it ensures safe and reliable operation in various electrical systems. Order now to enhance your device’s immunity and safety performance effortlessly.
Buy YAGEO PZB300MC21R30 now and experience reliable EMI safety performance in your electrical applications.
Frequently Asked Questions
Where can I buy KEMET PZB300MC21R30?
You can click on the BUY or RFQ button to purchase PZB300MC21R30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PZB300MC21R30?
You can download the PZB300MC21R30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PZB300MC21R30?
KEMET
