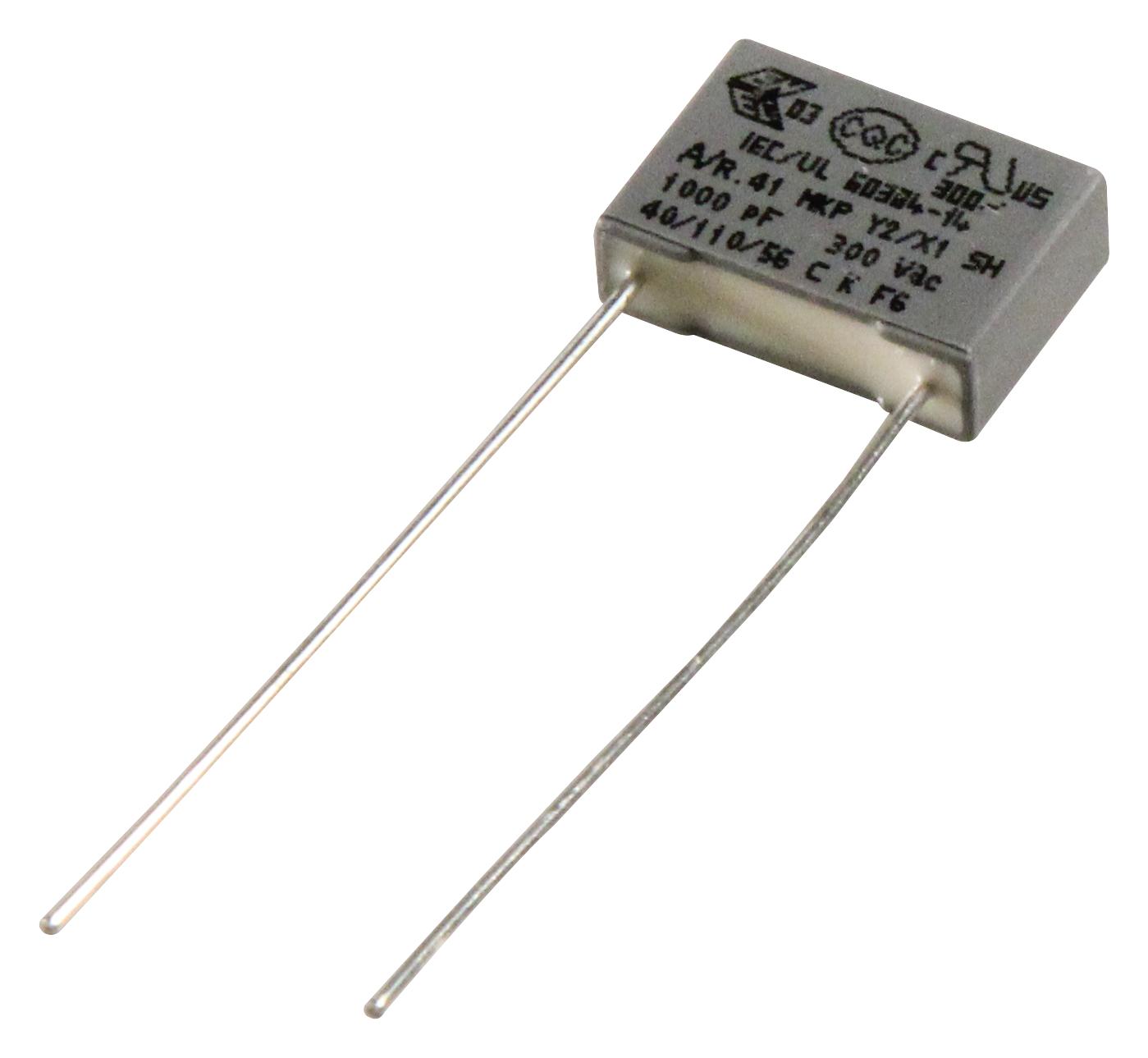

KEMET R413I222040M1M automotive film capacitor
The R41 series film capacitor features metallized polypropylene dielectric, designed for automotive safety and EMI safety applications. With a capacitance of 0.022 uF and a voltage rating of 300 VAC (Y2) and 1000 VDC, it operates efficiently within a temperature range of -40°C to +110°C. This radial lead component weighs approximately 1.753 grams and has dimensions of 18mm in length and 12mm in height. It complies with RoHS, AEC-Q200 standards, and features a dissipation factor of 0.2% at 1kHz, making it ideal for demanding automotive environments.
KEMET R413I222040M1M automotive film capacitor Specifications:
- Capacitance: 0.022 uF
- Capacitance Tolerance: 20%
- Voltage AC: 300 VAC (Y2)
- Voltage DC: 1000 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dimensions: Length 18mm +0.3/-0.5mm, Height 12mm +0.1/-0.5mm
- Lead Spacing: 15mm
- Dissipation Factor: 0.2% at 1kHz
- Insulation Resistance: 100 GOhms
- Weight: 1.753 grams
- RoHS Compliant: Yes
- AEC-Q200 Qualified: Yes
Buy the Buy KEMET R4131222040M1M Part Number R4131222040M1M Online
Purchase the KEMET R4131222040M1M automotive film capacitor online for superior safety and EMI performance. This metallized polypropylene capacitor offers 0.022 uF capacitance, withstands voltages up to 300 VAC and 1000 VDC, and operates steadily in temperatures from -40°C to +110°C. Its radial lead design ensures easy integration into automotive and industrial circuits. Certified by AEC-Q200, it is RoHS compliant and features low dissipation factor for efficient energy storage. Buy now for reliable, high-quality performance in your critical applications.
Get KEMET R4131222040M1M today—engineered for automotive safety and EMI filtering with high reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET R413I222040M1M?
You can click on the BUY or RFQ button to purchase R413I222040M1M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R413I222040M1M?
You can download the R413I222040M1M datasheet or visit the KEMET website for support.
Who is the manufacturer of R413I222040M1M?
KEMET
