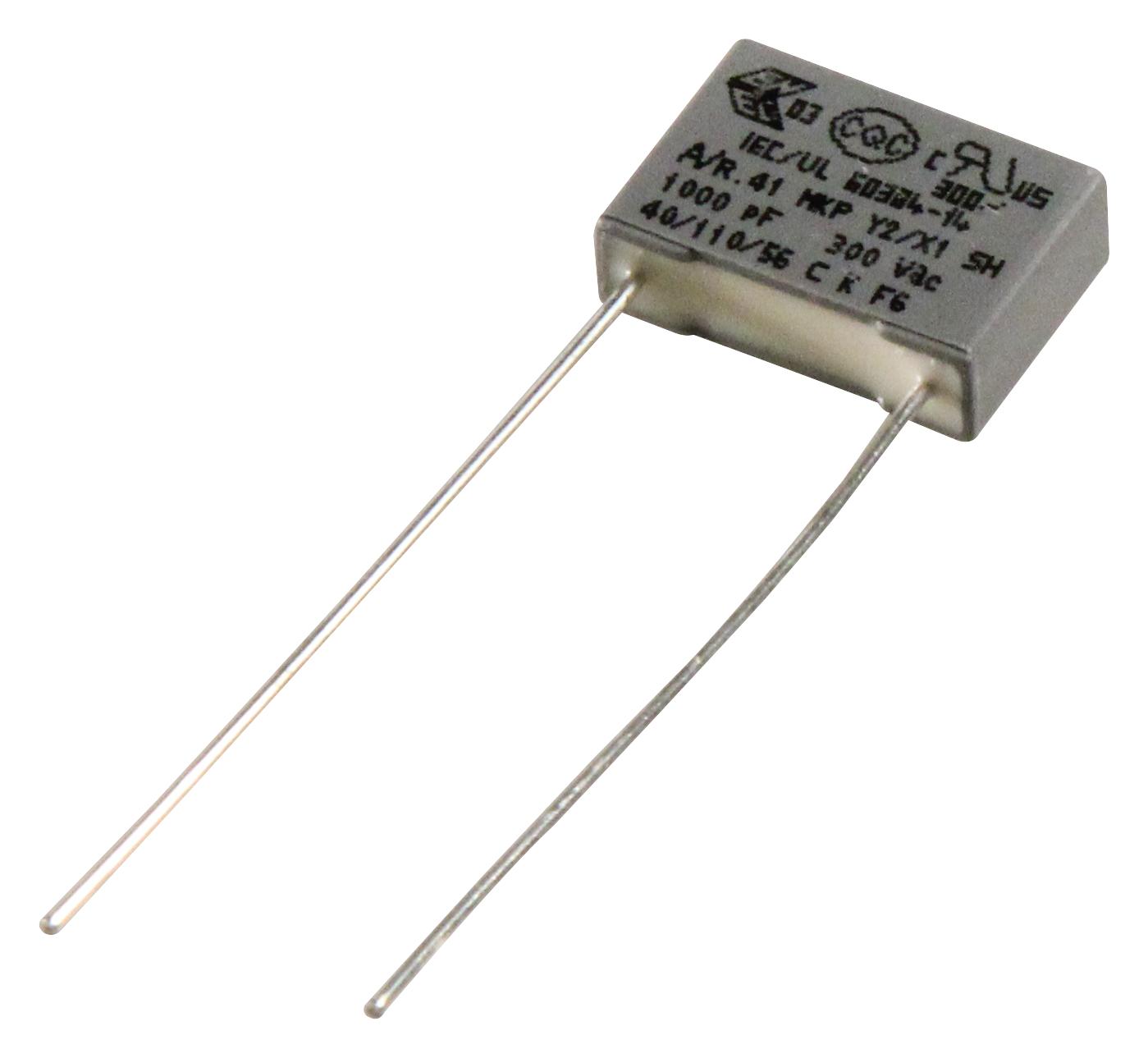

KEMET R413R34705000M EMI Suppression Capacitor
The R41 Series metallized polypropylene film capacitors are designed for electromagnetic interference (EMI) suppression in across-the-line applications. Rated for 300 VAC and operating up to 110°C, these automotive-grade Class Y2 capacitors meet UL, ENEC, cUL, and CQC standards. Encapsulated in fire-resistant resin with self-healing properties, they feature low dissipation factors, high climatic and temperature endurance, and robust testing including factory screening at high voltages. Suitable for safety-critical EMI filtering, these capacitors ensure reliable performance in automotive and industrial environments, with various lead spacing and packaging options available.
KEMET R413R34705000M EMI Suppression Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Protection: Plastic case with thermosetting resin, UL94 flame retardant
- Rated Voltage: 300 VAC (50/60 Hz), 1000 VDC
- Capacitance Range: 0.0010 UF to 1 UF
- Capacitance Tolerance: +20%, +10%
- Operating Temperature: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Dissipation Factor: 0.3% (0.2% typical at 1kHz, +25°C)
- Insulation Resistance: >30,000 MΩ at 100 VDC (C<0.33 pF), >150,000 MΩ at 100 VDC (C≥0.33 pF)
- Factory Screening Test: 5,000 VDC/2,500 VAC
- Approvals: UL, ENEC, cUL, CQC
- Compliance: RoHS
Buy the KEMET Series R41 EMI Capacitor: R413R34705000M
Purchase the KEMET R413R34705000M automotive-grade EMI suppression capacitor online today and experience dependable EMI filtering for automotive and industrial applications. With rated 300 VAC and operating up to 110°C, these capacitors are UL, ENEC, cUL, and CQC approved, encapsulated in flame-retardant resin with self-healing properties. Available in various lead spacing and packaging options, they provide high endurance, low dissipation, and reliable performance in demanding environments. Order now for fast delivery and secure online shopping.
Buy KEMET R413R34705000M automotive-grade EMI suppression capacitor now and ensure high reliability and safe electromagnetic interference filtering.
Frequently Asked Questions
Where can I buy KEMET R413R34705000M?
You can click on the BUY or RFQ button to purchase R413R34705000M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R413R34705000M?
You can download the R413R34705000M datasheet or visit the KEMET website for support.
Who is the manufacturer of R413R34705000M?
KEMET
