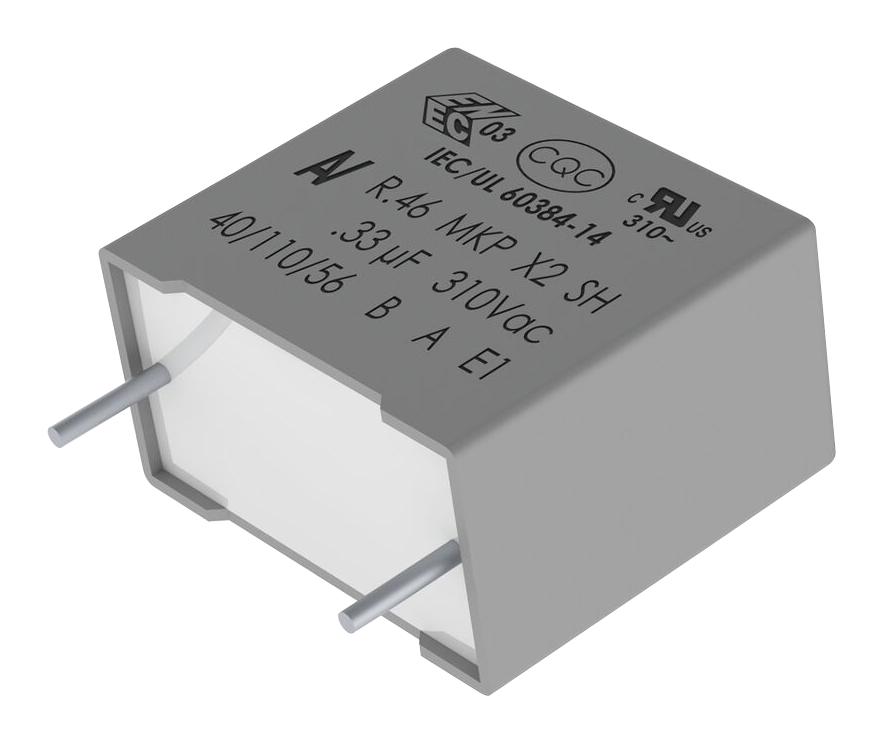

KEMET R463I33300001M High-Voltage Film Capacitor
The R46 series capacitor is a high-quality safety film capacitor designed for EMI filtering and safety applications. Featuring metallized polypropylene dielectric, it offers a capacitance of 0.33 microfarads with a tolerance of 20%. Rated at 310 VAC (X2) and 630 VDC, it operates reliably from -40°C to +110°C. Its radial H style with 15mm lead spacing ensures easy installation. Certifications include UL, cUL, ENEC, and CQC, making it suitable for various industrial and electronic applications requiring high voltage safety and performance.
KEMET R463I33300001M High-Voltage Film Capacitor Specifications:
- Capacitance: 0.33 uF
- Capacitance Tolerance: 20%
- Rated Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Lead Spacing: 15mm
- Dimensions: Length 18mm ±0.5mm, Height 12mm +0.1/-0.5mm, Depth 13mm +0.2/-0.5mm
- Dissipation Factor: 0.1% at 1kHz
- Insulation Resistance: 100 GOhms
- Material: Metallized Polypropylene
- Features: EMI Safety, Safety Class X2
- RoHS Compliant: Yes
- Packaging: Bulk, Bag
- Weight: 3.383 g
- Max dV/dt: 400 V/μs
- Certifications: UL, cUL, ENEC, CQC
Buy the KEMET Series R46 High-Voltage Film Capacitor: R463133300001M
Order the KEMET R463133300001M high-voltage film capacitor online today—engineered for safety, EMI filtering, and long-lasting stability. With a capacitance of 0.33 microfarads and rated for 310 VAC (X2 type) and 630 VDC, it is ideal for industrial and electronic safety applications. Its metallized polypropylene dielectric provides excellent stability, low dissipation factor, and high insulation resistance. Compact, robust, and RoHS compliant, this capacitor ensures dependable performance in demanding environments. Purchase now for reliable, certified quality with fast delivery.
Get KEMET R463133300001M today—built for safety, EMI filtering, and reliable high-voltage performance.
Frequently Asked Questions
Where can I buy KEMET R463I33300001M?
You can click on the BUY or RFQ button to purchase R463I33300001M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R463I33300001M?
You can download the R463I33300001M datasheet or visit the KEMET website for support.
Who is the manufacturer of R463I33300001M?
KEMET
