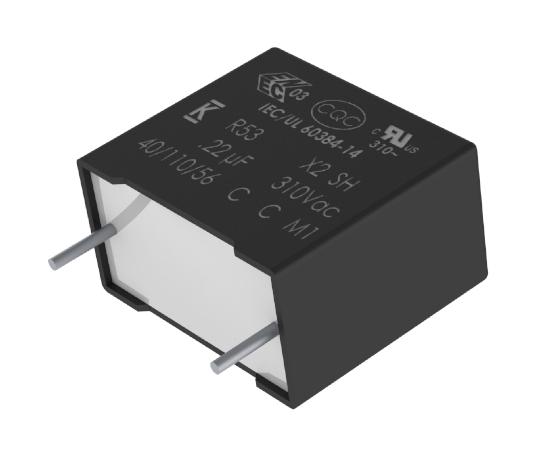

KEMET R533I382050P0M EMI Suppression Capacitor
The R53 series consists of miniature metallized polypropylene film capacitors designed for EMI suppression in harsh environments, including automotive applications. Rated at 310 VAC and operating up to 110°C, these capacitors are encapsulated in flame-retardant UL 94 V-0 resin, with self-healing properties and compliance with automotive and safety standards like AEC-Q200, UL, and ENEC. Suitable for across-the-line EMI suppression, they feature high stability, low dissipation factor, and are ideal for severe ambient conditions such as onboard chargers and energy meters.
KEMET R533I382050P0M EMI Suppression Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Protection: Plastic case, thermosetting resin, UL94 flame retardant
- Rated Voltage: 310 VAC (50/60 Hz)
- Recommended DC Voltage: <630 VDC
- Capacitance Range: 0.1 - 22 μF
- Capacitance Tolerance: +20%, +10%
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Approval: UL, ENEC, cUL, CQC
- Dissipation Factor: 0.3% at 1 kHz for C<0.1 pF, 0.2% for C>0.1 pF
- Insulation Resistance: Rins ≥50% of initial limit at +25°C +5°C
- Self-healing properties and RoHS compliant
- Lead Spacing: 15 mm, 22.5 mm, 27.5 mm, 37.5 mm
Buy the KEMET Series R53 EMI Suppression Capacitor: R533I382050P0M
Order the KEMET R533I382050P0M EMI suppression capacitor now to ensure maximum reliability and performance in severe environmental conditions. Designed for use in automotive electronics, this capacitor offers 310 VAC rated voltage, operates efficiently at temperatures up to 110°C, and features self-healing properties, flame-retardant encapsulation, and compliance with safety standards like UL and ENEC. Perfect for EMI filtering in onboard chargers, energy meters, and across-the-line applications demanding durability, stability, and safety. Purchase online today for fast delivery and technical support.
Get KEMET R533I382050P0M today—built for EMI suppression in automotive and harsh environments with high reliability.
Frequently Asked Questions
Where can I buy KEMET R533I382050P0M?
You can click on the BUY or RFQ button to purchase R533I382050P0M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533I382050P0M?
You can download the R533I382050P0M datasheet or visit the KEMET website for support.
Who is the manufacturer of R533I382050P0M?
KEMET
