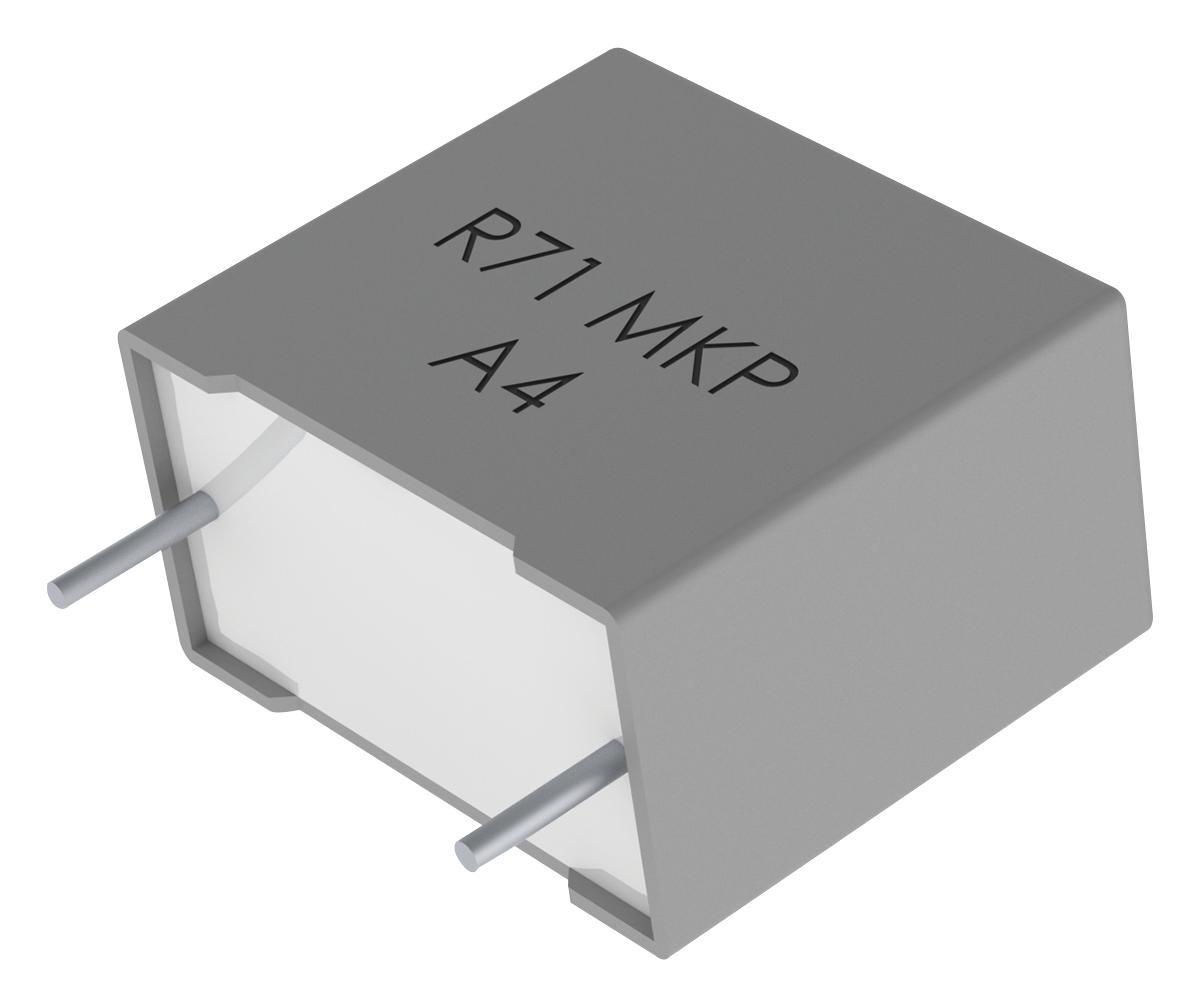

KEMET R71MI41004030K Polypropylene Film Capacitor
The R71MI41004030K is a metallized polypropylene film capacitor designed for general purpose applications. It features a capacitance of 1uF with a 10% tolerance, rated for 420 VDC and operating over a temperature range of -40°C to +110°C. This radial lead capacitor offers low dissipation factor of 0.1% at 25°C, insulation resistance of 30 GOhms, and is suitable for use in pulse and power factor correction circuits. It is RoHS compliant, packaged in bulk, and provides reliable performance in a compact form factor.
KEMET R71MI41004030K Polypropylene Film Capacitor Specifications:
- Capacitance: 1uF
- Capacitance Tolerance: 10%
- Voltage DC: 420 VDC
- Voltage AC: 220 VAC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 105°C
- Dissipation Factor: 0.1% at 25°C
- Insulation Resistance: 30 GOhms
- Lead Type: Wire Leads
- Lead Spacing: 15 mm
- Physical Dimensions: Length approx. 10 mm, Diameter approx. 15 mm
- Features: PFC and Pulse
- RoHS Compliant: Yes
Buy the Buy KEMET Capacitor Part Number R71MI41004030K Online
Discover the high-quality polypropylene film capacitor designed for reliable general purpose use. The R71MI41004030K features 1uF capacitance, 420VDC rating, and wide temperature range of -40°C to +110°C. It offers low dissipation factor, high insulation resistance, and is RoHS compliant, ensuring durability in various electronic circuits. Perfect for power factor correction and pulse applications, this capacitor provides consistent performance, easy installation with wire leads, and comes in bulk packaging for efficient procurement. Upgrade your electronic design today!
Buy KEMET R71MI41004030K now and experience unmatched reliability and performance in power and pulse applications.
Frequently Asked Questions
Where can I buy KEMET R71MI41004030K?
You can click on the BUY or RFQ button to purchase R71MI41004030K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71MI41004030K?
You can download the R71MI41004030K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71MI41004030K?
KEMET
