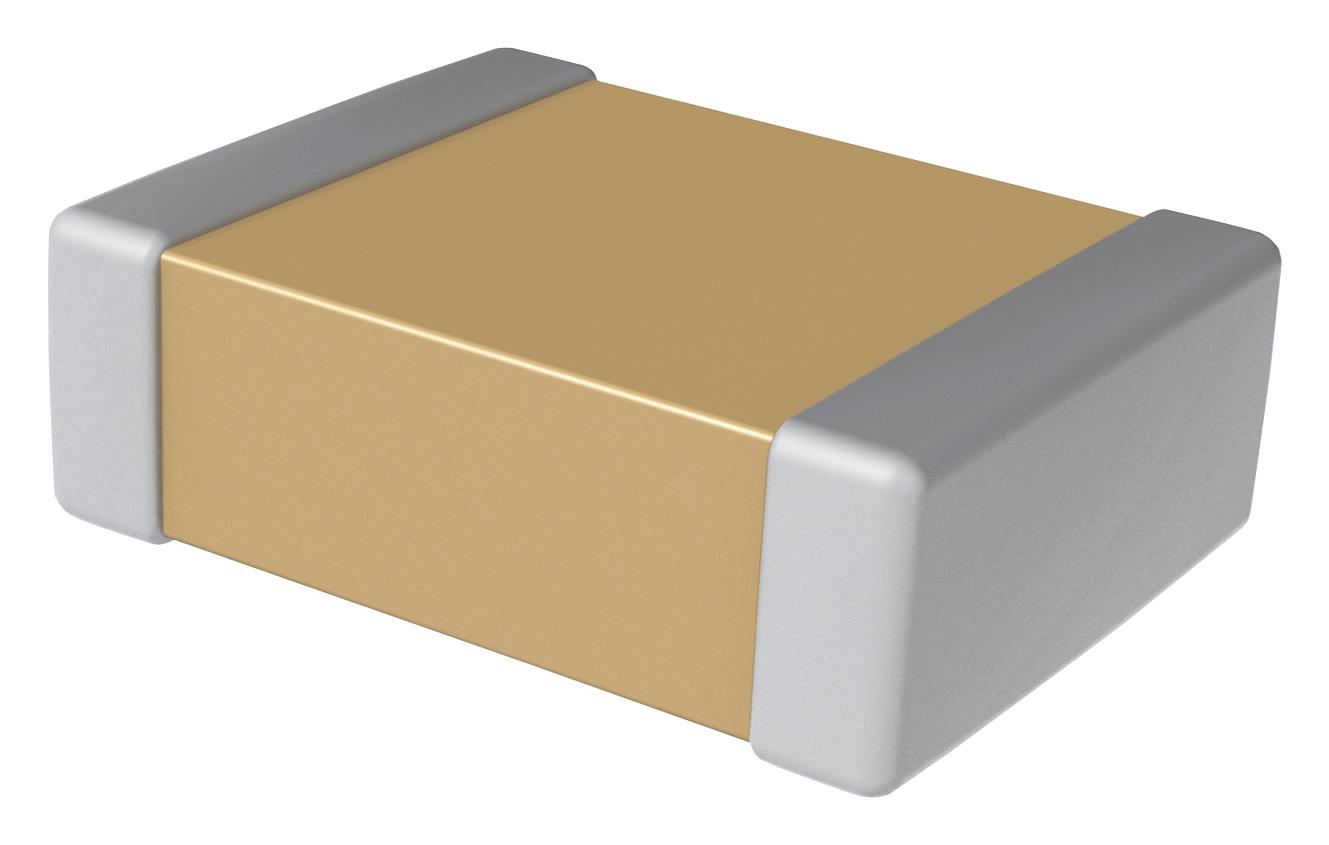

KEMET C2225W564KCRACTU High-Voltage Ceramic Capacitor
The ArcShield SMD Comm X7R HV is a high-voltage, ceramic multilayer capacitor (MLCC) characterized by a capacitance of 0.56uF and a voltage rating of 500 VDC. Designed for SMD mounting, it features flexible termination and RoHS compliance, suitable for filtering and pulse applications where high voltage handling is essential. Its X7R dielectric ensures stable performance across a wide temperature range of -55°C to +125°C, with a capacitance change of ±15% at 1 kHz. Ideal for high-voltage electronic circuits demanding reliable size and dielectric properties.
KEMET C2225W564KCRACTU High-Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.56uF
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric: X7R
- Operating Temperature Range: -55°C to +125°C
- Dimensions: Length 5.9mm ±0.75mm, Width 6.4mm ±0.4mm, Thickness 25mm ±0.20mm, B 0.7mm ±0.35mm
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Insulation Resistance: 178.6 MOhms
- Aging Rate: 3% Loss/Decade Hour
- Shelf Life: 78 Weeks
- RoHS: Yes
- Termination: Flexible Termination
- Packaging: T&R, 180mm, Plastic Tape
- Component Weight: 460 mg
Buy the Buy KEMET ArcShield SMD Comm X7R HV Part Number C2225W564KCRACTU Online
Enhance your electronic projects with the reliable KEMET high-voltage ceramic capacitor. Featuring 0.56uF capacitance at 500V DC, X7R dielectric, and SMD mounting, it provides stable performance across -55°C to +125°C. Its flexible termination makes it easy to integrate into high-voltage and pulse applications, ensuring durability and efficiency. Suitable for filtering, pulse applications, and circuits demanding high voltage handling. Purchase online now to secure this robust, RoHS-compliant component for your next electronic solution, backed by trusted quality standards.
Order your KEMET SeriesC2225W564KCRACTU high-voltage ceramic capacitor today and ensure reliable performance in your pulse and filtering electronics.
Frequently Asked Questions
Where can I buy KEMET C2225W564KCRACTU?
You can click on the BUY or RFQ button to purchase C2225W564KCRACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2225W564KCRACTU?
You can download the C2225W564KCRACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C2225W564KCRACTU?
KEMET
