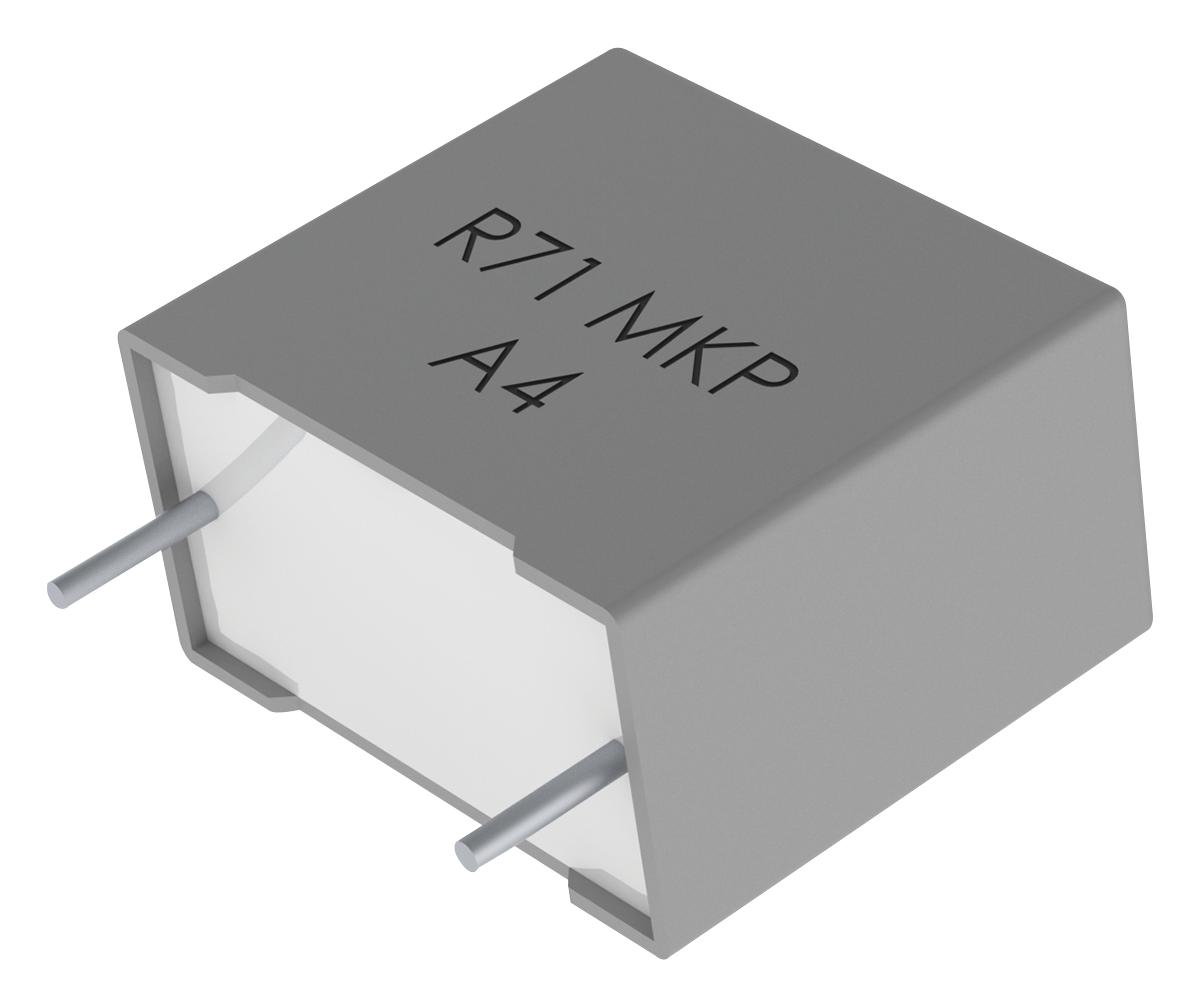

KEMET R71VF3100AA30K Film Polypropylene Capacitor
The R71VF3100AA30K is a film metallized polypropylene capacitor designed for general purpose applications, featuring a capacitance of 0.1 uF with a 10% tolerance. It supports high voltage at 520 VDC and operates effectively within a temperature range of -40°C to +110°C, making it suitable for diverse electronic circuits requiring pulse and power factor correction functions. Its radial lead style and RoHS compliance ensure easy installation and environmental safety, respectively, while its low dissipation factor of 0.1% ensures minimal power loss, making it ideal for reliable circuit performance.
KEMET R71VF3100AA30K Film Polypropylene Capacitor Specifications:
- Series: R71
- Dielectric: Metallized Polypropylene
- Features: PFC and Pulse
- RoHS: Yes
- Lead Spacing: 10mm
- Capacitance: 0.1 uF
- Capacitance Tolerance: 10%
- Voltage DC: 520 VDC
- Voltage AC: 250 VAC
- Temperature Range: -40°C to +110°C
- Dissipation Factor: 0.1% at 25°C
- Insulation Resistance: 100 GOhms
- Packaging: Bulk, Bag
- Maximum Surge Voltage: 300 V
- Lead Length: 13mm +0.2/-0.5mm
- Dimensions: 5mm +0.2/-0.5mm diameter, 13mm length
- Resistance: 397.9 mOhms at 100kHz
- Ripple Current: 30A at 85°C
- Inductance: 9nH
Buy the KEMET Series R71 Film Capacitor: R71VF3100AA30K
Order the KEMET R71VF3100AA30K capacitor online today to ensure your electronic projects benefit from high-quality, reliable, and environment-friendly power components. Designed for general purpose use, this capacitor features a 0.1 uF capacitance, supports 520 VDC, and operates efficiently within a broad temperature range from -40°C to +110°C. Its RoHS compliance and radial lead style make installation straightforward while offering excellent pulse and power factor correction capabilities. Secure your inventory with this premium film capacitor now!
Buy KEMET R71VF3100AA30K now and experience unmatched reliability and high-performance filtering for power and pulse circuit solutions.
Frequently Asked Questions
Where can I buy KEMET R71VF3100AA30K?
You can click on the BUY or RFQ button to purchase R71VF3100AA30K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71VF3100AA30K?
You can download the R71VF3100AA30K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71VF3100AA30K?
KEMET
