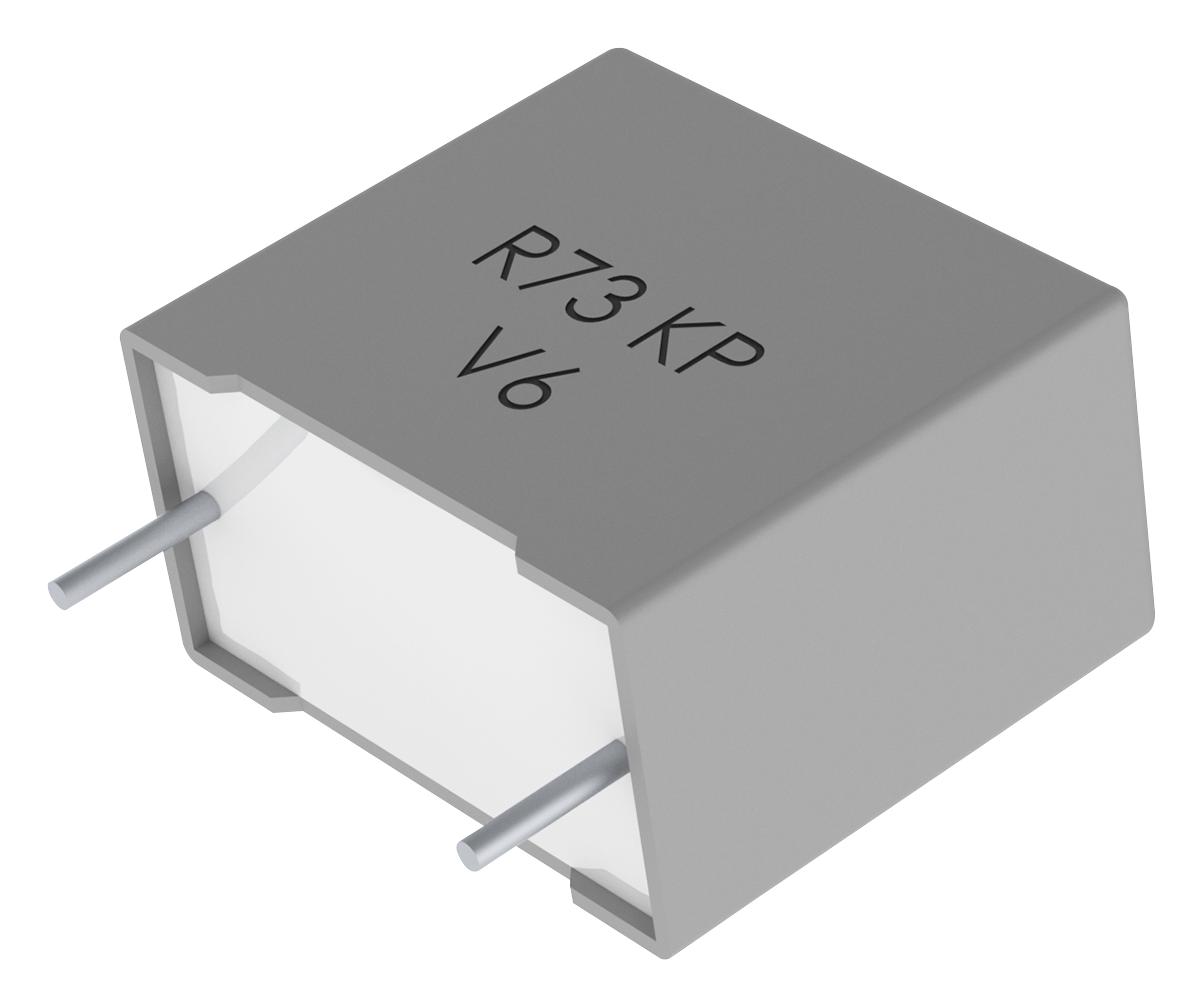

KEMET R73PI24704000J Film Capacitor
This automotive-grade film capacitor features polypropylene dielectric and foil construction, rated at 0.047 uF with a 5% tolerance, 630 VDC voltage, and a maximum temperature of 85°C. Designed for pulse applications, it has wire leads with a radial H style configuration, and meets RoHS and AEC-Q200 standards. With dimensions of approximately 18mm in length and 10mm in height, it offers low dissipation factor and high insulation resistance, making it suitable for automotive electronics, pulse filtering, and power supply applications.
KEMET R73PI24704000J Film Capacitor Specifications:
- Series: R73
- Dielectric: Film/Foil Polypropylene
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead Type: Wire Leads
- Qualifications: AEC-Q200
- Component Weight: 4.011 g
- Dimensions: Length 18mm ±0.5mm, Height 10mm +0.2+0.5mm
- Capacitance: 0.047 uF
- Capacitance Tolerance: 5%
- Voltage DC: 630 VDC
- Voltage AC: 300 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1 kHz, 0.04% at 10 kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 11,000 V/μs
- Inductance: 10 nH
Buy the KEMET Series R73 Film Capacitor: 0.047 uF 630 VDC
Purchase the KEMET Series R73 polypropylene film capacitor online today and ensure your automotive or power electronics project benefits from high-quality, reliable pulse filtering performance. Featuring a 0.047 uF capacitance, 630 VDC voltage rating, and RoHS compliance, this capacitor is designed for durability and high-temperature operation up to 85°C. Easy to install with wire leads, it’s suitable for a range of applications including automotive electronics, pulse filtering, and power supply systems, offering excellent insulation resistance and low dissipation factor for dependable operation.
Order your KEMET Series R73 0.047 uF 630 VDC film capacitor today and give your automotive and power projects the reliable pulse filtering performance they deserve.
Frequently Asked Questions
Where can I buy KEMET R73PI24704000J?
You can click on the BUY or RFQ button to purchase R73PI24704000J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R73PI24704000J?
You can download the R73PI24704000J datasheet or visit the KEMET website for support.
Who is the manufacturer of R73PI24704000J?
KEMET
