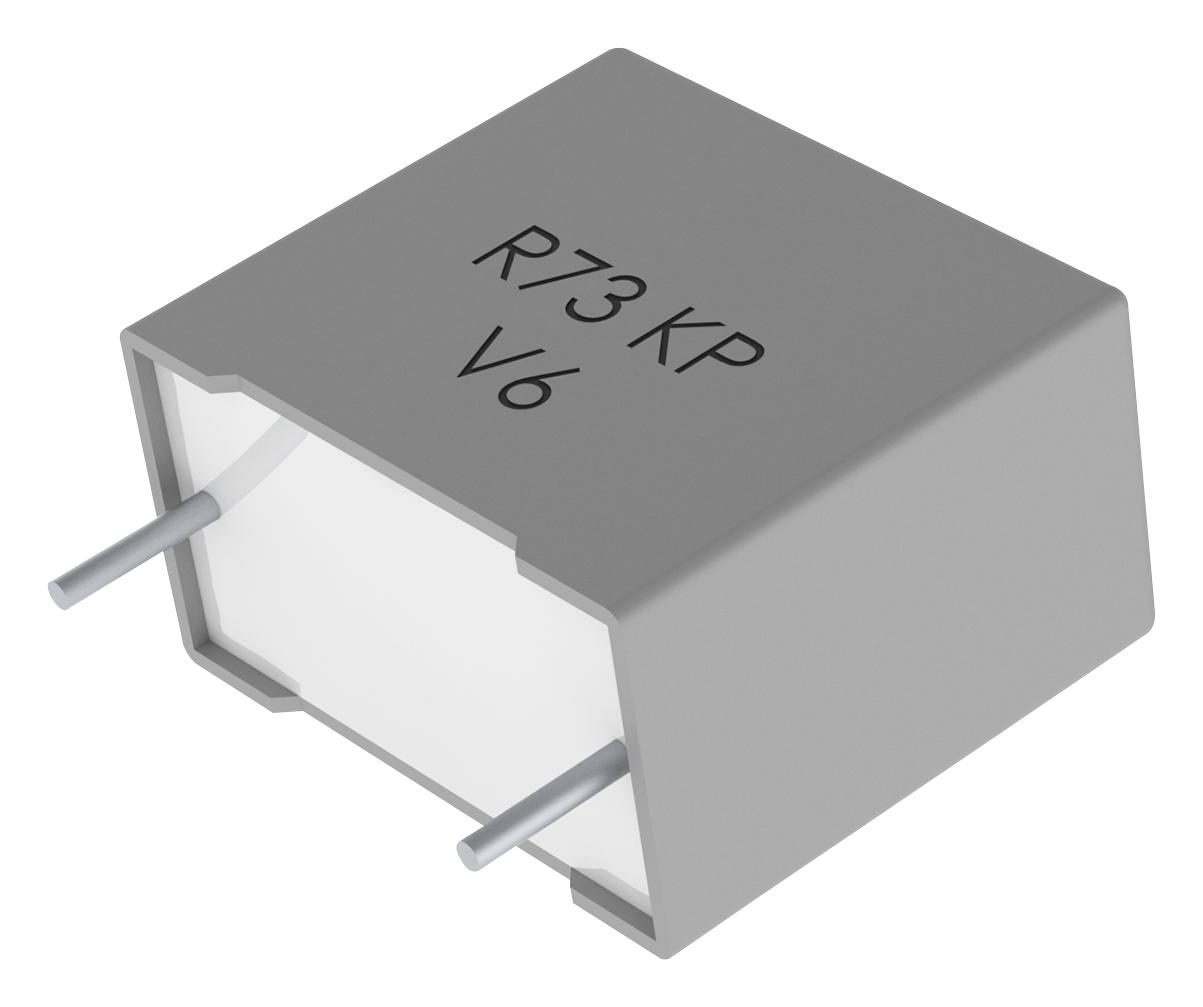

KEMET R73TN22204000J Film Capacitor
The R73TN22204000J is an automotive-grade film/foil polypropylene capacitor designed for high-voltage pulse applications. Featuring a capacitance of 0.022 uF ±5%, it operates at 1600 VDC and withstands temperatures from -55°C to +105°C. Its radial H style with wire leads ensures reliable installation, and it complies with RoHS and AEC-Q200 standards. The capacitor offers low dissipation factor, insulation resistance of 100 GOhms, and a weight of 6.179 grams. Ideal for automotive and pulse circuit applications requiring robust performance and high reliability.
KEMET R73TN22204000J Film Capacitor Specifications:
- Capacitance: 0.022 uF ±5%
- Voltage DC: 1600 VDC
- Voltage AC: 450 VAC
- Dielectric: Film/Foil Polypropylene
- Dimensions: Length 26.5mm +0.3/-0.5mm, Height 18.5mm +0.1/-0.5mm, Thickness 40mm +0.2/0.6mm
- Lead Spacing: 22.5mm ±0.4mm
- Operating Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% 1kHz, 0.04% 10kHz
- Insulation Resistance: 100 GOhms
- Weight: 6.179 grams
- RoHS Compliant: Yes
- Packaging: Bag, Quantity: 300 units
- Features: Automotive Grade, Pulse, Reliability in Harsh Conditions
- Certifications: RoHS, AEC-Q200
- Inductance: 18 nH
Buy the Buy KEMET R73TN22204000J Part Number 73TN222040003 Online
Purchase the KEMET R73TN22204000J film capacitor online today and enjoy reliable high-voltage performance for automotive and pulse applications. With a capacitance of 0.022 uF and a voltage rating of 1600 VDC, this capacitor is built to withstand demanding conditions. Its dimensions ensure easy installation, and it meets all essential standards, including RoHS and AEC-Q200. Trusted for durability and stability, this capacitor is ideal for demanding electronics requiring high reliability and long service life in automotive environments.
Order your KEMET Series R73TN22204000J capacitor today and enhance your automotive and pulse circuit projects with dependable high-voltage performance.
Frequently Asked Questions
Where can I buy KEMET R73TN22204000J?
You can click on the BUY or RFQ button to purchase R73TN22204000J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R73TN22204000J?
You can download the R73TN22204000J datasheet or visit the KEMET website for support.
Who is the manufacturer of R73TN22204000J?
KEMET
