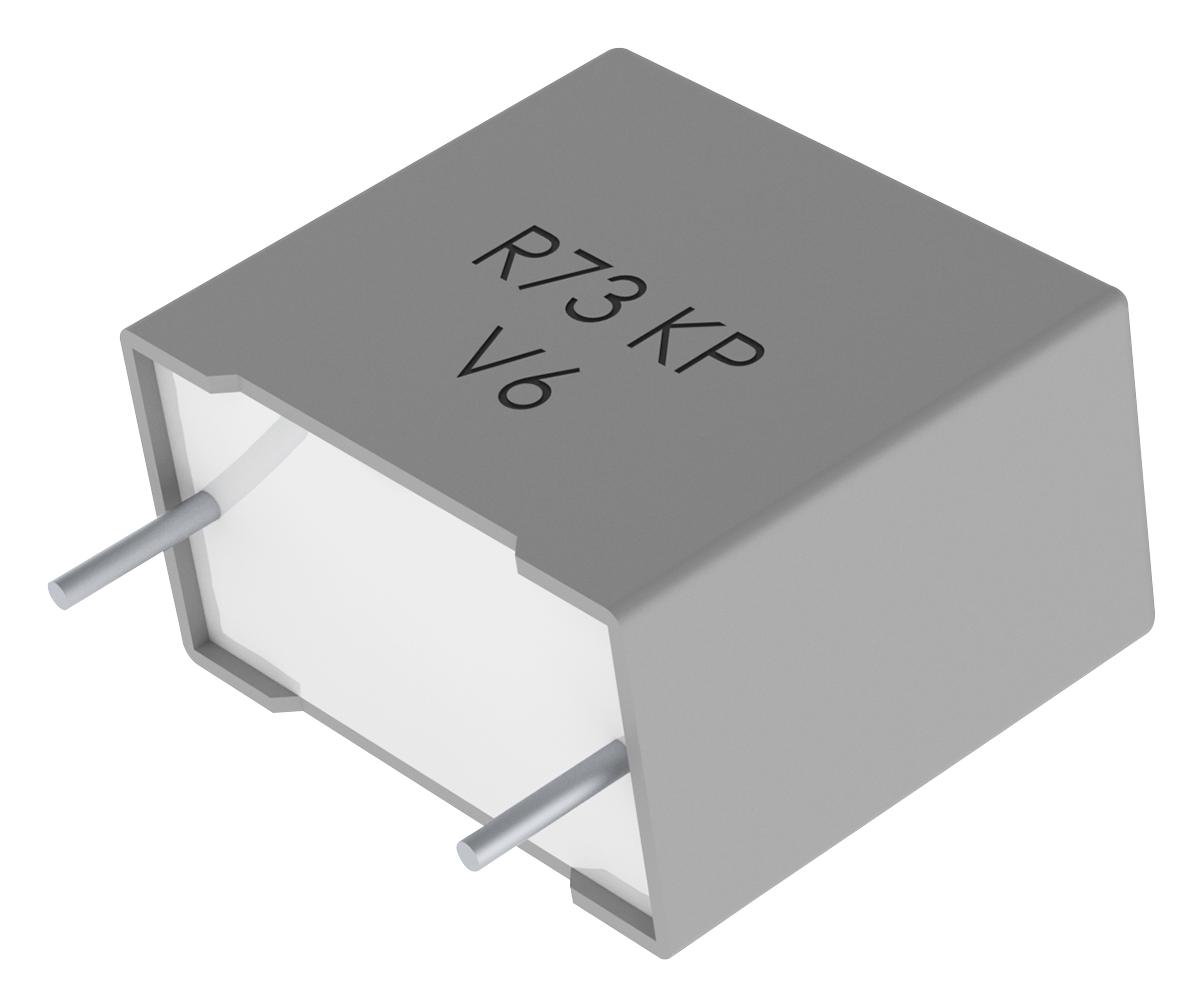

KEMET R73UI02204000J Automotive Film Capacitor
The R73U102204000J is an automotive-grade film capacitor manufactured by KEMET, designed for pulse applications. Featuring polypropylene dielectric, it offers high voltage handling up to 2000 VDC, a capacitance of 220 pF with a 5% tolerance, and a operating temperature range from -55°C to +105°C. Its radial lead style with wire leads ensures reliable connectivity. Suitable for automotive and pulse-sensitive circuits, it combines durability, RoHS compliance, and high insulation resistance for demanding electronic environments, making it an ideal choice in modern automotive or industrial applications.
KEMET R73UI02204000J Automotive Film Capacitor Specifications:
- Series: R73
- Dielectric: Film/Foil Polypropylene
- H Style: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead: Wire Leads
- Qualification: AEC-Q200
- Component Weight: 1.259 grams
- L (Length): 18mm +0.3/-0.5mm
- H (Height): 11mm +0.1/-0.5mm
- Capacitance: 220 pF
- Capacitance Tolerance: 5%
- Voltage AC: 500 VAC
- Voltage DC: 2000 VDC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz
- Packaging: Bulk, Bag
- Insulation Resistance: 100 GOhms
- Packaging Quantity: 1000
- Maximum dVdt: 54000 V/us
- Inductance: 10 nH
Buy the KEMET Series R73 Film Capacitor: R73U102204000J
Purchase the KEMET automotive-grade film capacitor, model R73U102204000J, online today. This high-quality component features polypropylene dielectric for reliable pulse and high-voltage applications. With a capacitance of 220 pF at 2000 VDC, it’s designed to withstand extreme temperatures from -55°C to +105°C. Its radial wire leads ensure secure connections for automotive and industrial circuits. RoHS compliant and built with precision, this capacitor offers robust insulation resistance and excellent electrical performance, making it an essential component for demanding electronic systems.
Get KEMET R73U102204000J today—built for durability and high-voltage pulse applications.
Frequently Asked Questions
Where can I buy KEMET R73UI02204000J?
You can click on the BUY or RFQ button to purchase R73UI02204000J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R73UI02204000J?
You can download the R73UI02204000J datasheet or visit the KEMET website for support.
Who is the manufacturer of R73UI02204000J?
KEMET
