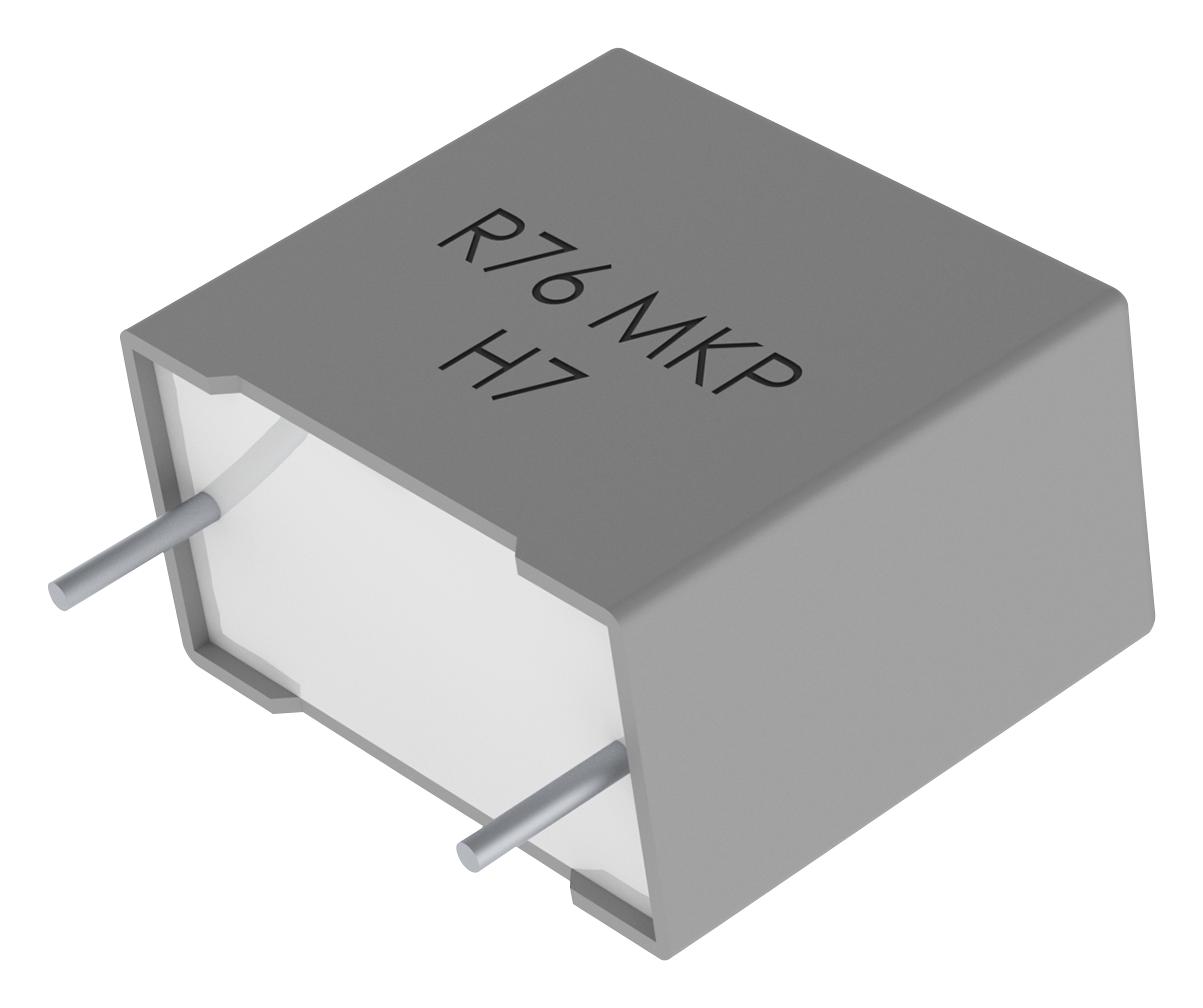

KEMET R76PD1470Z340J Automotive Film Capacitor
The R76PD1470Z340J is an automotive-grade film capacitor with double metallized polypropylene dielectric. It features radial lead style with wire leads, a capacitance of 4700 pF ±5%, and a voltage rating of 630 VDC. Designed for pulse and high-reliability automotive applications, it operates within a temperature range of -55°C to +110°C. The capacitor offers low dissipation factor, high insulation resistance, and is RoHS compliant, ensuring durability and safety in demanding environments. Its compact dimensions include a 10mm length and 7.5mm lead spacing, making it ideal for circuit board integration.
KEMET R76PD1470Z340J Automotive Film Capacitor Specifications:
- Series: R76
- Dielectric: Double Metallized Polypropylene
- Style: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead Type: Wire Leads
- Qualification: AEC-Q200
- Component Weight: 0.73g
- Dimensions: Length 10mm +0.2/-0.5mm, Lead Spacing 7.5mm +/-0.4mm
- Capacitance: 4700 pF
- Capacitance Tolerance: ±5%
- Voltage DC: 630 VDC
- Voltage AC: 250 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz, 0.1% at 100kHz
- Insulation Resistance: 100 GOhms
- Maximum Dissipation Voltage: 2800 V
- Resistance: 135.45 mOhms (at 100kHz)
- Ripple Current: rated at 85°C
- Inductance: 8 nH
Buy the Buy KEMET R76PD1470Z340J Part Number R76PD1470Z340J Online
Discover the high-reliability automotive-grade film capacitor, R76PD1470Z340J, featuring double metallized polypropylene dielectric. With 4700 pF capacitance at 630 VDC, it provides excellent pulse and filtering performance. Its radial lead configuration ensures easy mounting, while its operation range from -55°C to +110°C makes it suitable for demanding automotive and industrial environments. Its low dissipation factor, high insulation resistance, RoHS compliance, and compact dimensions enhance circuit reliability and longevity. Perfect for applications requiring stable performance and durability in harsh conditions.
Get KEMET R76PD1470Z340J today—designed for reliable automotive and pulse applications with high insulation resistance and durable construction.
Frequently Asked Questions
Where can I buy KEMET R76PD1470Z340J?
You can click on the BUY or RFQ button to purchase R76PD1470Z340J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76PD1470Z340J?
You can download the R76PD1470Z340J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76PD1470Z340J?
KEMET
