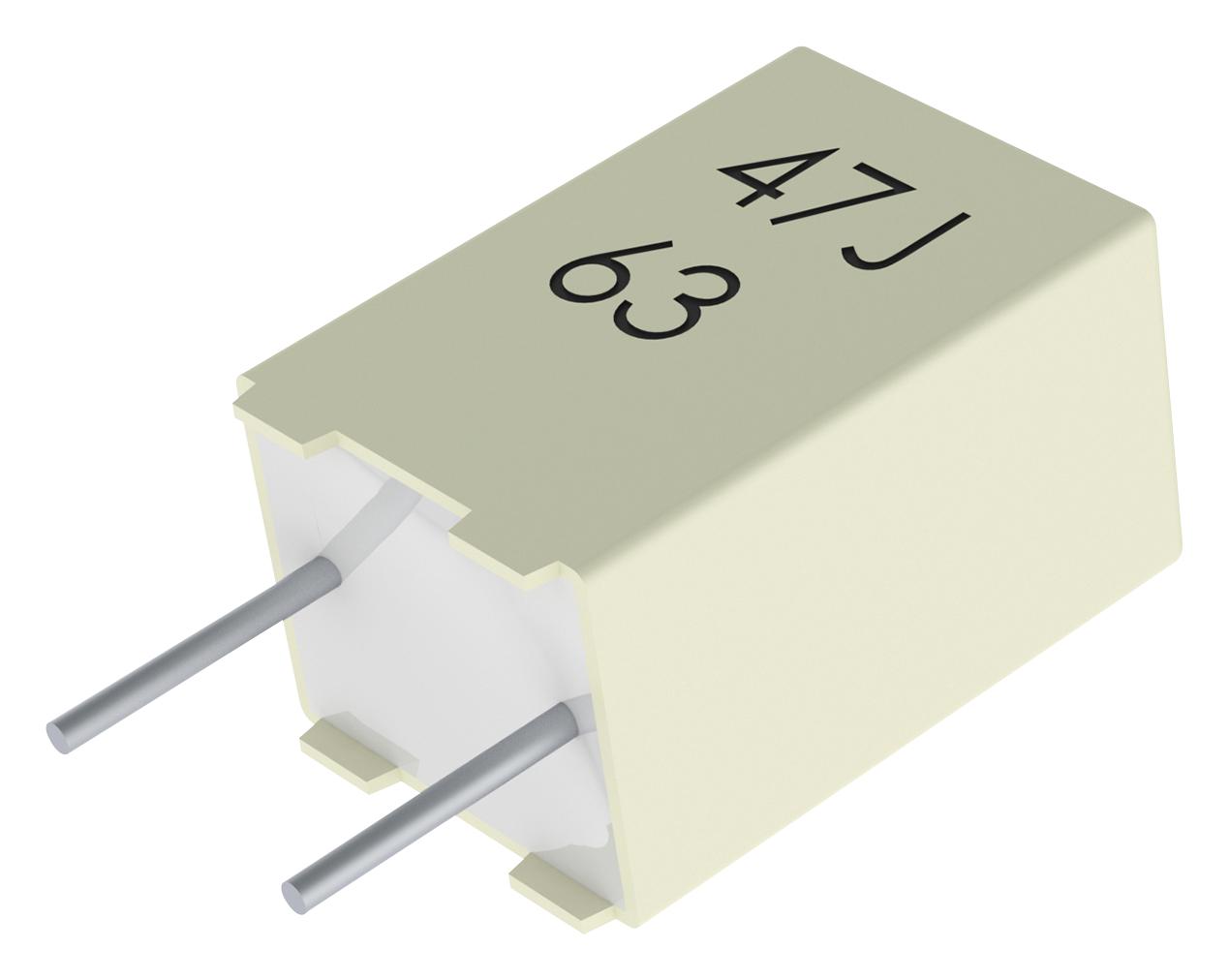

KEMET R82EC1220Z350J Metallized Polyester Capacitor
The R82EC1220Z350J is a high-performance metallized polyester stacked capacitor designed for automotive applications. Featuring a capacitance of 2200 pF with a tolerance of 5% and rated voltage of 100 VDC, this capacitor operates within a temperature range of -55°C to +105°C. Its compact size includes dimensions of 7.2mm length, 2.5mm thickness, and a lead spacing of 5mm. Built with RoHS compliance and qualified under AEC-Q200, it offers reliable performance for demanding electrical circuits in automotive and industrial environments.
KEMET R82EC1220Z350J Metallized Polyester Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Voltage AC: 63 VAC
- Operating Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Lead Spacing: 5mm
- Dimensions: Length 7.2mm +0.2mm, Width 2.5mm +0.1mm, Height 6.5mm +0.1mm
- Insulation Resistance: 15 GOhms
- Dissipation Factor: 0.05%
- Inductance: 7nH
- RoHS: Yes
- Qualification: AEC-Q200
- Weight: 0.23g
Buy the KEMET R82EC1220Z350J – Reliable Metallized Polyester Capacitor for Industrial Applications
Enhance your electronic systems with the reliable KEMET R82EC1220Z350J metallized polyester capacitor. Designed for automotive and industrial use, it offers 2200 pF capacitance at 100 VDC, with a temperature range of -55°C to +105°C. Compact and RoHS compliant, it features a lead spacing of 5mm, ensuring easy integration into your circuit board. Its high insulation resistance and low dissipation factor guarantee durable performance in demanding environments. Order online now to secure this dependable component for your next project.
Order your KEMET R82EC1220Z350J high-quality metallized polyester capacitor today and ensure reliable performance in your automotive and industrial projects.
Frequently Asked Questions
Where can I buy KEMET R82EC1220Z350J?
You can click on the BUY or RFQ button to purchase R82EC1220Z350J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R82EC1220Z350J?
You can download the R82EC1220Z350J datasheet or visit the KEMET website for support.
Who is the manufacturer of R82EC1220Z350J?
KEMET
