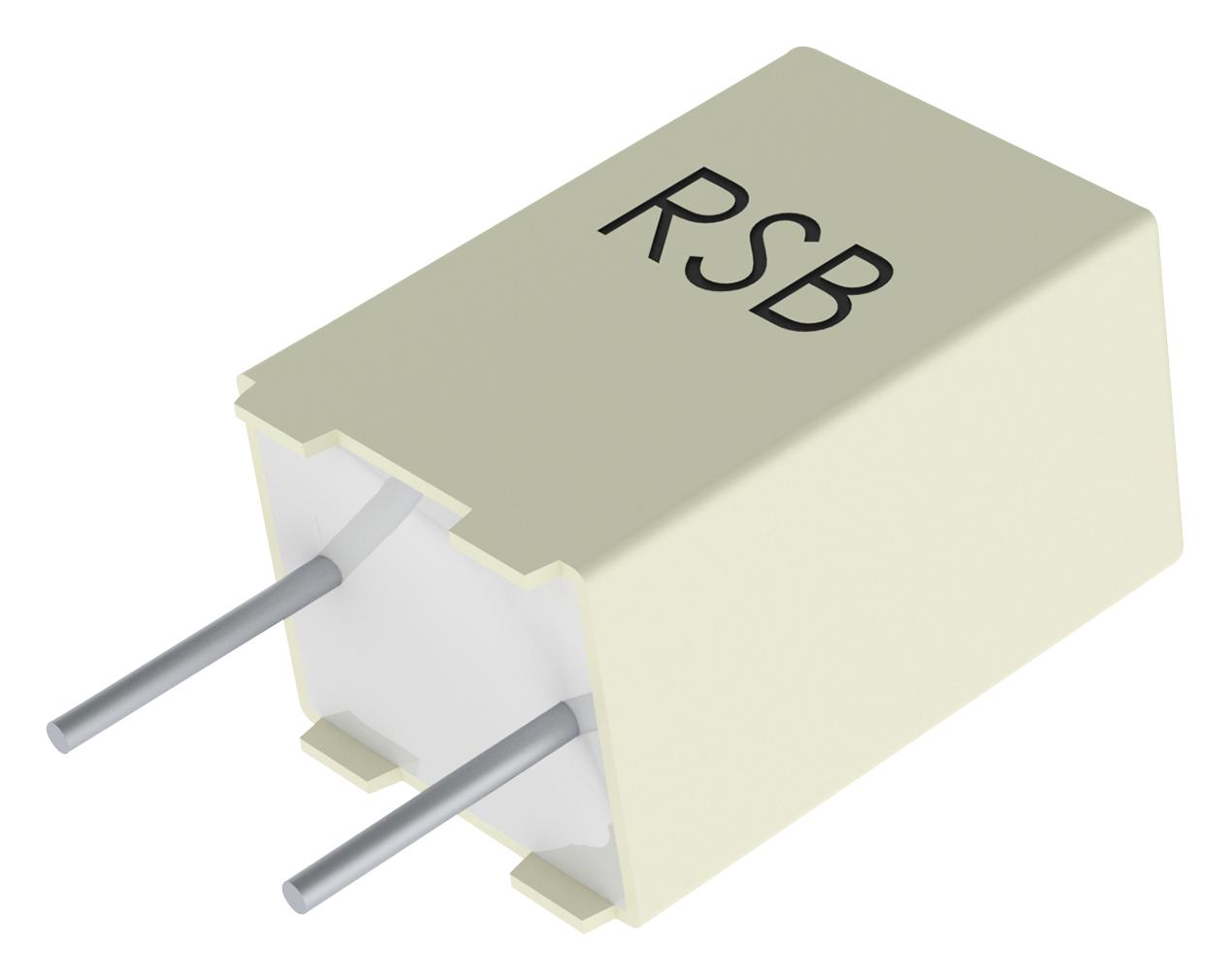

KEMET RSBEC3330Z300K Automotive Film Capacitor
This high-quality automotive-grade film capacitor features a 0.33 uF capacitance, 10% tolerance, and 100 VDC rating. It is designed for multipurpose, industrial, and automotive applications, offering excellent insulation resistance of 15 GOhms and a dissipation factor of 0.80% at 1kHz. The capacitor is metalized polyester stacked dielectric, with a radial style and wire leads. Operating within a temperature range of -55°C to +125°C, it complies with AEC-Q200 standards for automotive use and is supplied in bulk packaging of 1000 units for easy integration into electronics projects.
KEMET RSBEC3330Z300K Automotive Film Capacitor Specifications:
- Capacitance: 0.33 uF
- Tolerance: 10%
- Voltage DC: 100 VDC
- Voltage AC: 63 VAC
- Operating Temperature Range: -55°C to +125°C
- Rated Temperature: 85°C
- Dimensions: Length 7.2mm +/-0.3mm, Width 6mm +0.2mm, Lead Spacing 5mm +/-0.4mm
- Insulation Resistance: 15 GOhms
- Dissipation Factor: 0.80% at 1kHz
- Max dV/dt: 300 V/μs
- Inductance: 7nH
- Dielectric: Metallized Polyester Stacked
- Style: Radial, Wire Leads
- Certification: AEC-Q200
- Packaging: Bulk, Bag, Quantity: 1000
Buy the Buy KEMET RSBEC3330Z300K Automotive Grade Capacitor Online
Purchase the KEMET RSBEC3330Z300K automotive-grade film capacitor online for reliable performance in automotive and industrial applications. This 0.33 microfarad capacitor rated at 100 VDC offers excellent insulation resistance of 15 GOhms and a dissipation factor of 0.80%. Its high stability within a temperature range of -55°C to +125°C makes it suitable for demanding environments. With wire leads and radial design, this capacitor ensures easy integration into various electronic circuits, backed by AEC-Q200 certification and bulk packaging for efficient procurement.
Get KEMET RSBEC3330Z300K today—designed for automotive stability and long-term reliability.
Frequently Asked Questions
Where can I buy KEMET RSBEC3330Z300K?
You can click on the BUY or RFQ button to purchase RSBEC3330Z300K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part RSBEC3330Z300K?
You can download the RSBEC3330Z300K datasheet or visit the KEMET website for support.
Who is the manufacturer of RSBEC3330Z300K?
KEMET
