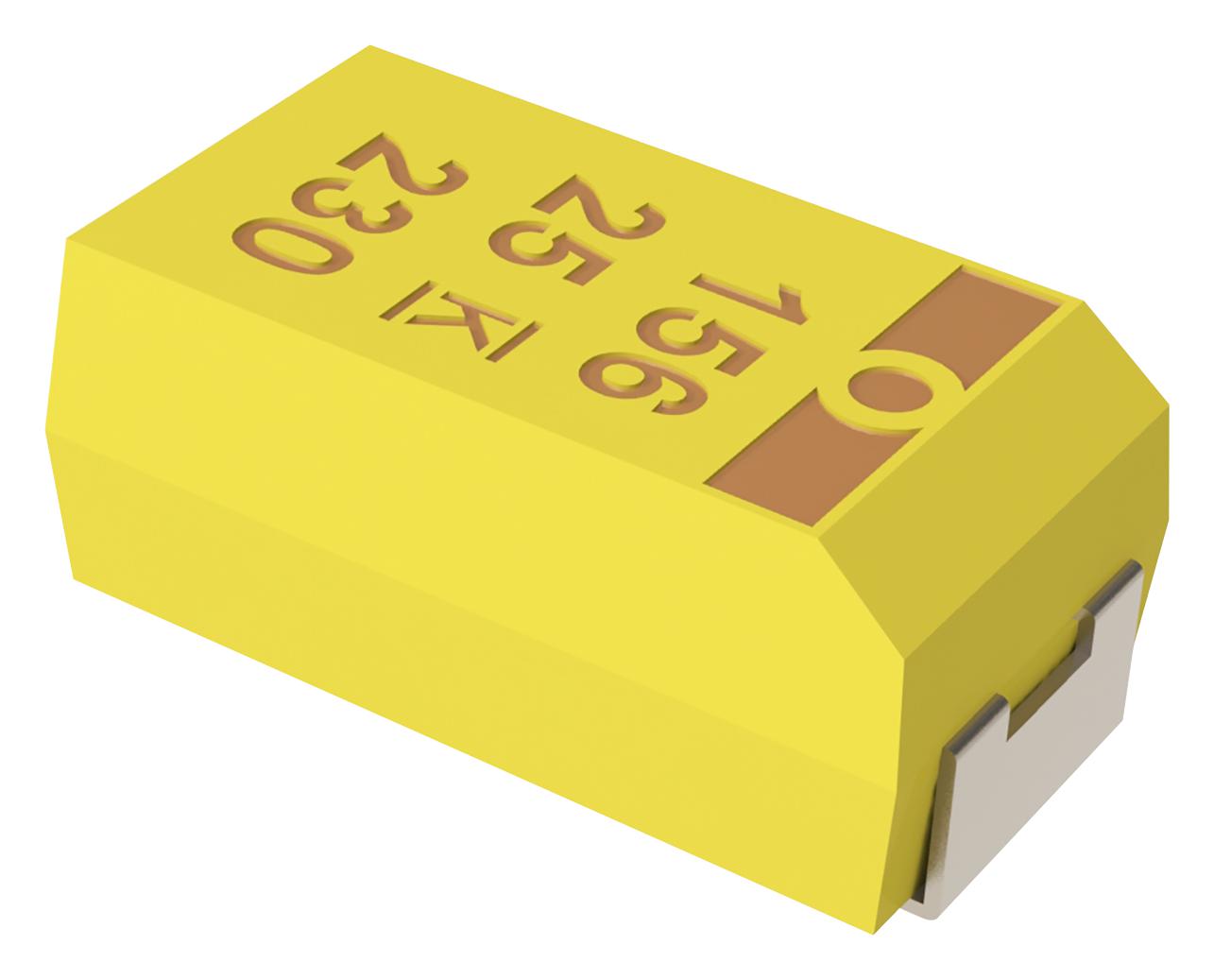

KEMET T494A106K016AT SMD Ceramic Capacitor
The KEMET T494A106K016AT is a reliable SMD ceramic capacitor with a capacitance of 10 uF, rated at 16 VDC, featuring low ESR and molded MnO2 dielectric. Designed for surface-mount technology, it offers high stability, low leakage current of 1.6 uA, and operates within a temperature range of -55°C to +125°C. Its compact footprint (3.2mm x 1.6mm) makes it ideal for space-sensitive applications in electronics, providing excellent performance with low dissipation factor of 8% at 120Hz, suitable for high-frequency filtering and bypassing in modern circuit designs.
KEMET T494A106K016AT SMD Ceramic Capacitor Specifications:
- Capacitance: 10 uF
- Capacitance Tolerance: 10%
- Voltage DC: 16 V
- Temperature Range: -55°C to +125°C
- Rated Temperature: 85°C
- Dissipation Factor: 8% at 120Hz 25°C
- Resistance: 3 Ohms at 100kHz 25°C
- Leakage Current: 1.6 uA (5 min 25°C)
- Ripple Current: 142.2 mA RMS at 85°C, 63.2 mA at 125°C
- Termination: Tin
- Series: 1494
- Dielectric: MnO2 Tantalum
- Style: SMD Chip
- RoHS Compliant: Yes
- Packaging: T&R, 178 mm, Quantity: 2000 units
- Dimensions: Length 3.2mm ±0.2mm, Width 1.6mm ±0.2mm, Height Max 1.8mm
- Weight: 58.6 mg
- Shelf Life: 156 Weeks
- MSL: 1
Buy the KEMET T494A106K016AT – Reliable MnO2 Tantalum Capacitor for Industrial Applications
Purchase the high-quality KEMET T494A106K016AT SMD ceramic capacitor online today. This low ESR MnO2 dielectric component is ideal for high-frequency filtering, bypassing, and stabilizing voltage in compact electronic circuits. Its 10 uF capacitance, 16 VDC rating, and temperature range of -55°C to +125°C ensure reliable performance across various operating conditions. With RoHS compliance and a robust 156-week shelf life, this capacitor is perfect for industrial, automotive, and consumer device applications, ensuring long-lasting durability and high stability in your designs.
Get KEMET T494A106K016AT today—built for precision, low ESR, and long-lasting durability in electronic filtering and power supply circuits.
Frequently Asked Questions
Where can I buy KEMET T494A106K016AT?
You can click on the BUY or RFQ button to purchase T494A106K016AT from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T494A106K016AT?
You can download the T494A106K016AT datasheet or visit the KEMET website for support.
Who is the manufacturer of T494A106K016AT?
KEMET
