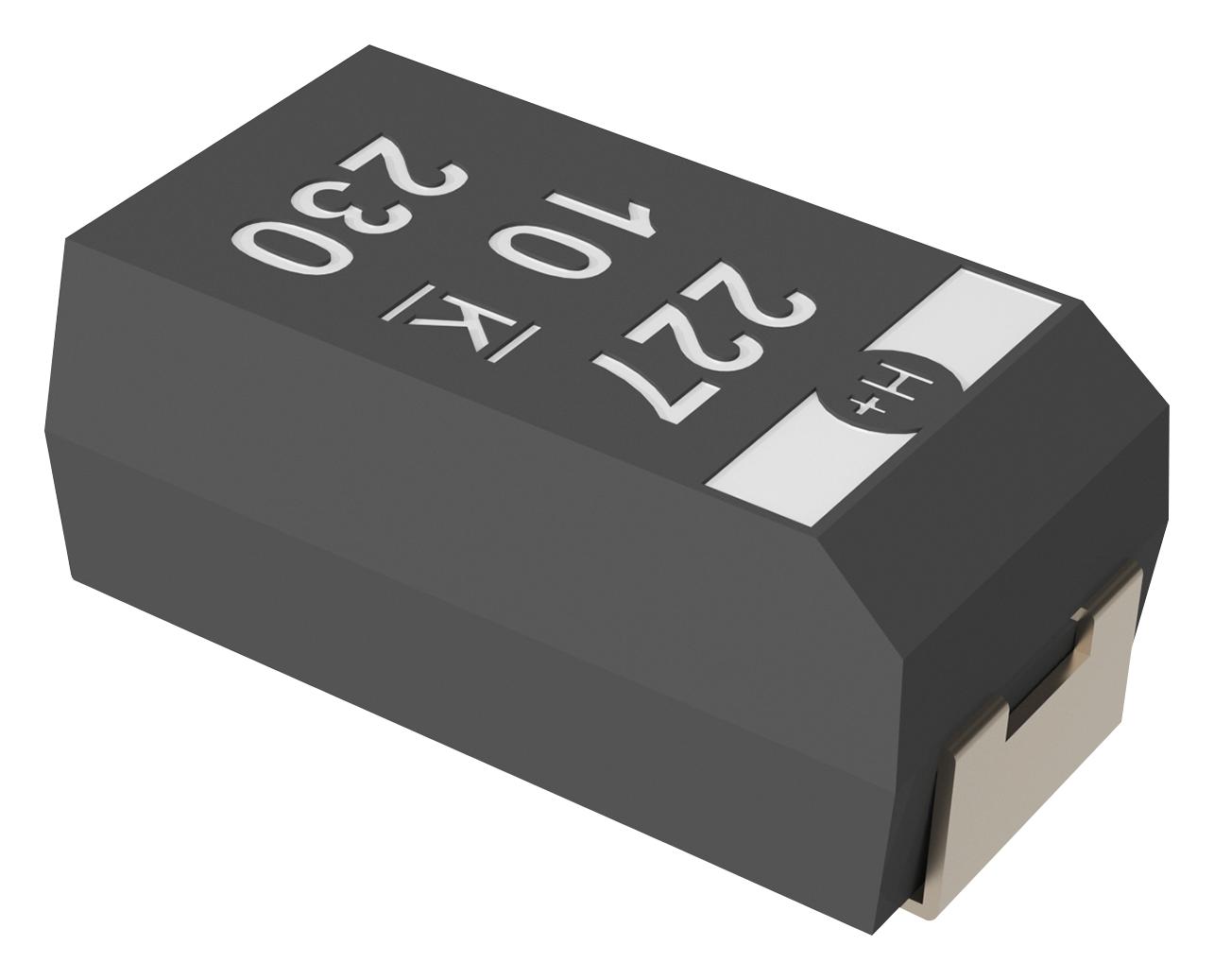

KEMET T499A335K006ATE8K0 Automotive Grade Tantalum Capacitor
The T499 Series automotive-grade tantalum surface mount capacitors by KEMET are designed for high-temperature applications up to 175°C, offering excellent reliability in automotive and industrial environments. Featuring advanced MnO dielectric, RoHS compliance, and optional gold or standard tin-plated terminations, these capacitors provide precise capacitance values from 0.15 uF to 220 uF with tolerances of +10% or +20%. Suitable for decoupling, filtering, and power management in microelectronic control modules, DC/DC converters, and telecommunication devices, they withstand surge currents, environmental stresses, and rigorous testing standards including MIL-STD-202 and AEC-Q200.
KEMET T499A335K006ATE8K0 Automotive Grade Tantalum Capacitor Specifications:
- Capacitance Range: 0.15 uF to 220 uF
- Tolerance: +10% and +20%
- Voltage Rating: 6 to 50 VDC
- Operating Temperature: -55°C to +175°C
- Leakage Current: <0.01 CV (pA)
- RoHS Compliant (6/6), lead-free terminations
- Reflow Temperature: 236°C (peak), Max 30 sec
- Endurance: 2000 hours at 175°C
- Surge Current Tested, MIL-STD-202
- Case Sizes: 3216, 3528, 6032, 7343, 816-18, 8216-48, etc.
- Packaging: Embossed tape on 7” or 13” reels per EIA-481
- Polarity Marked (+) with beveled edge and stripe
- Construction: Tantalum Dielectric with epoxy casing
- Compliance: AEC-Q200, MIL-STD-202, RoHS
- Solder Compatibility: Wave, reflow, IR, vapor phase techniques
Buy the KEMET 1499A335 U+2013 Reliable Automotive Grade Tantalum Capacitors for Industrial Applications
Get your KEMET automotive-grade tantalum capacitor today online and benefit from high-temperature performance up to 175°C, excellent reliability, and RoHS compliance. Ideal for decoupling, filtering, and power management in automotive electronics, these capacitors provide precise capacitance values with robust testing standards like MIL-STD-202 and AEC-Q200. Secure your supply chain with convenient online ordering and ensure your projects meet the highest standards of durability and environmental compliance.
Order your KEMET Series1499A335 automotive-grade tantalum capacitor today and ensure high reliability for demanding industrial and automotive projects.
Frequently Asked Questions
Where can I buy KEMET T499A335K006ATE8K0?
You can click on the BUY or RFQ button to purchase T499A335K006ATE8K0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T499A335K006ATE8K0?
You can download the T499A335K006ATE8K0 datasheet or visit the KEMET website for support.
Who is the manufacturer of T499A335K006ATE8K0?
KEMET
