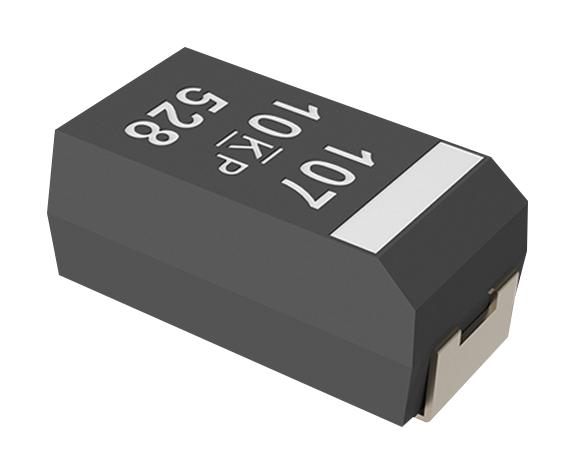

KEMET T521V107M016ATE040 Polymer Tantalum Capacitor
The T521V107M016ATE040 is a surface-mount polymer tantalum capacitor featuring a low ESR of 40 mOhms and a capacitance of 100 uF with ±20% tolerance. It operates at 16V DC, suitable for high-frequency applications like DC-DC conversion and power decoupling. This non-combustible, molded component complies with RoHS standards, withstands temperatures from -55°C to +125°C, and offers a long lifespan of 2,000 hours at 125°C. Its compact size with a footprint of 7.3mm x 2.4mm makes it ideal for space-constrained electronic devices requiring reliable, high-performance power filtering.
KEMET T521V107M016ATE040 Polymer Tantalum Capacitor Specifications:
- Capacitance: 100 uF
- Tolerance: ±20%
- Voltage Rating: 16V DC
- Dimensions: Length 7.3mm ±0.3mm, Height Max 2mm, Width 2.4mm ±0.1mm
- Temperature Range: -55°C to +125°C
- Life: 2000 hours at 125°C
- ESR: 40 mOhms
- Leakage Current: 160 uA (5 min at 25°C)
- Ripple Current: 2600 mA (rms, 85°C), 650 mA (rms, 125°C)
- Resistance: 40 mOhms at 100kHz 25°C
- Dissipation Factor: 10% at 120Hz 25°C
- Packaging: T&R, 178mm, quantity 1000
- Compliance: RoHS, Molded, Non-Combustible
Buy the Buy KEMET T520 Series Polymer Tantalum Part Number T521V107M016ATE040 Online
Order the KEMET T521V107M016ATE040 polymer tantalum capacitor online today. Designed for high-frequency power filtering with low ESR of 40 mOhms, this 100 uF capacitor is suitable for compact electronic devices. It features a 16V DC voltage rating, operates across -55°C to +125°C, and withstands 2000 hours at 125°C for long-lasting performance. Its RoHS compliance and surface-mount design make it ideal for high-density power applications, including DC-DC converters, decoupling, and hold-up circuits, ensuring reliable operation and optimal efficiency.
Get KEMET T521V107M016ATE040 today—engineered with low ESR, high ripple current, and compact design for reliable power management.
Frequently Asked Questions
Where can I buy KEMET T521V107M016ATE040?
You can click on the BUY or RFQ button to purchase T521V107M016ATE040 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T521V107M016ATE040?
You can download the T521V107M016ATE040 datasheet or visit the KEMET website for support.
Who is the manufacturer of T521V107M016ATE040?
KEMET
