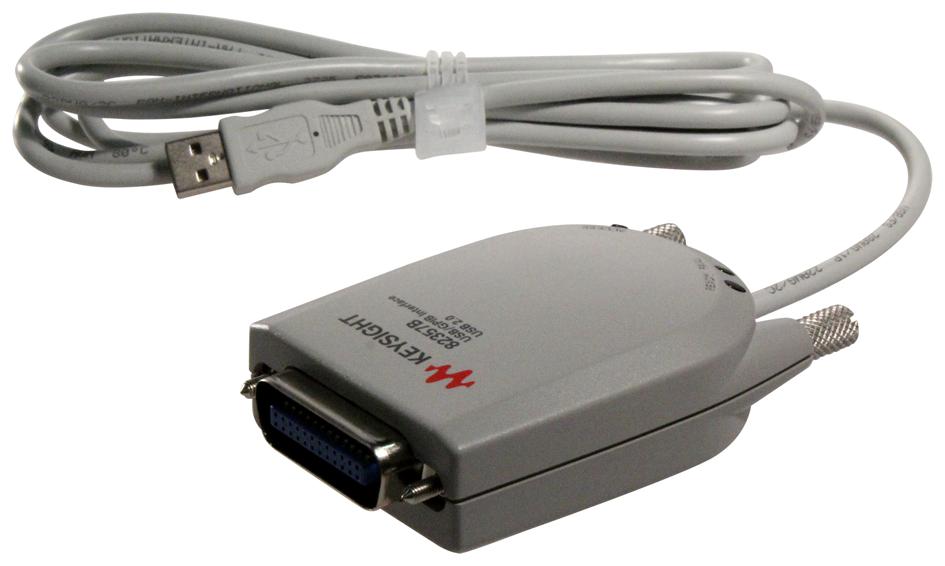

KEYSIGHT TECHNOLOGIES 82357B USB-GPIB Interface

The Keysight Technologies 82357B is a high-speed USB to GPIB interface converter designed for seamless connection between a computer and GPIB instruments. It features a plug-and-play, hot-swappable design that requires no switches, PC cards, or external power supplies. The device supports USB 1.1 (12 Mbps) and is compatible with USB 2.0, utilizing a durable, shielded high-quality USB 2.0 cable rated for 1500 insertion cycles. It allows direct connection to up to 14 GPIB instruments, supporting a maximum transfer rate of 1.15 MB/s. The interface includes IEEE-488.1 and IEEE-488.2 standards, enabling parallel polling (monitoring up to 8 devices simultaneously). It is compatible with industry-standard Keysight IO libraries, SICL, and VISA 2.2. Powered via the USB bus (5V, up to 500mA), it operates within a temperature range of 0°C to 55°C and is certified to IEC 61010-1, UL61010-1, and CSA C22.2 standards. Ideal for test and measurement applications, it comes with the interface converter device, CD-ROM containing IO libraries and programming manuals, ensuring easy integration and reliable data transfer.

View 82357BDatasheet [pdf]

Buy the Keysight 82357B – Reliable USB to GPIB for Industrial Applications

Purchase the Keysight 82357B USB to GPIB interface converter online today for fast, reliable connections between your PC and GPIB instruments. This high-performance, plug-and-play device supports up to 14 instruments with a data transfer rate of 1.15 MB/s. It requires no external power, features durable USB cables, and complies with industry standards including IEEE-488. Its compact size and automatic detection make setup straightforward, ensuring seamless integration into test systems. Ideal for automation and measurement tasks, it enhances productivity, simplifies instrument management, and delivers consistent, dependable performance for your testing needs.

Get Keysight 82357B today—optimized for fast and reliable PC-to-instrument GPIB connections.
