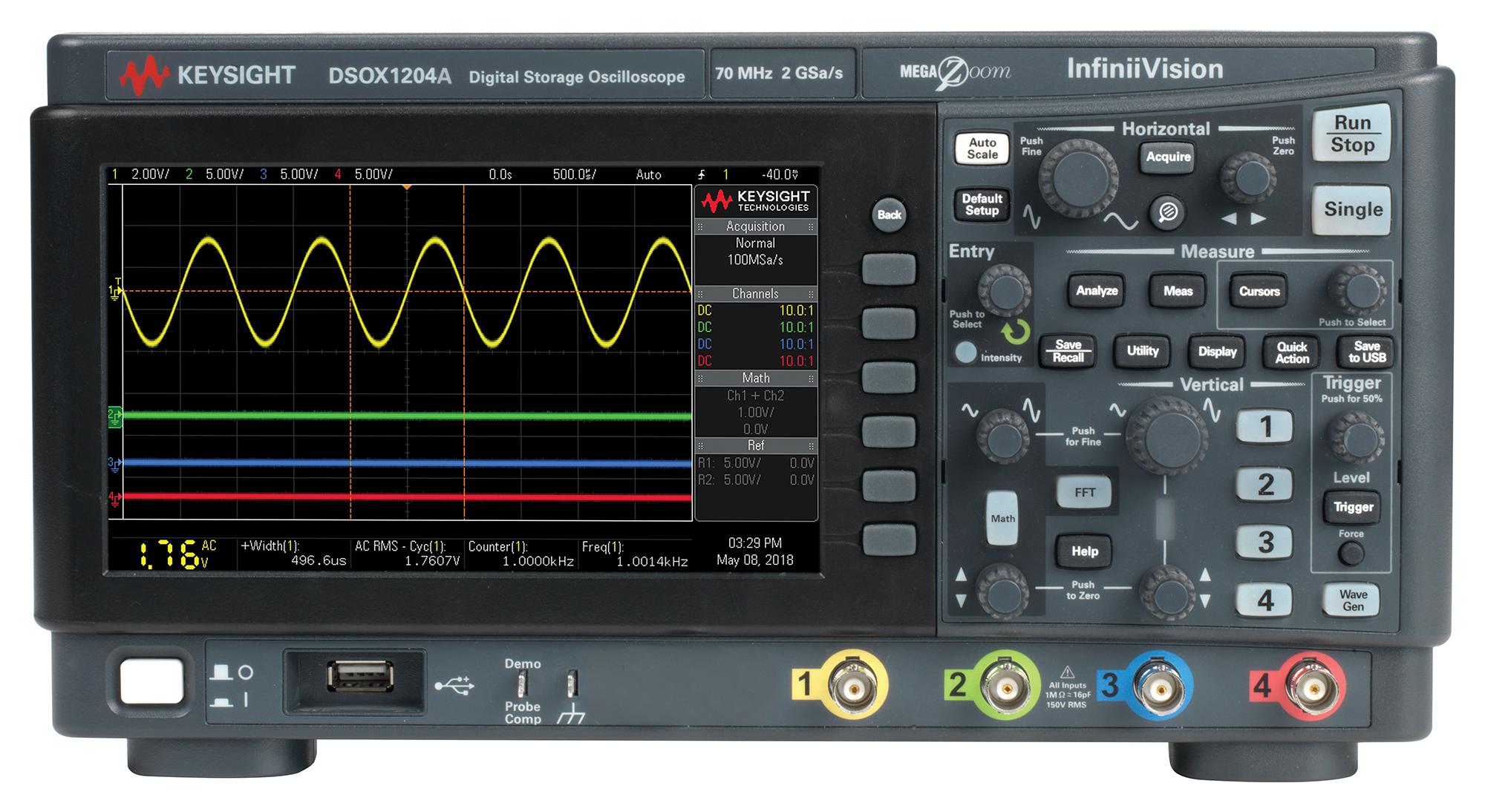

KEYSIGHT TECHNOLOGIES DSOX1204ADSOX1200A100 Digital Storage Oscilloscope
The InfiniiVision 1000 X-Series Digital Storage Oscilloscope, model DSOX1204A, offers a 100 MHz bandwidth upgrade and four analog channels. It features a 2 GSa/s maximum sampling rate and 1 million points memory depth for precise signal analysis. The device has a 7-inch WVGA TFT LCD display and delivers an update rate of 50,000 waveforms per second, enabling quick glitch detection. It includes built-in training signals, comprehensive lab guides, and support for I²C, SPI, UART/RS-232, CAN, and LIN interfaces—ideal for industrial, educational, and research applications. Dimensions are approximately 314mm x 165mm x 130mm, with accessories such as four N2140A probes, calibration certificate, and a three-year warranty.
KEYSIGHT TECHNOLOGIES DSOX1204ADSOX1200A100 Digital Storage Oscilloscope Specifications:
- Bandwidth: 100 MHz (upgradable with D1200BW1A, D1200BW2A, D1200BW3A options)
- Channels: 4 analog channels
- Sampling Rate: 2 GSa/s maximum
- Memory Depth: 1 Mpts
- Display: 7-inch WVGA TFT LCD
- Waveform Update Rate: 50,000 waveforms/sec
- Input coupling: DC, AC with 10 Hz cutoff
- Input Impedance/Capacitance: 1 MΩ + 2% / 16 pF + 3 pF
- Vertical Sensitivity Range: 500 μV/div to 10 V/div
- Maximum Input Voltage: 150 Vrms, 200 Vpk
- Dimensions: approximately 314mm x 165mm x 130mm
- Weight: approximate 3.23 kg
- Connection ports: USB 2.0, LAN (model specific), standard ports support remote control
- Built-in functions: Four probes included, 20 MHz function generator (models with WaveGen), integrated digital voltmeter and frequency counter
- Environmental ratings: 0°C to +50°C, Max 95% RH
- Power supply: 100-240 V, 50/60 Hz
- Certifications: IEC 61010, EMC directives
Buy the Buy Keysight DSOX1204A Part Number DSOX1200A100 Online
Order the Keysight DSOX1204A oscilloscope online today to get a versatile instrument with 100 MHz bandwidth, 4 channels, and 2 GSa/s sampling rate. Its 7-inch WVGA display and 50,000 waveforms/sec update rate make signal analysis fast and accurate. Perfect for industrial, educational, and research environments, this scope offers high-resolution measurements, built-in signals, and comprehensive software tools. With accessories including four passive probes, a calibration certificate, and a three-year warranty, buy now to enhance your testing capabilities easily and efficiently.
Buy Keysight DSOX1204A now and experience unmatched reliability and professional signal analysis with industry-leading performance.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1204ADSOX1200A100?
You can click on the BUY or RFQ button to purchase DSOX1204ADSOX1200A100 from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1204ADSOX1200A100?
You can download the DSOX1204ADSOX1200A100 datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1204ADSOX1200A100?
KEYSIGHT TECHNOLOGIES
