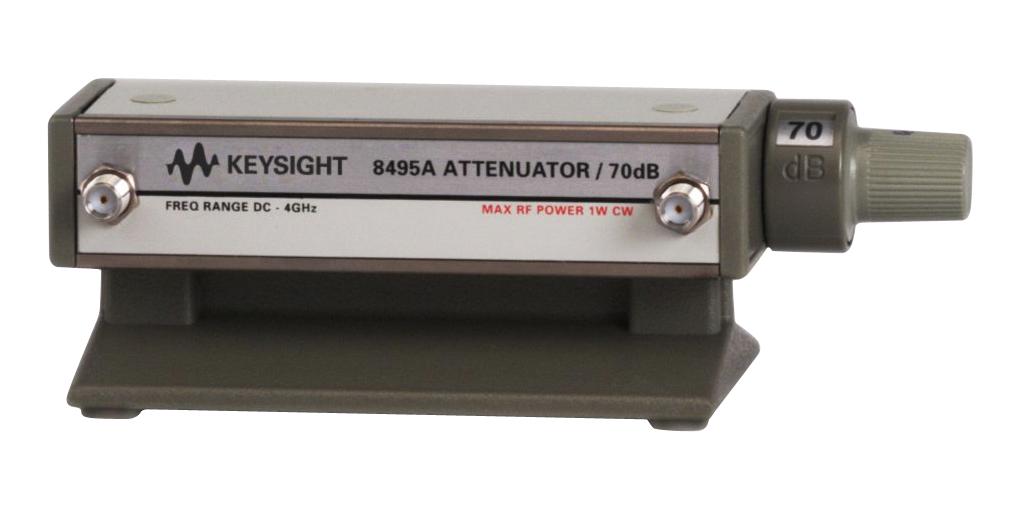

KEYSIGHT TECHNOLOGIES 8495A002 Manual RF Attenuator
The model 8495A/002 is a manual step attenuator designed for DC to 4 GHz frequency range. It offers precise attenuation in 10 dB steps from 0 to 70 dB, with high reliability and repeatability. The device features gold-plated leaf springs that ensure long service life exceeding 5 million cycles and an attenuation repeatability typically within 0.01 dB. To enhance measurement accuracy, NIST-traceable data for SWR and attenuation can be provided as an optional feature. Key specifications include an insertion loss of 0.68 dB at 0 dB attenuation, a maximum SWR of 1.35, and RF input power limits of 1 W (average) and 100 W (peak).
KEYSIGHT TECHNOLOGIES 8495A002 Manual RF Attenuator Specifications:
- Frequency Range: DC to 4 GHz
- Attenuation Range: 0 to 70 dB in 10 dB steps
- Insertion Loss: 0.68 dB at 0 dB attenuation
- Maximum SWR: 1.35
- RF Input Power: 1 W (average), 100 W (peak)
- Service Life: Over 5 million cycles
- Repeatability: Typically within 0.01 dB
- Connectors: N (f)
- Dimensions: Compact design suitable for bench or rack mounting
- Material: High-quality RF-rated components for durability
- NIST-traceable data available optionally for SWR and attenuation
- Reliable performance with minimal measurement uncertainty
- Ideal for calibration and test systems requiring precise signal control
- Gold-plated leaf springs ensure long-term contact integrity
- Designed for high reliability and consistent attenuation accuracy
Buy the Keysight 8495A002 – Reliable Manual Step Attenuator for Industrial Applications
Elevate your RF measurement capabilities with the Keysight 8495A002 manual RF attenuator, designed for DC to 4 GHz frequency range. This device provides precise 10 dB steps up to 70 dB attenuation, ensuring high repeatability and long service life exceeding 5 million cycles. Its low insertion loss of 0.68 dB and maximum SWR of 1.35 guarantee accurate and consistent measurements. Optional NIST-traceable calibration data enhances measurement accuracy, making it ideal for calibration labs and test systems demanding top-tier reliability and performance.
Buy Keysight 8495A002 now and experience unmatched reliability and precise signal control for your RF testing needs.
