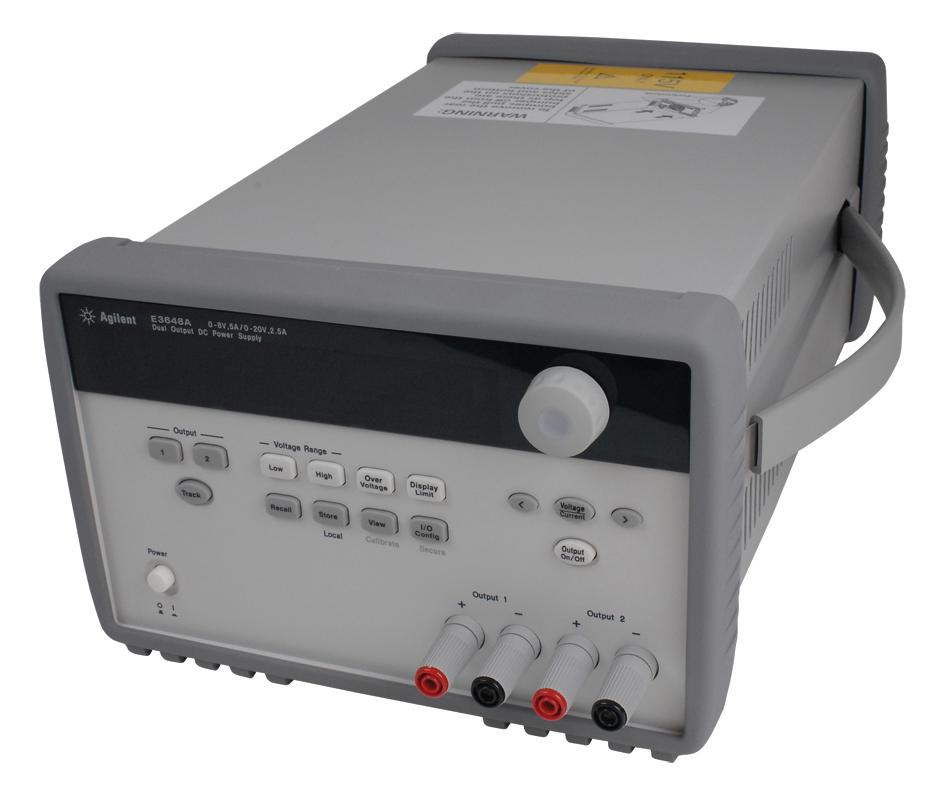

KEYSIGHT TECHNOLOGIES E3648A Dual-Output Programmable Power Supply
The Keysight E3648A is a 100W dual-output programmable power supply ideal for bench testing and automated applications. It features stable power delivery, front and rear terminals, adjustable overvoltage protection, remote sensing, save/recall functions, and selectable dual ranges for flexibility. The high-visibility vacuum fluorescent display, durable handle, and automatic fan speed regulation ensure low noise operation and ease of use. Supports GPIB and RS-232 remote control interfaces, making it suitable for laboratory test, power management, and equipment calibration tasks. Comes with manual, product CD, and power cord for convenient setup.
KEYSIGHT TECHNOLOGIES E3648A Dual-Output Programmable Power Supply Specifications:
- Maximum power: 100 W
- Number of outputs: 2
- DC output ratings: Oto 8V/3A or Oto 35V/0.8A or Oto 8V/5A or Oto 35W/1.4A
- Net weight: 9.2 kg
- Dimensions: 212.8 mm W x 133.0 mm H x 348.3 mm D
- Voltage regulation: < 0.01% + 3 mV
- Current regulation: < 0.01% + 250 pA
- Ripple and noise: Voltage < 5 mVpp/0.5 mVrms; Current < 4 mArms
- Accuracy: < 0.5% + 0.5 V + (% output + offset)
- Resolution: Voltage < 10 mV; Current < 10 mA
- Transient response: < 50 µsec
- Settling time: < 90 msec
- Overvoltage protection: < 0.5% + 0.5 V + (% output + offset)
- Temperature coefficient: < 0.02% + 5 mV per °C
- Input voltage: 100 Vac ±10%
Buy the Keysight Series E3648A Programmable DC Power Supply: E3648A
Enhance your testing and measurement setups with the Keysight E3648A dual-output programmable power supply. Providing 100W of power with stable regulation, remote control via GPIB and RS-232, adjustable overvoltage protection, and dual ranges for versatile applications. Its high-visibility display, rugged handle, and low noise fan ensure ease of use and quiet operation. Perfect for laboratories, R&D, and calibration tasks, it offers save/recall functions and comprehensive manuals, making it an essential tool for precise power management and automated testing environments.
Order your Keysight Series E3648A programmable dual-output power supply today and enhance your testing capabilities with reliable and flexible power solutions.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3648A?
You can click on the BUY or RFQ button to purchase E3648A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3648A?
You can download the E3648A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3648A?
KEYSIGHT TECHNOLOGIES
