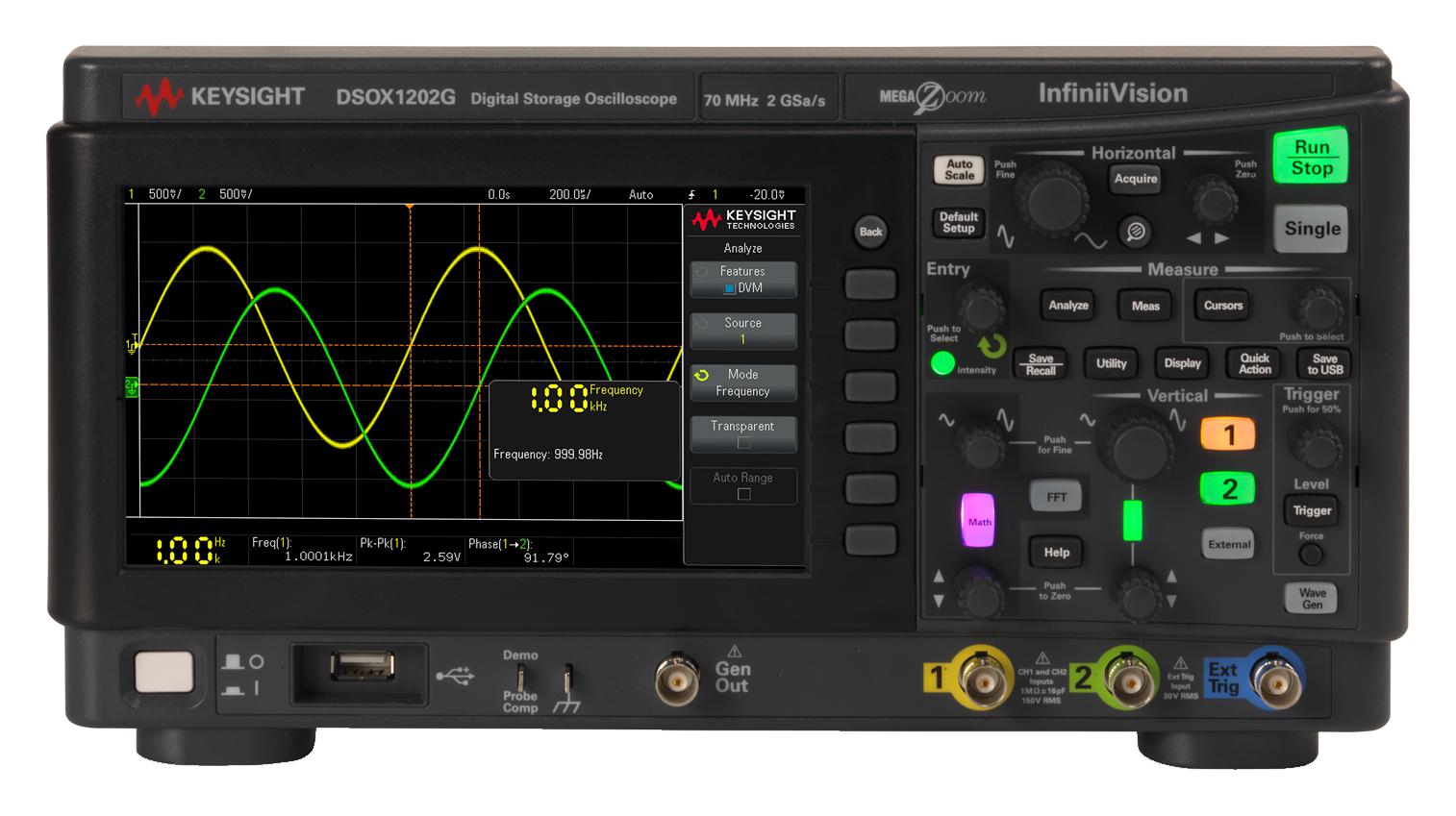

KEYSIGHT TECHNOLOGIES DSOX1202G Digital Storage Oscilloscope
The DSOX1202G is an InfiniiVision 1000 X-series digital storage oscilloscope with a 70 MHz bandwidth, featuring two analog channels and a built-in function generator. It offers professional-level functionality with advanced software analysis capabilities, including standard serial bus analysis for protocols such as I²C, SPI, UART/RS-232, CAN, and LIN. The oscilloscope provides high-speed waveform capture at 200,000 waveforms per second and includes features like Bode plot measurements, mask testing, math operations, FFT analysis, and integrated digital voltmeter and frequency counter. Its user-friendly design boasts a 7-inch TFT LCD WVGA display, intuitive interface, built-in help and training signals, and connectivity options such as USB 2.0 (host and device) and LAN. The package includes the oscilloscope, standard passive probes, calibration certificate, multilingual help, GUI language support, and a localized power cord.
KEYSIGHT TECHNOLOGIES DSOX1202G Digital Storage Oscilloscope Specifications:
- Bandwidth: 70 MHz (base bandwidth)
- Analog channels: 2
- Built-in function generator: 20 MHz
- Maximum sample rate: 2 GSa/s (one- or half-channel operation)
- Maximum memory depth: 2 M points (one- or half-channel operation)
- Waveform update rate: 200,000 waveforms/sec
- Display: 7-inch TFT LCD WVGA
- Connectivity: USB 2.0 (host and device), LAN
- Input coupling: DC, AC (10 Hz cutoff)
- Input impedance/capacitance: 1 MΩ ± 2%, 16 pF
- Vertical resolution: 8 bits
- Maximum input voltage: 150 Vrms, 200 Vpk
- Horizontal timebase range: 5 ns/div to 50 s/div
- Horizontal resolution: 25 ps
- Trigger system: Supports edge, pattern, pulse width, and video triggers
- Trigger modes: Auto, normal, single, force
- Serial Protocols: I²C, SPI, UART/RS-232, CAN, LIN
- Waveform math: Add, subtract, multiply, divide, FFT (magnitude & phase), low-pass filter
- Built-in measurement tools: Digital voltmeter, frequency counter
- Power: 100-240 V, 50/60 Hz; 50 W max
- Dimensions (W x H x D): 314 mm x 165 mm x 130 mm
- Weight: 3.23 kg
- Compliance: Meets EMC and safety standards (IEC 61326-1, ANSI/UL 61010-1)
Buy the Buy Keysight DSOX1202G Oscilloscope Part Number DSOX1202G Online
Purchase the Keysight DSOX1202G online and experience professional-quality measurements with a 70 MHz bandwidth, dual channels, built-in 20 MHz function generator, high-speed waveform capture at 200,000 waveforms per second, and comprehensive software analysis, including serial protocol decoding. Its intuitive interface, built-in help, and flexible connectivity options make it ideal for precise testing, troubleshooting, and educational purposes. Get reliable performance and expert support today—order now for quick delivery and optimal testing results.
Get Keysight DSOX1202G today—compact 70 MHz oscilloscope with advanced analysis and built-in function generator for precise testing.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1202G?
You can click on the BUY or RFQ button to purchase DSOX1202G from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1202G?
You can download the DSOX1202G datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1202G?
KEYSIGHT TECHNOLOGIES
