KEYSIGHT TECHNOLOGIES 8491A050 Coaxial Attenuator
The 8491A/050 coaxial fixed attenuator offers precise attenuation with a flat frequency response and low VSWR across a broad frequency range. Equipped with Type-N connectors and providing 50 dB of attenuation, this attenuator has been swept-frequency tested to ensure compliance with specifications at all frequencies. Calibration points are indicated on a nameplate chart attached to each unit, ensuring accurate performance. Its frequency response spans from DC to 12.4 GHz, with a maximum SWR of 1.2 from DC to 4 GHz and 1.3 from 4 GHz to 12.4 GHz.
KEYSIGHT TECHNOLOGIES 8491A050 Coaxial Attenuator Specifications:
- Frequency Range: DC to 12.4 GHz
- Attenuation: 50 dB
- Max SWR: 1.2 from DC to 4 GHz, 1.3 from 4 GHz to 12.4 GHz
- Connectors: Type-N female
- Dimensions: 67 mm x 21 mm (approximate)
- Weight: 110 g
- Temperature Stability: 0.0002 dB/dB/°C
- Maximum Input Power: 2W average
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -55°C to +85°C
- Humidity: <95% relative at 40°C
- Altitude: <4600 meters (operating)

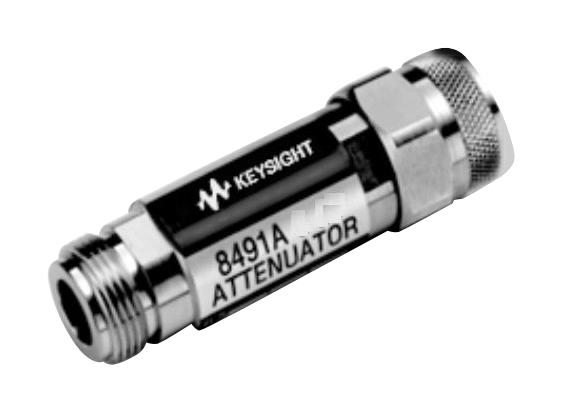

Buy the Buy Keysight 8491A050 Part Number 8491A050 Online
Enhance your RF measurement accuracy with the Keysight coaxial attenuator. Featuring a 50 dB attenuation, flat frequency response from DC to 12.4 GHz, low SWR of 1.2 to 4 GHz and 1.3 beyond, along with Type-N connectors for reliable connections. Fully swept-frequency tested to meet rigorous standards, ensuring dependable performance across all frequencies, this model is ideal for laboratory calibration, system testing, and RF power reduction. Order online now for fast delivery and precise results.
Get Keysight 8491A050 today—built for precision and long-lasting durability in RF and microwave testing.
