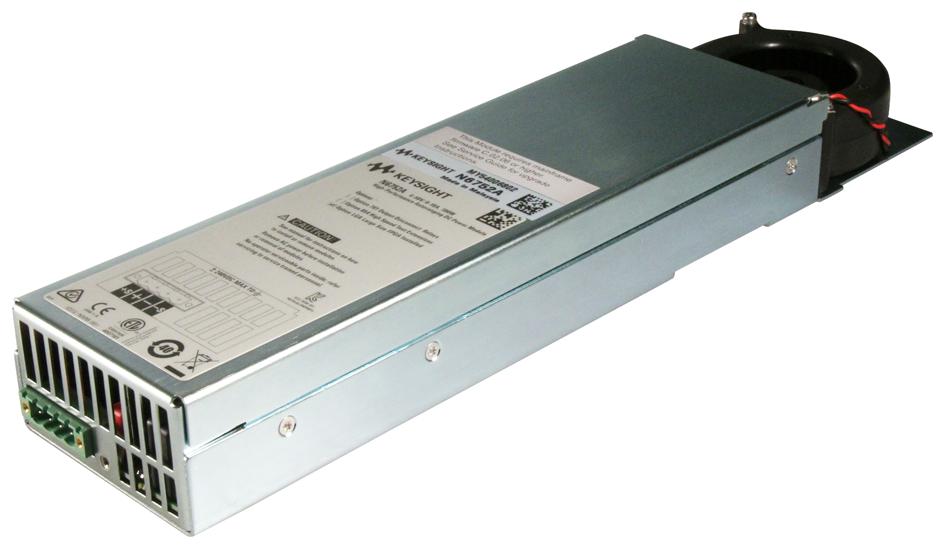

KEYSIGHT TECHNOLOGIES N6752A DC Power Module
The Keysight N6752A is a 50V, 10A, 100W basic DC power module ideal for automated test systems in R&D, design validation, and manufacturing. It features programmable voltage and current, built-in measurement, and safety protections. Its compact design allows up to four modules within a 1U rack, providing flexibility to customize power levels for specific testing requirements. The module supports high-speed command processing, fast output response, and multiple connectivity options including GPIB, LAN, and USB. Fully compliant with LXI Class C, it is suitable for test automation, power management, and applications requiring reliable, basic DC power sources.
KEYSIGHT TECHNOLOGIES N6752A DC Power Module Specifications:
- Voltage Range: 50 V
- Current Range: 10 A
- Power Rating: 100 W
- Measurement Accuracy Voltage: 0.1% + 20 mV
- Measurement Accuracy Current: 0.15% + 20 mA
- Ripple & Noise Voltage (p-p/rms): 20 mV/2 mV
- Protection Features: Over-voltage, over-current, over-temperature
- Communication Interfaces: GPIB, LAN, USB 2.0
- Compliance: LXI Class C
- Size: Occupies 1 module slot in 1U rack, length approximately 17 inches
- Operating Environment: Indoor use, 0°C to 55°C, humidity up to 95%, altitude up to 2000 meters
- Rack Mount Kit: Optional N6708A available for rack mounting
- Dimensions: 44.45 mm / 1.75 in. height, 432.5 mm / 17.03 in. width, 585.6 mm / 23.06 in. depth
Buy the Buy Keysight N6752A Power Module Part Number N6752A Online
Enhance your testing setup with the Keysight N6752A power module, offering 50V, 10A, and 100W output with programmable voltage and current control. Its built-in measurement capabilities, fast command processing, and compact design make it ideal for R&D, calibration, and manufacturing applications. Easily integrate via GPIB, LAN, or USB interfaces, and enjoy reliable, multi-protection features ensuring device safety. Optimize your test system’s performance and efficiency with this versatile, accurate, and space-saving power solution available for purchase online today.
Get Keysight N6752A today—compact, flexible, and high-performance power module perfect for automated test and power management.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6752A?
You can click on the BUY or RFQ button to purchase N6752A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6752A?
You can download the N6752A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6752A?
KEYSIGHT TECHNOLOGIES
