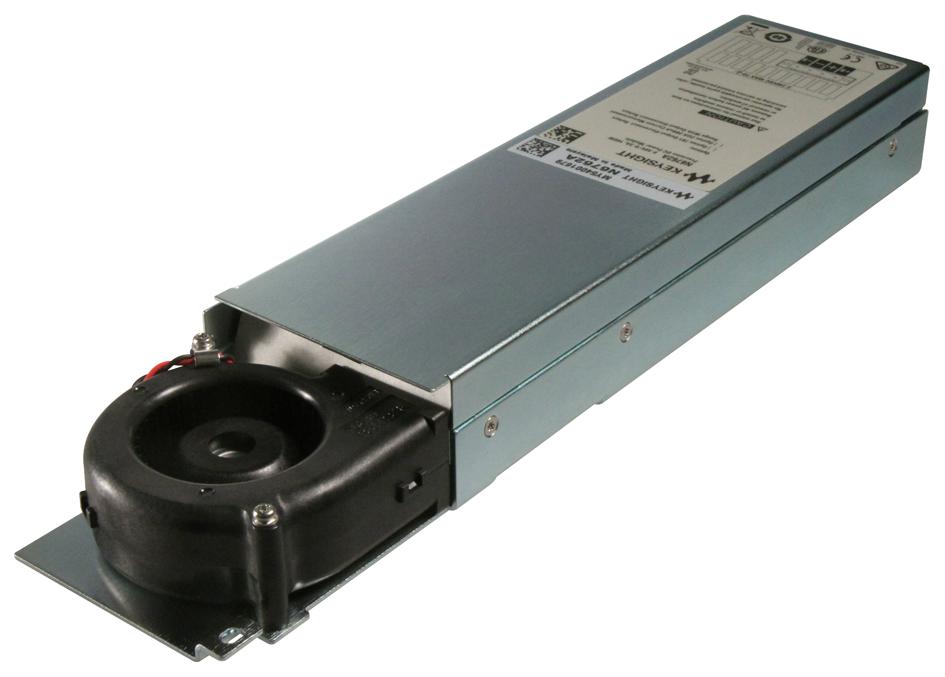

KEYSIGHT TECHNOLOGIES N6762A Precision Power Module
The Keysight N6762A is a compact 50V, 3A, 100W basic DC power supply module that offers programmable voltage and current, along with measurement and protection features. Suitable for automated test equipment in R&D, design validation, and manufacturing, it features up to four outputs in a 1U rack space. The modular design allows for flexible customization to match specific power and performance needs, making it ideal for critical testing applications and basic DC power requirements. It provides fast command processing and output response times to improve throughput. Connectivity options include GPIB, LAN, and USB, and it complies with LXI Class C standards, suitable for test, measurement, and power management.
KEYSIGHT TECHNOLOGIES N6762A Precision Power Module Specifications:
- Output Voltage: 50 V
- Output Current: 3 A
- Power Rating: 100 W
- Measurement Accuracy: 0.1% + 20 mV (voltage), 0.15% + 20 mA (current)
- Ripple & Noise: 12 mV p-p / 2 mV rms
- Programming Speed: Fast command processing for high throughput
- Connectivity: GPIB, LAN, USB
- Standards: Fully compliant with LXI Class C
- Dimensions: 44.45 mm / 1.75 in. height, width 432.5 mm / 17.03 in., depth 585.6 mm / 23.06 in.
- Input Voltage: Universal 100-240 VAC, 50/60/400 Hz
- Max Power Consumption: Approx. 100 W
Buy the Buy Keysight N6762A Power Module Part Number N6762A Online
Order the Keysight N6762A today—designed for precision and reliability with programmable voltage and current, fast measurement, and protective features. Its compact size fits into standard racks, making it suitable for R&D, manufacturing, and design validation. Equipped with GPIB, LAN, and USB connectivity and LXI Class C compliance, this power module simplifies integration into automated test systems. Its high accuracy and fast command processing ensure efficient throughput, whether used for critical testing, power management, or automation tasks. Available now for quick online purchase.
Get Keysight N6762A today—compact precision power supply with programmable outputs, measurements, and fast response for reliable testing and power management.
