KEYSIGHT TECHNOLOGIES N6781A Battery Drain SMU
The Keysight N6781A is a specialized source/measure unit designed primarily for battery drain analysis. It accurately emulates batteries with programmable internal resistance and provides seamless measurement ranging from nA to A, facilitating comprehensive power profiling of portable devices such as e-readers, smartphones, and medical implants. Featuring glitch-free operation, two-quadrant current and voltage sourcing, four current measurement ranges, fast modulation up to 100 kHz, and high-speed digitizers, it enables precise measurements of device power consumption. When used with 14585A software, it offers advanced analysis, including statistical power profiling, making it ideal for R&D and testing battery-powered electronics.
KEYSIGHT TECHNOLOGIES N6781A Battery Drain SMU Specifications:
- Voltage Output Range: ±20 V, ±15 V, ±10 V, ±6 V
- Current Ranges: 3 A, 1 A, 300 mA, 100 mA, 10 mA
- Power: 20 W
- Measurement Resolution: Effective vertical resolution of ~28 bits with seamless measurement ranging
- Frequency Range: DC to 100 kHz for modulation and waveform generation
- Ripple & Noise (CV, 20 Hz - 20 MHz): 12 mV peak-to-peak, 1.2 mV rms
- Transient Response Time: <10 ps rise time, <35 ps recovery
- Output Resistance: Programmable to emulate battery internal resistance
- Operation Modes: Two-quadrant, glitch-free sources, and four current measurement ranges
- Digitizer Sampling Rate: Approximately 200 kHz (every ~5 μs)
- Control Software: 14585A for advanced power analysis
- Measurement Accuracy: Voltage 0.025% + 1.2 mV, Current 0.025% + 10 nA (varies by range)
- Output Ripple & Noise: 15 mV (peak-to-peak), 1.5 mV rms
- Additional Features: Auxiliary voltage measurement, seamless range detection

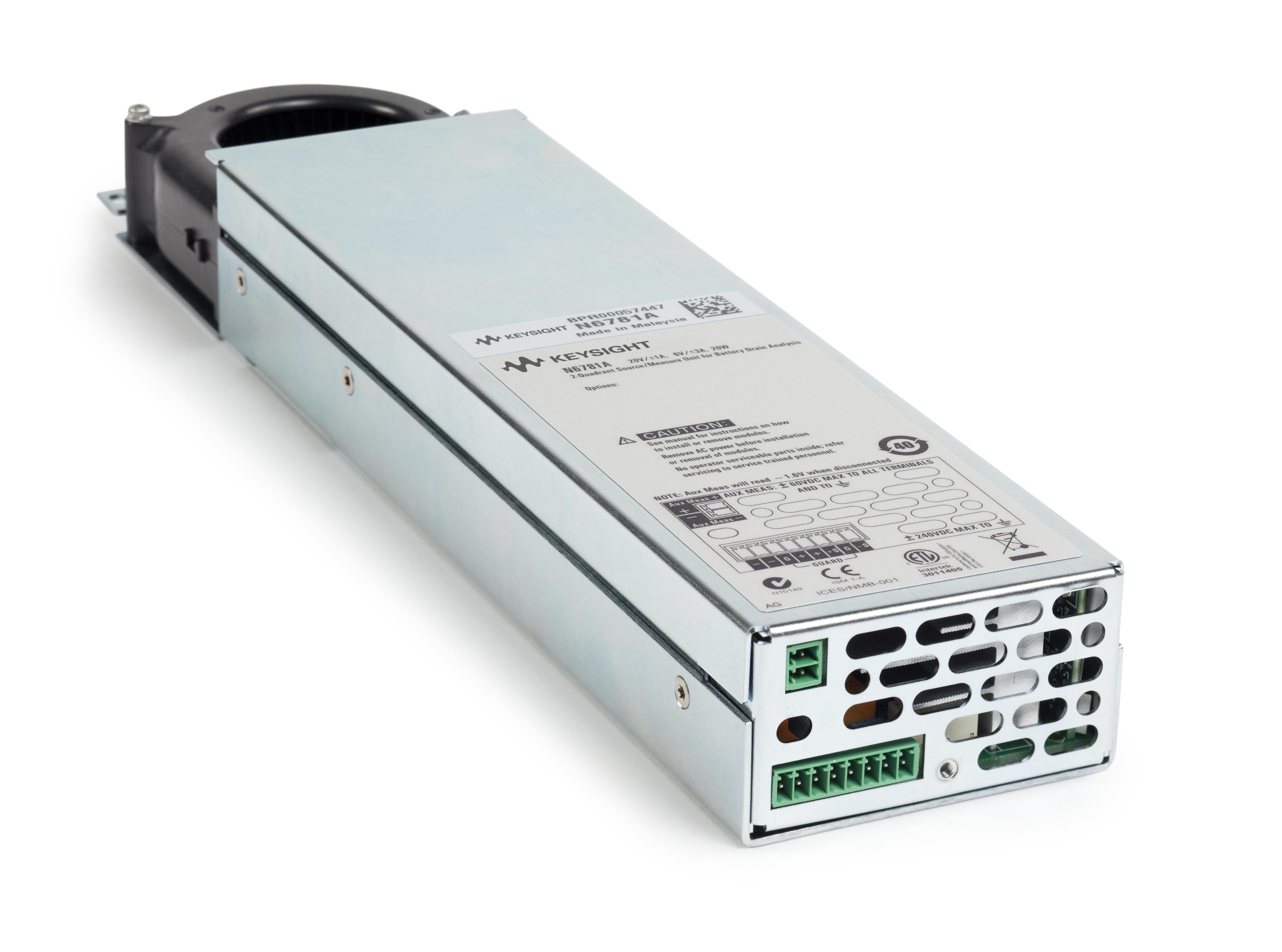

Buy the Buy Keysight N6781A Part Number N6781A Online
Discover the Keysight N6781A battery drain source/measure unit that offers seamless current measurement, programmable internal resistance, and high-speed digitization. Paired with 14585A software, it provides advanced insights into power consumption, ideal for testing portable devices like smartphones, e-book readers, and medical implants. Its glitch-free operation ensures safety during voltage and current range changes, while fast modulation up to 100 kHz facilitates stimulus and load testing. Perfect for R&D, design validation, and troubleshooting of battery-powered electronics, delivering precise and reliable measurements for your development needs.
Buy Keysight N6781A now and experience unrivaled battery drain analysis with seamless measurement ranging and advanced power profiling features.
