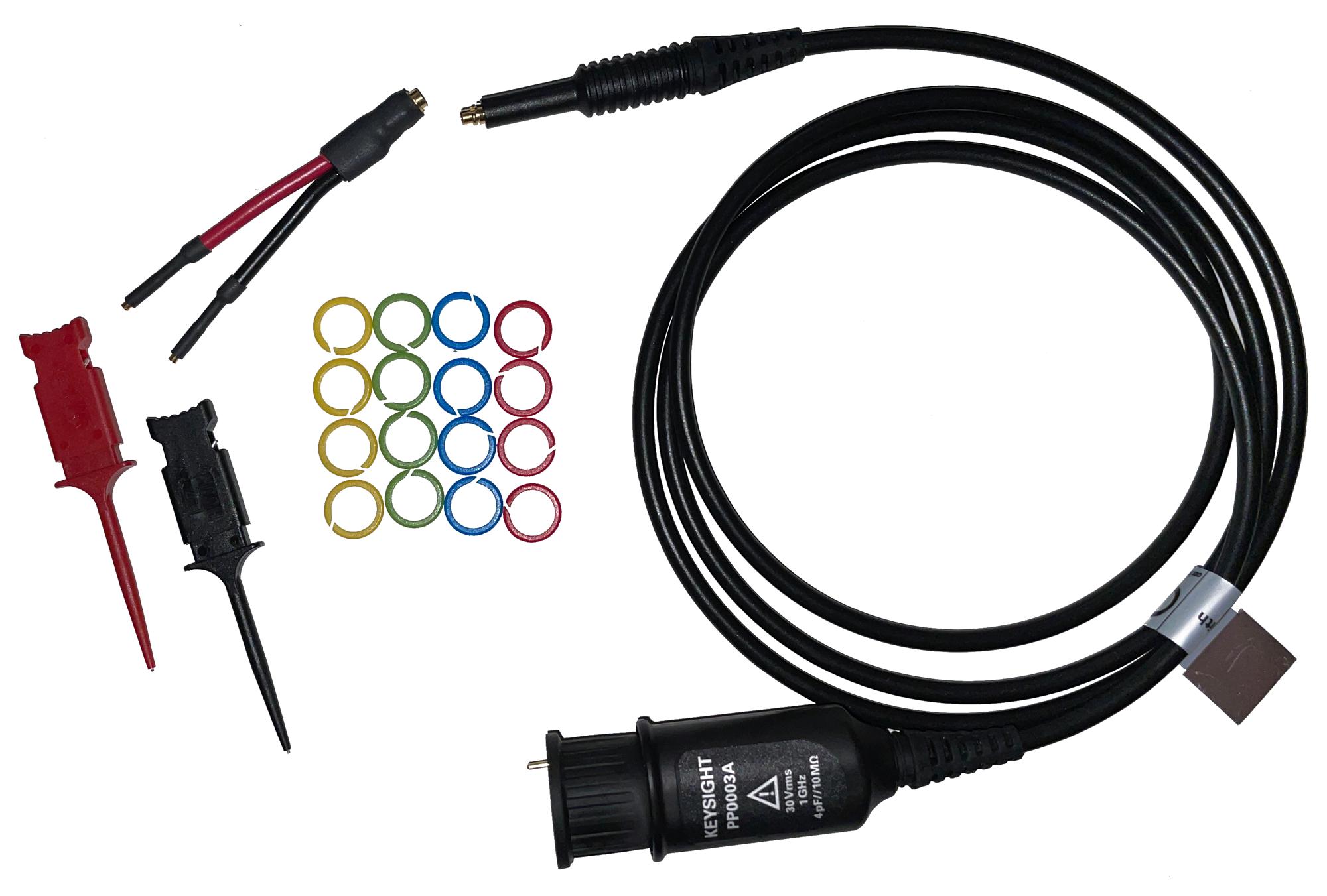

KEYSIGHT TECHNOLOGIES PP0003A Passive Probe
The PP0003A is Keysight's first MMCX-compatible passive probe, offering up to 1 GHz bandwidth with less than 4 pF capacitance. It combines passive probe ease with active probe-like performance, featuring automatic configuration via the AutoProbe I interface for simplified setup. Designed for InfiniiVision and Infiniium oscilloscopes with AutoProbe I, it includes a 5 mm tip, rigid tip, and variable attenuation. With a 30 Vrms CAT II input voltage and up to 42.4 V peak transient overvoltage, it provides high input impedance and flexibility for precise measurements of small or delicate electronic devices.
KEYSIGHT TECHNOLOGIES PP0003A Passive Probe Specifications:
- Bandwidth: 1 GHz
- Capacitance: less than 4 pF
- Input Voltage: 30 V rms CAT II
- Peak Transient Voltage: 42.4 V
- Input Impedance: 10 MΩ at low frequencies
- Cable Length: 1.3 meters
- Connector: MMCX
- Tip Size: 5 mm, rigid tip
- Attenuation: variable, automatically adjusted
- Compatibility: InfiniiVision and Infiniium oscilloscopes with AutoProbe I
- Design: Small, compact probe for small/delicate devices
Buy the Keysight Series Passive Probe: PP0003A
Purchase the Keysight PP0003A passive probe online today and enjoy high-performance measurements with automatic attenuation, ultra-low capacitance, compact design, and compatibility with advanced oscilloscopes. Perfect for precise testing of small or delicate electronic devices, this probe ensures reliable and accurate measurements with user-friendly features like the AutoProbe interface. Order now to elevate your testing setup with a rugged, MMCX-compatible passive probe that simplifies complex measurements and enhances test efficiency.
Buy Keysight PP0003A now and experience unmatched reliability and high performance in electronic testing with easy auto configuration.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES PP0003A?
You can click on the BUY or RFQ button to purchase PP0003A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part PP0003A?
You can download the PP0003A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of PP0003A?
KEYSIGHT TECHNOLOGIES
