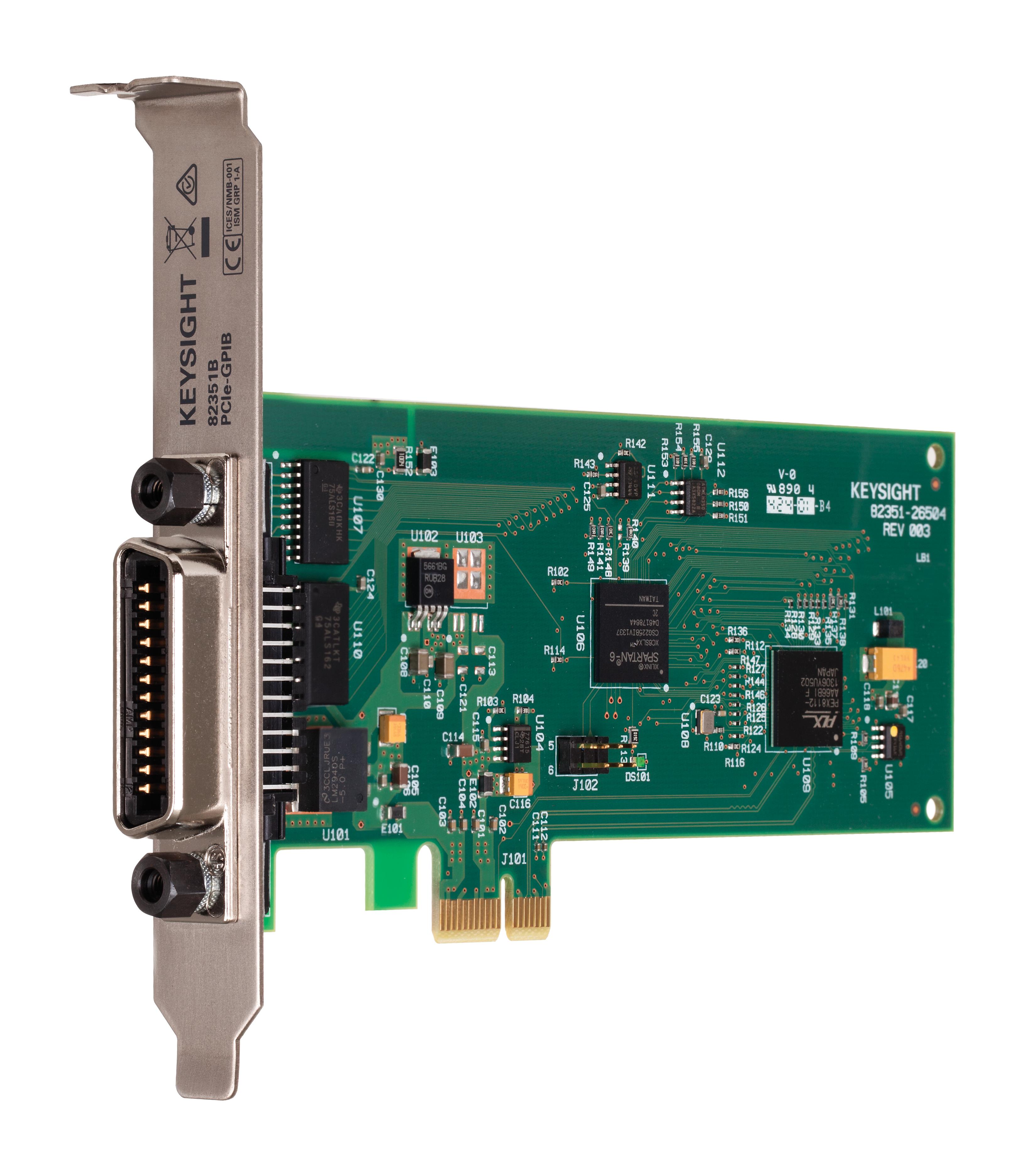

KEYSIGHT TECHNOLOGIES 82351B High-Performance PCIe-GPIB Card
The 82351B is a high-performance PCIe-GPIB Interface Card that delivers exceptional speed and reliability, making it suitable for various computer platforms and automation applications. It is fully backward compatible with PCI-configured software and code, eliminating the need for reconfiguration. The card features plug-and-play setup, support for low-profile PC configurations through bracket changes, and a fast data transfer rate of 1.4 MB/s, ideal for high-bandwidth applications. Its 3.3V signaling level ensures lower power consumption. The device is highly flexible with up-plugging capability and includes standard and low-profile brackets for versatile installation. It is commonly used in industrial automation, signal processing, and control systems.
KEYSIGHT TECHNOLOGIES 82351B High-Performance PCIe-GPIB Card Specifications:
- Interface: PCIe rev. 1.0a, IEEE 488.1/2 compatible
- Maximum data rate: 1.4 MB/s
- Transfer rate: 14 MB/s
- Power: +3.3 V PCI bus power
- Connectors: Standard 24-pin IEEE-488 (GPIB), 24-pin PCIe
- Supported standards: PCI rev 2.0a, IEEE 488
- Form factor: Standard and low-profile brackets
- Dimensions: 156 mm (L) x 121 mm (W) x 21.6 mm (H)
- Weight: 74 grams
- Supported operating environment: 0°C to 60°C
- Compliance: IEC 61326-1:2005, EN61326-1:2006
- Warranty: One year
Buy the Buy Keysight 82351B PCIe-GPIB Interface Card Online
Enhance your automation setup with the Keysight 82351B PCIe-GPIB Interface Card, offering fast data transfer of 1.4 MB/s, backward compatibility with PCI software, and versatile low-profile installation options. Ideal for high-bandwidth test applications, signal processing, and industrial control systems, this plug-and-play card ensures seamless integration into your computer system. Its low power consumption and robust design make it suitable for demanding environments, providing reliable and efficient GPIB communication for various measurement and automation needs.
Buy Keysight 82351B PCIe-GPIB Interface Card now and experience exceptional speed and reliable GPIB connectivity for demanding automation tasks.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES 82351B?
You can click on the BUY or RFQ button to purchase 82351B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 82351B?
You can download the 82351B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of 82351B?
KEYSIGHT TECHNOLOGIES
