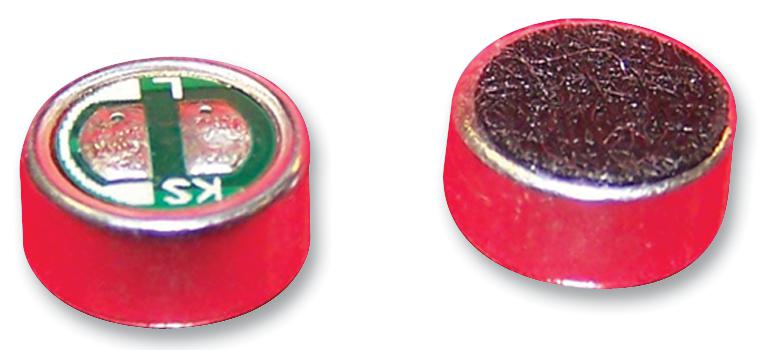

KINGSTATE KECG2742TBLA Omnidirectional Microphone
The KECG2742TBL-A is an omnidirectional electret condenser microphone designed for clear audio capture in various industrial and professional settings. It features a sensitivity of 0dB=1V/Pa at 1KHz, with an output impedance of 2.2KΩ and a maximum operating voltage of 10V DC. The microphone operates within a temperature range of -20°C to +70°C and weighs approximately 0.2 grams. Constructed from aluminum with RoHS compliance, it offers durability for industrial applications, with a frequency response from 20Hz to 20kHz, ideal for high-fidelity sound transmission.
KINGSTATE KECG2742TBLA Omnidirectional Microphone Specifications:
- Directivity: Omnidirectional
- Sensitivity: 0dB=1V/Pa at 1KHz
- Output Impedance: 2.2KΩ at 1KHz
- Max Operating Voltage: 10V DC
- Sensitivity Reduction: within 3dB at 2.0V DC
- Frequency Response: 20Hz to 20,000Hz
- Maximum Current Consumption: 0.5mA at 2.0V DC
- Signal to Noise Ratio: 60dB A-weighted
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -20°C to +70°C
- Dimensions: approximately 6mm x 27mm
- Weight: 0.20 grams
- Material: Aluminum (AL)
- Protection Regulation: RoHS compliant
Buy the Kingstate KECG2742TBL-A – Reliable Omnidirectional Microphone for Industrial Applications
Order the Kingstate omnidirectional microphone KECG2742TBL-A online today to enhance your sound recording, communication, or industrial monitoring systems. Designed for durability, it features a wide frequency response from 20Hz to 20kHz, low impedance of 2.2KΩ, and a sensitivity of 0dB=1V/Pa at 1KHz. Suitable for professional applications, it operates within -20°C to +70°C, weighs only 0.2 grams, and complies with RoHS regulations. Purchase now for reliable, high-quality audio performance in demanding environments.
Get Kingstate KECG2742TBL-A today—built for precision and long-lasting durability in audio capture systems.
Frequently Asked Questions
Where can I buy KINGSTATE KECG2742TBLA?
You can click on the BUY or RFQ button to purchase KECG2742TBLA from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KECG2742TBLA?
You can download the KECG2742TBLA datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KECG2742TBLA?
KINGSTATE
