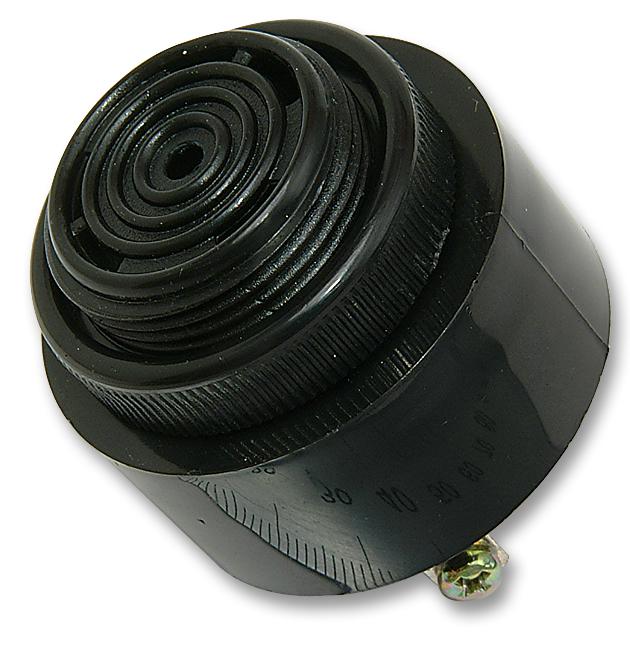

KINGSTATE KPEG653SAN Piezo Signal Transducer
The piezo audio indicator is a compact, high-performance sound signal device designed for industrial applications. Featuring a resonant frequency of 28.405 KHz, it operates over a voltage range of 6 to 28 V AC/DC, with a maximum current consumption of 10 mA at 12 VDC. It produces a minimum sound pressure level of 77 dB at 30cm/12 VDC, with slow pulse tone at 12 VDC. Made from UL-94 V-0 rated black ABS material and tin-plated terminals, it withstands temperatures from -30°C to +85°C and is RoHS compliant. Its dimensions are approximately 42.5mm x 33mm, weighing 370 grams, suitable for various signaling applications with reliable performance and environmental durability.
KINGSTATE KPEG653SAN Piezo Signal Transducer Specifications:
- Resonant frequency: 28.405 KHz
- Operating voltage range: 6~28 AC/DC
- Current consumption: Max 10 mA at 12 VDC
- Sound pressure level: Min 77 dB at 30cm/12 VDC
- Rated Voltage: 12 VDC
- Tone: Slow pulse at 1.2Hz ± 20%
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +98°C
- Dimensions: 42.5 mm x 33.0 mm
- Weight: 370 grams
- Material: ABS UL-94 V-0 (Black), Tin-plated terminals
- Protection: RoHS compliant
- Certifications: UL Listed
- Mechanical endurance: Solderability, vibration, shock, and environmental resistance tested
Buy the Kingstate KPEG653SAN – Reliable Piezo Audio Indicator for Industrial Applications
Purchase the Kingstate piezo audio indicator online today for robust signaling capabilities in industrial settings. Featuring a resonant frequency of 28.405 KHz, operating voltage of 6 to 28 V, and a sound level of 77 dB, it offers durability with UL-94 V-0 rated ABS housing and tin-plated terminals. Suitable for environments from -30°C to +85°C, it ensures consistent performance. Easy to install and compliant with RoHS standards, this compact, high-quality indicator enhances your machinery’s alert and warning systems with reliability and long-lasting operation.
Get Kingstate KPEG653SAN today—built for precision, durability, and reliable signaling in challenging industrial environments.
Frequently Asked Questions
Where can I buy KINGSTATE KPEG653SAN?
You can click on the BUY or RFQ button to purchase KPEG653SAN from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KPEG653SAN?
You can download the KPEG653SAN datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KPEG653SAN?
KINGSTATE
