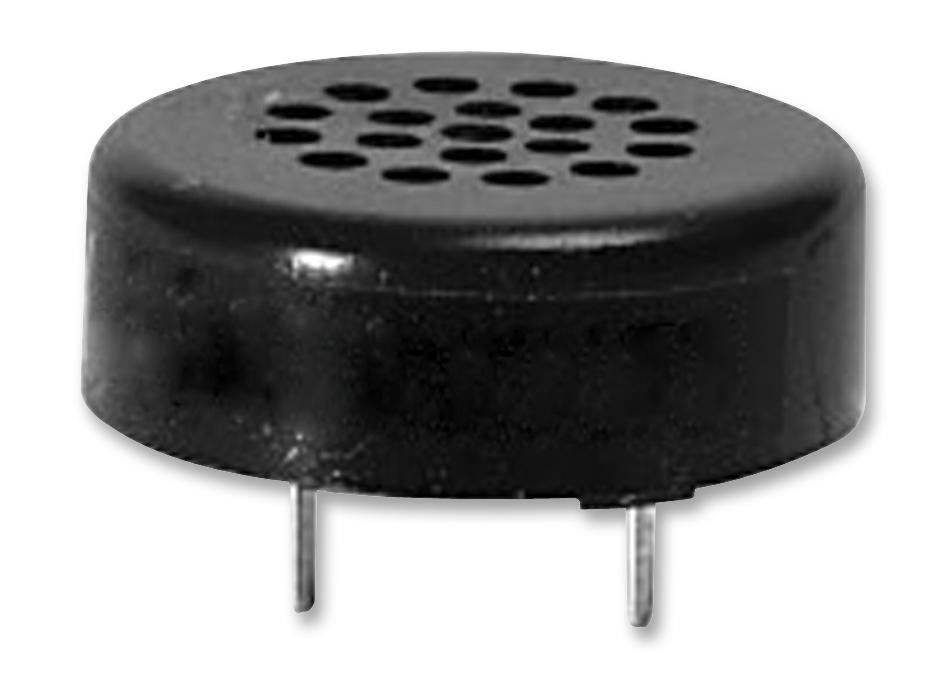

KINGSTATE KSSG2308 Speaker Transducer
The KSSG2308 speaker transducer features a compact size of 23.0 x 15.0 mm and delivers an 88 dB sound pressure level with a frequency range up to 6 kHz. It is designed with an 8-ohm impedance, a magnet flux density of Gauss, and a durable ABS UL-94 1/16 inch black casing. Operating temperature ranges from -20°C to +88°C, and it complies with RoHS environmental standards. Suitable for audio applications, it provides reliable performance with stable resonance and excellent environmental resistance.
KINGSTATE KSSG2308 Speaker Transducer Specifications:
- Dimension: 23.0 x 15.0 mm
- Rated Power: 0.1W
- Max Power: 0.15W
- Impedance: 8 Ohm ±15% at 2.0KHz
- Resonance Frequency: 1500Hz ±20% at 1.0V
- Output SPL: 88dB ±3dB at 0.1W/10cm, 77dB ±3dB at 1W/1m
- Frequency Range: Up to 6KHz
- Frequency Response: 200Hz–6KHz
- Material: ABS UL-94 1/16 inch black
- Magnet Flux Density: Gauss (approximate value not specified)
- Operating Temperature: -20°C to +88°C
- Environmental Compliance: RoHS
- Appearance: Rectangular size approximately 60.8 x 9.08 mm
Buy the Buy Kingstate Speaker Transducer Part Number KSSG2308 Online
Purchase the Kingstate KSSG2308 speaker transducer online today to enhance your audio systems with reliable, durable, and high-performance components. This compact speaker is designed with an 8-ohm impedance, delivers an impressive 88dB SPL, and covers a frequency range up to 6KHz, making it ideal for various sound applications. Made from durable ABS material and RoHS compliant, it withstands environmental stress while providing stable, clear sound output. Order now for quick delivery and professional-grade audio solutions.
Order your Kingstate Series KSSG2308 speaker transducer today and ensure high-quality audio performance for your projects.
Frequently Asked Questions
Where can I buy KINGSTATE KSSG2308?
You can click on the BUY or RFQ button to purchase KSSG2308 from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KSSG2308?
You can download the KSSG2308 datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KSSG2308?
KINGSTATE
