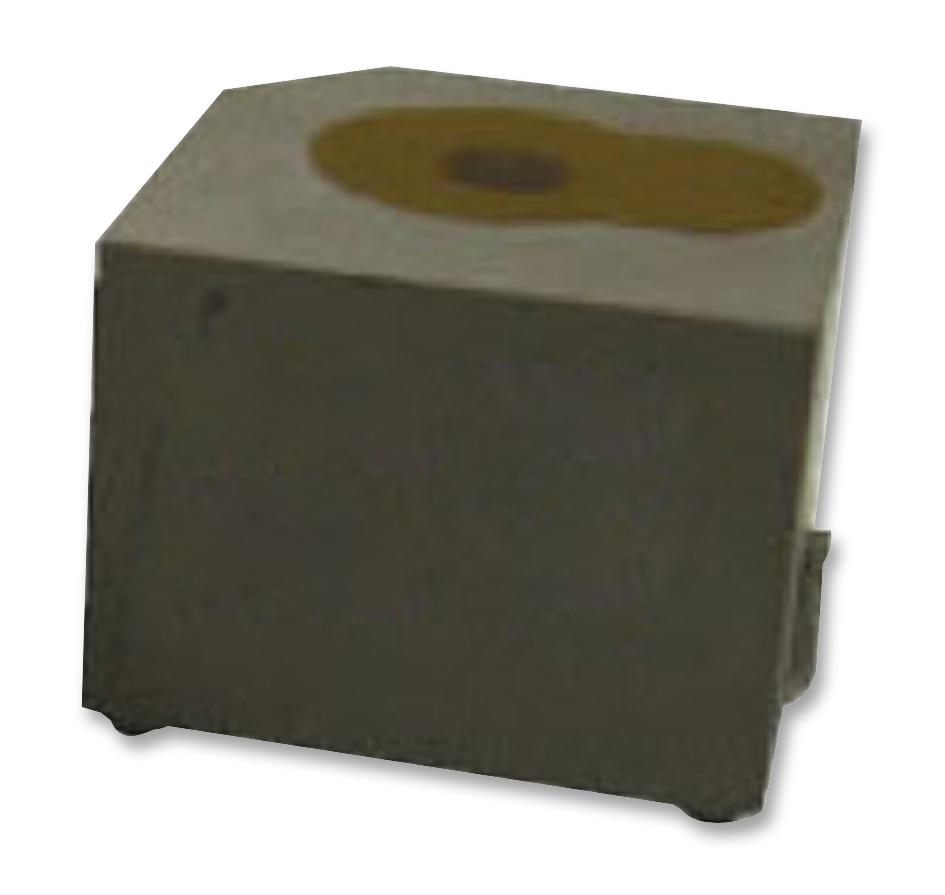

KINGSTATE KTG1205C Magnetic Buzzer
The KTG1205C is a reliable magnetic buzzer designed for various electronic applications. It features a resonant frequency of around 2400Hz, operates within a voltage range of 4.0 to 7.0V, and outputs sound levels of at least 90dBA at 10cm, with typical 94dBA. Constructed from PPS material, it measures 12.8 x 12.8 x 10.0 mm, weighs 2 grams, and complies with RoHS standards. The buzzer withstands operating temperatures from -30°C to +70°C and storage temperatures from -40°C to +85°C, making it suitable for industrial use.
KINGSTATE KTG1205C Magnetic Buzzer Specifications:
- Rated Voltage: 5.0V
- Operating Voltage: 4.0~7.0V
- Mean Current: Max. 30mA
- Sound Output: Min. 90dBA at 10cm (Typical 94dBA)
- Resonant Frequency: 2400 ± 300Hz
- Operating Temp.: -30 ~ +70°C
- Storage Temp.: -40 ~ +85°C
- Dimensions: 12.8 x 12.8 x 10.0 mm
- Weight: 2.0 grams
- Material: PPS(S-206)
- Terminal: SMD type, Sn plated
- Protection Regulation: RoHS
- Storage Life: 6 months at room temp (25°C, 40% humidity)
Buy the Kingstate KTG1205C – Reliable Magnetic Buzzer for Industrial Applications
Experience dependable sound alert solutions with the Kingstate KTG1205C magnetic buzzer. With a resonant frequency of 2400Hz and sound output of at least 90dBA, it is suitable for various industrial and electronic applications. Compact and lightweight, it operates within a voltage range of 4.0 to 7.0V, ensuring reliable performance under diverse temperature conditions from -30°C to +70°C. Made from durable PPS material and RoHS compliant, this buzzer offers longevity, stability, and easy integration for automation systems and critical signaling needs.
Get Kingstate KTG1205C today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy KINGSTATE KTG1205C?
You can click on the BUY or RFQ button to purchase KTG1205C from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KTG1205C?
You can download the KTG1205C datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KTG1205C?
KINGSTATE
