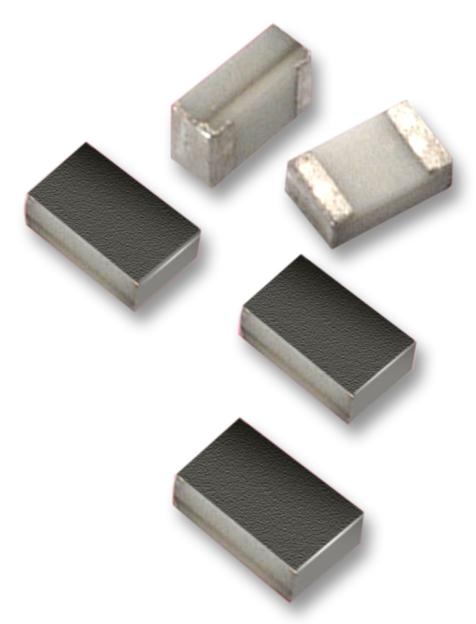

KYOCERA AVX 04023J3R9BBSTR Thin-Film Chip Capacitor
KYOCERA AVX's Accu-P thin-film chip capacitors are engineered for superior performance in RF and microwave circuits. Employing advanced thin-film technology, these capacitors exhibit ultra-low equivalent series resistance (ESR), high Q factor, and exceptional dimensional stability. They are ideal for applications such as cellular communications, radar systems, and matching networks, where precise capacitance and minimal signal loss are critical. The manufacturing process, utilizing class 1000 clean rooms and high-vacuum metal deposition, ensures consistent quality and repeatability. Accu-P capacitors offer a significant advantage over traditional ceramic capacitors due to their improved high-frequency characteristics and tighter tolerances.
KYOCERA AVX 04023J3R9BBSTR Thin-Film Chip Capacitor Specifications:
- Dielectric Material: Silicon Dioxide and Silicon Oxynitride
- Electrode Material: Highly Conductive Metal
- Frequency Range: Up to 40GHz
- ESR: Very Low and Repeatable
- Capacitance Tolerances: Tight
- Dimensional Control: Excellent
- Clean Room Environment: Class 1000
- Line Definition: Below 1μm
- Thickness Control: 100Å (10[-2] μm)
- Applications: ['Cellular Communications', 'Satellite TV', 'GPS', 'Vehicle Location Systems', 'Radar Systems', 'Test & Measurements', "VCO's", 'Matching Networks', 'RF Amplifiers']
- Sizes Available: ['01005', '0201', '0402', '0603', '0805', '1210']
Buy the 04023J3R9BBSTR KYOCERA AVX Thin-Film Chip Capacitor | myMectronic
Securely purchase the KYOCERA AVX 04023J3R9BBSTR capacitor online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX 04023J3R9BBSTR?
You can click on the BUY or RFQ button to purchase 04023J3R9BBSTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 04023J3R9BBSTR?
You can download the 04023J3R9BBSTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 04023J3R9BBSTR?
KYOCERA AVX
