KYOCERA AVX F971C475MBAHT3 High-Temperature Chip Capacitor
The F97-HTS3 series is a high-reliability, resin-molded chip capacitor designed to withstand temperatures up to 135°C. Qualified under AEC-Q200 standards, these capacitors feature low failure rates and ensure stability in automotive and industrial applications. With a compact size and robust construction, they deliver excellent capacitance stability, low leakage current, and durability under harsh conditions such as damp heat, high temperature, and soldering heat. Ideal for engine control units, transmission systems, and electronic modules requiring high-temperature performance and long-term reliability.
KYOCERA AVX F971C475MBAHT3 High-Temperature Chip Capacitor Specifications:
- Category Temperature Range: -65 to +135°C
- Rated Temperature: +95°C
- Capacitance Tolerance: ±10% at 120Hz
- Leakage Current at 20°C: Not more than 0.01CV or 0.5μA
- Leakage Current at 95°C: Not more than 0.1CV or 5μA
- Leakage Current at 135°C: Not more than 0.125CV or 6.3μA
- Capacitance Change: +15% max at +135°C, +10% at +95°C, -10% at -55°C
- Dimensions vary by case size, e.g., 1206 (3.2 × 1.6 mm), with thickness approx. 0.047 inches
- Voltage Range available: 6.3V, 10V, 16V, 20V, 25V, 35V
- Category: Resin-molded chip, high reliability, low ESR, suitable for automotive and industrial use
- Qualified according to AEC-Q200, failure rate level 0.5%/1000 hrs
- Durability under damp heat, thermal cycling, and soldering heat testing
- Compliance with RoHS standards, UL, and CSA certifications

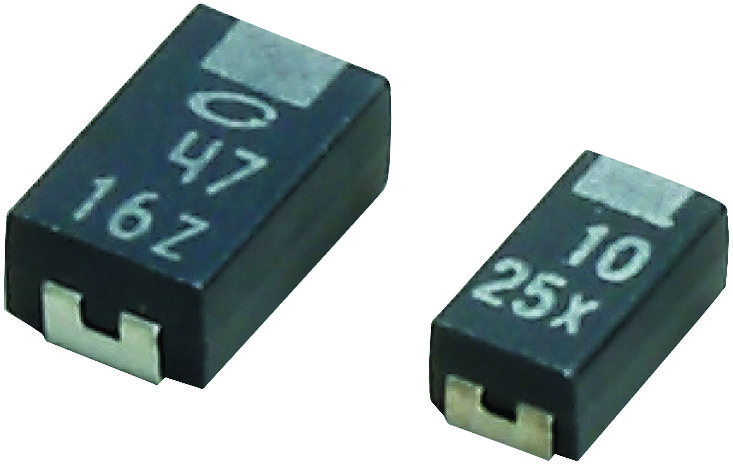

Buy the Buy AVX F97-HTS3 Part Number F971C475MBAHT3 Online
Experience superior reliability with the high-temperature resin-molded chip capacitor. Designed for harsh environments, it supports automotive and industrial electronics at up to 135°C. Compact and durable, it offers low leakage current, stable capacitance, and excellent thermal stability. Perfect for engine control, transmission, and power supply modules, this capacitor ensures long-term performance and safety. Buy online now to enhance your electronic designs with proven high-temperature resilience and quality from trusted sources.
Buy AVX F971C475MBAHT3 now and experience unmatched reliability and high-temperature performance for your automotive and industrial applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX F971C475MBAHT3?
You can click on the BUY or RFQ button to purchase F971C475MBAHT3 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part F971C475MBAHT3?
You can download the F971C475MBAHT3 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of F971C475MBAHT3?
KYOCERA AVX
