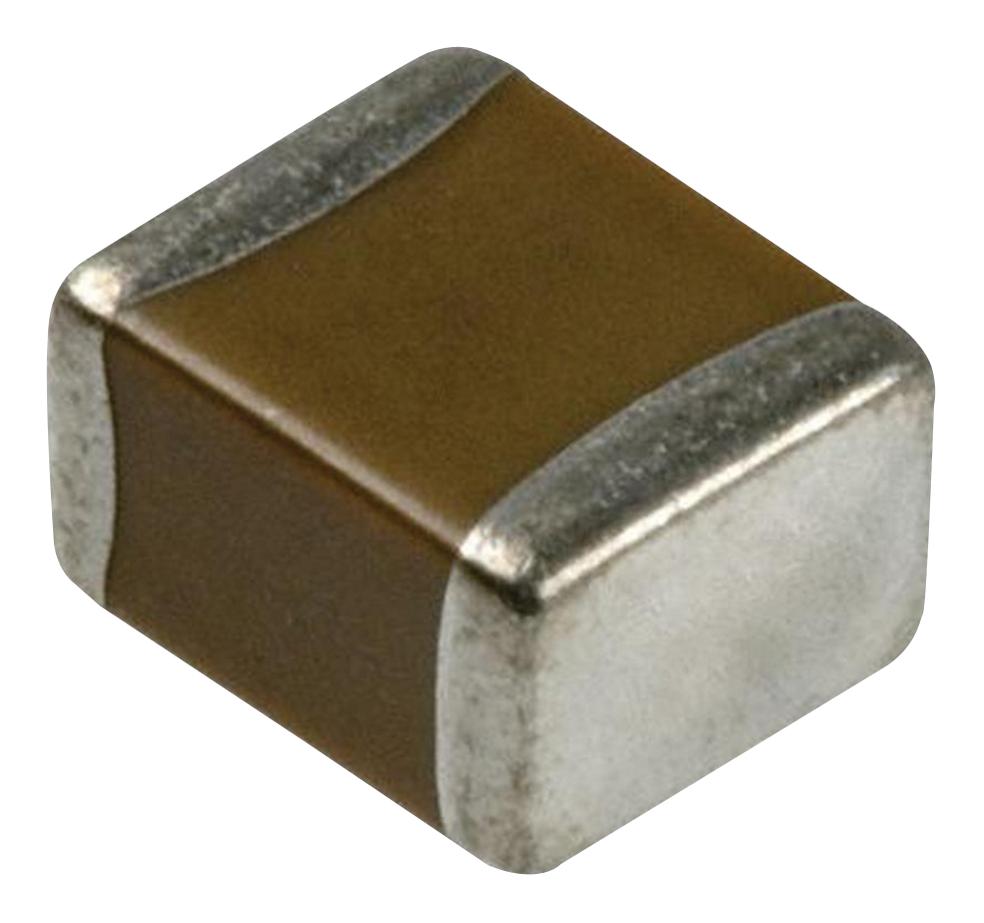

KYOCERA AVX 04025U1R2BAT2A Low ESR Ceramic Capacitors
The Ultra Low ESR U Series COG NPO chip capacitors are designed for applications requiring minimal equivalent series resistance, making them ideal for high-frequency, RF, and microwave circuits. Available in sizes 0402, 0603, 0805, and 1210, these RoHS-compliant capacitors feature precise capacitance values ranging from 0.2 pF to 1000 pF, with excellent temperature stability from -55°C to +125°C. They meet MIL specifications with high insulation resistance and low ESR, suitable for demanding electronic and communication systems requiring reliable performance.
KYOCERA AVX 04025U1R2BAT2A Low ESR Ceramic Capacitors Specifications:
- Size: 0402, 0603, 0805, 1210
- Capacitance range: 0.2 pF to 1000 pF @ 1 MHz
- Dielectric: COG (NPO)
- RoHS compliant
- Temperature coefficient: 0+30 ppm/°C (–55°C to +125°C)
- Working Voltage: 250% of rated WVDC, e.g., 100 V for 0402, 200 V for 0805
- Insulation Resistance: 10^9Ω min. @ 25°C, rated WVDC
- ESR: Ultra low, varies by size, typically measured on Boonton 34A equipment
- Equivalent Series Resistance: 1.6 pF to 160 pF (size 0805), 2.4 pF to 1000 pF (size 1210), see performance curve
- Material: Low ESR ceramic dielectric, plated termination
- Maximum Voltage: 50V to 200V depending on size
- Compliance: Meets MIL-C-55681 specifications for high-reliability applications
- Marking: Laser marking with capacitance code and tolerance upon request
Buy the Generic Series U Ultra Low ESR NPO Capacitors: 04025U1R2BAT2A
Order the Ultra Low ESR COG NPO chip capacitors from our online store today. These high-reliability capacitors are ideal for RF and microwave circuits, offering precise capacitance, low ESR, and excellent temperature stability. Suitable for demanding electronic and communication systems, they meet strict MIL specifications and RoHS compliance. Whether you need sizes 0402, 0603, 0805, or 1210, purchase now for fast delivery and the proven performance that ensures your projects' success. Experience quality and consistency with every order.
Buy Generic Series U Ultra Low ESR NPO Capacitors now and experience unmatched reliability and performance in high-frequency applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX 04025U1R2BAT2A?
You can click on the BUY or RFQ button to purchase 04025U1R2BAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 04025U1R2BAT2A?
You can download the 04025U1R2BAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 04025U1R2BAT2A?
KYOCERA AVX
